- Products Status:
- Stock
- Ports:
- ≤ 8
- Transmission Rate:
- 10/100Mbps
- Function:
- POE
- Communication Mode:
- Full-Duplex & Half-Duplex
- Certification:
- CE
- Brand Name:
- KKMOON
- Model Number:
- 613E-PSE-AF
- Switch Type:
- Ethernet
- Package:
- Yes
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
IEEE802.3af RJ45 10/100Mbps Ethernet POE Switch Injector Power over for IP Camera VoIP Phone AP devices 613E-PSE-AF
There are US Plug,EU Plug ,AU Plug and UK Plug four Plugs For your optional .Please leave message to us which Plug you want .Or we will send randomly.Thanks!
Overview:
PoE Injector is also called Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 2 RJ45 ports for single-port PoE injectors, one of which is Ethernet Port for uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output. It is widely used for POE devices power supply, free of power adapter anymore.
Features:
*Single port POE injector for convenient power supply over Ethernet.
*Protection: Wide voltage AC Input. Strong lighting protection, ESD, anti-interference.
*Suitable for POE devices power supply, like IP camera, VoIP phone and wireless AP.
*Simple use, easy to install, superior performance and cost-effective.
*Good conversion effect for power supply and date transmission.
Specifications:
Standard: IEEE802.3af
Power Input: AC100V-AC240V 50/60Hz
Power Output: 48V
Power Consumption: 15.4W
Network Port: 1 RJ45 10/100Mbps
Transmission Distance: 100m
Transmission Media: Cat5/5e/6 Cable standard network cable

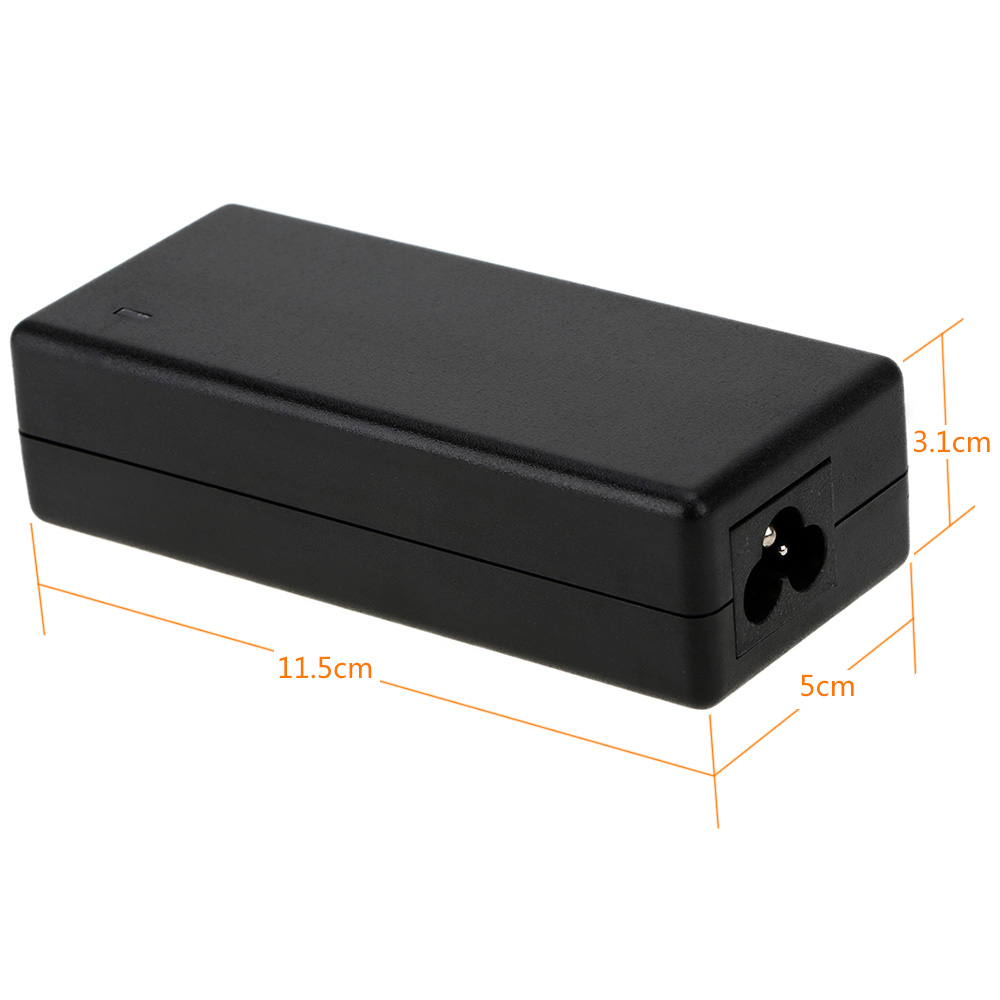

Dimensions: Approx. 4.53*1.97*1.22in / 11.5*5*3.1cm
Package Information:
Package Size: Approx. 8.27*5.12*1.77in / 21*13*4.5cm
Package Weight: Approx. 13.12oz / 372g
Package List:
1 * af POE Injector
1 * US Power Cable (EU/US/UK/AU plug optional)
1 * User Manual
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn"t receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
