- Products Status:
- Stock
- Ports:
- ≤ 8
- Transmission Rate:
- 10/100/1000Mbps
- Function:
- POE
- Communication Mode:
- Full-Duplex & Half-Duplex
- Certification:
- CE
- Switch Capacity:
- 30W
- Brand Name:
- KKMOON
- Model Number:
- 1010POE-AT
- VLAN:
- Ethernet Switch
- Number of Interfaces:
- 10
- Switch Type:
- Ethernet
- Package:
- Yes
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen

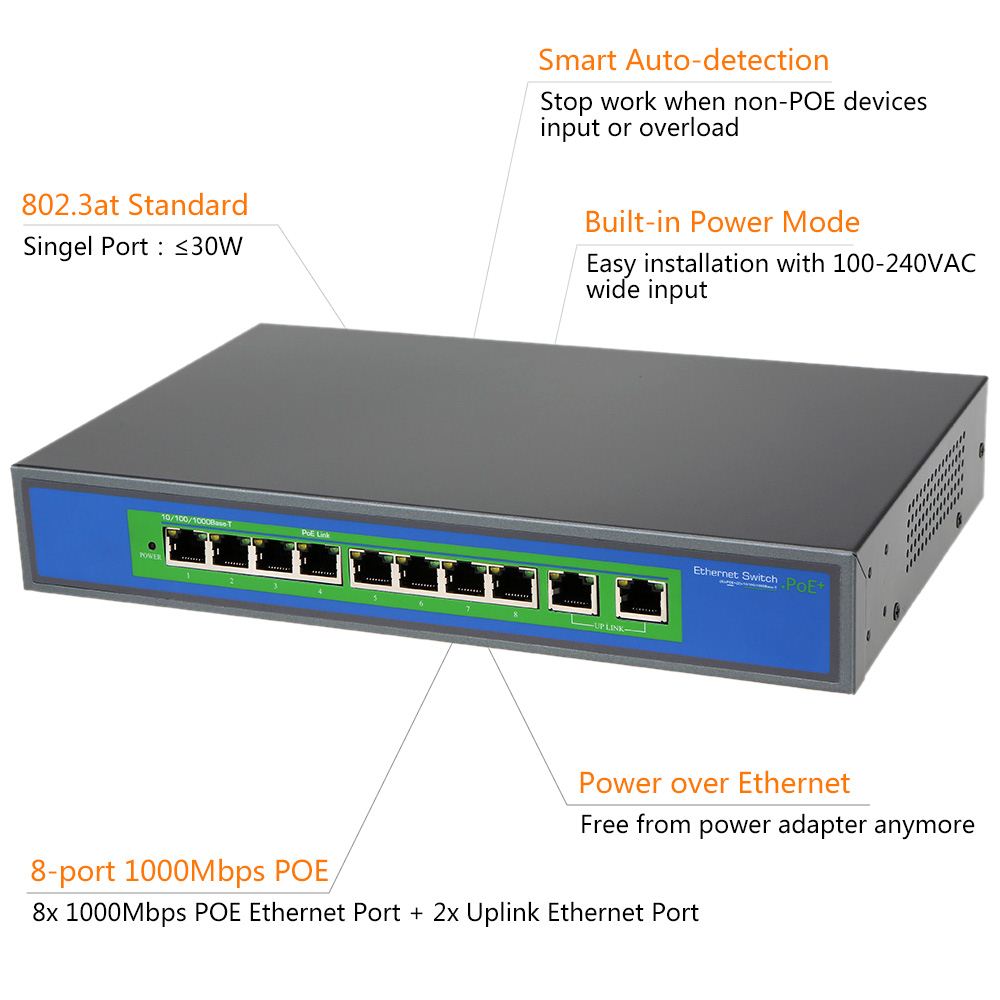

IEEE802.3at 8 Port 1000Mbps POE Switch Network Gigabit Switch Power Over Ethernet for IP Camera VoIP Phone AP devices 1010POE-AT
There are US Plug,EU Plug ,AU Plug and UK Plug For your optional .Please leave message to us which Plug you want .Or we will send randomly.Thanks
Overview:
This PoE Switch provides a network point for power supply and data transmission. All the 10 Ethernet ports can be connected with 10/100/1000Mbps quickly, and the uplink port is Ethernet interface, among which 1-8 port can provide standard IEEE 802.3at power supply. Due to the advanced self-sensing algorithm supply power for IEEE802at terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected.
Features:
*Can supply power to network surveillance cameras that with PoE function;
*10x 10/100/1000Mbps auto-sensing RJ45 ports, 8x 10/100/1000MbpsPoE ports, 2x uplink port;
*Supports port auto-flip (Auto MDI/ MDIX);
*Maximum power of single PoE port: 30W;
*Adopts store-and-forward architecture;
*IEEE 802.3at power on up to 8 ports;
*Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
Specifications:
Standard: IEEE802.3at
Input Voltage: AC100-240V
Power Consumption: 240W
PoE Power Consumption: at30W
Network Port: 1-8 port: 10/100/1000Mbps POE Ethernet port; Uplink port: 10/100/1000Mbps Ethernet port
Transmission Media: Cat5/5e/6 Cable standard network cable
Transmission Distance: 100m
Maximum Frame Size: 1536 Bytes
MTBF: >30000h
Dimensions: Approx. 11.22*7.09*1.77in / 28.5*18*4.5cm
Package Information:
Package Size: Approx. 14.17*10.63*3.35in / 36*27*8.5cm
Package Weight: Approx. 4.98lb / 2260g

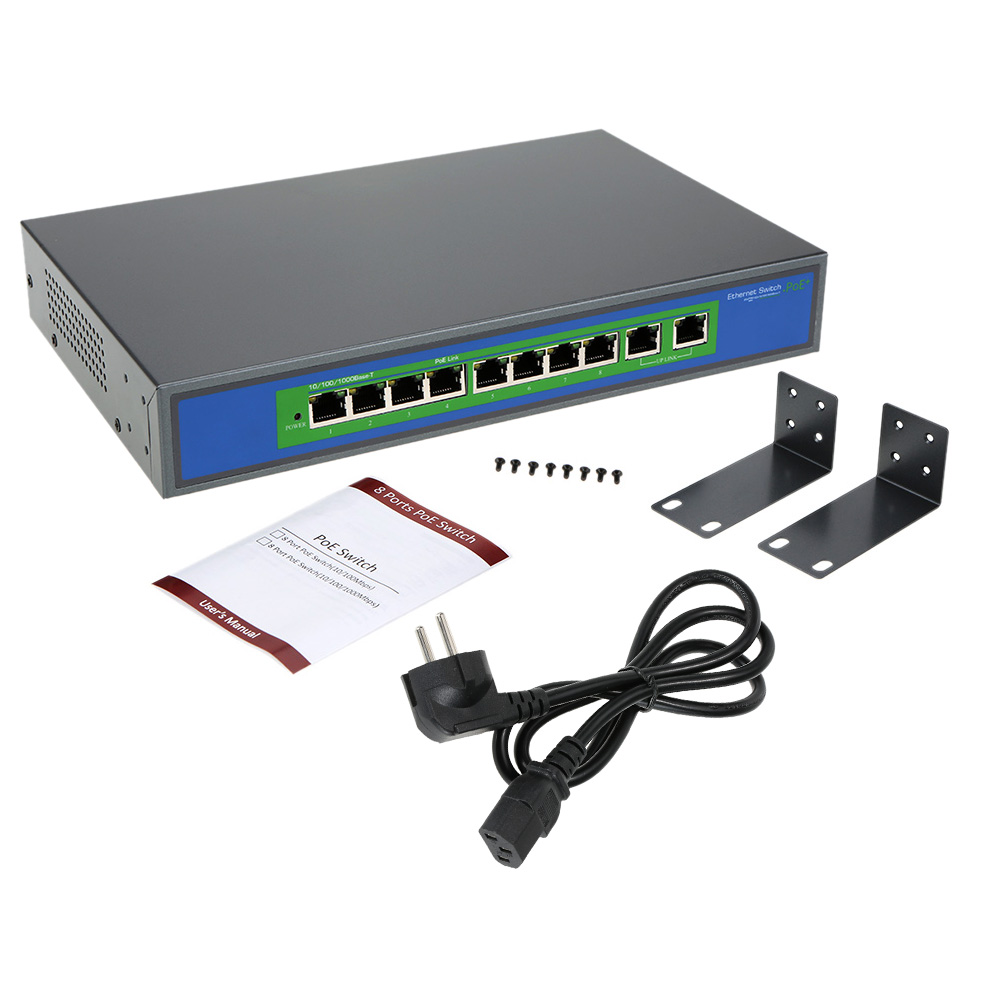

Package List:
1 * at POE Switch
1 * US Plug Power Cable
1 * User Manual
