Click on the image to view the original image
- Products Status:
- Stock
- Ports:
- ≤ 8
- Transmission Rate:
- 10/100/1000Mbps
- Function:
- POE
- Certification:
- CE
- Switch Capacity:
- --
- Brand Name:
- KKMOON
- Model Number:
- 6 Ports
- VLAN:
- POE Switch
- Switch Type:
- Ethernet
- Package:
- Yes
- Type:
- Ethernet Switch
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen

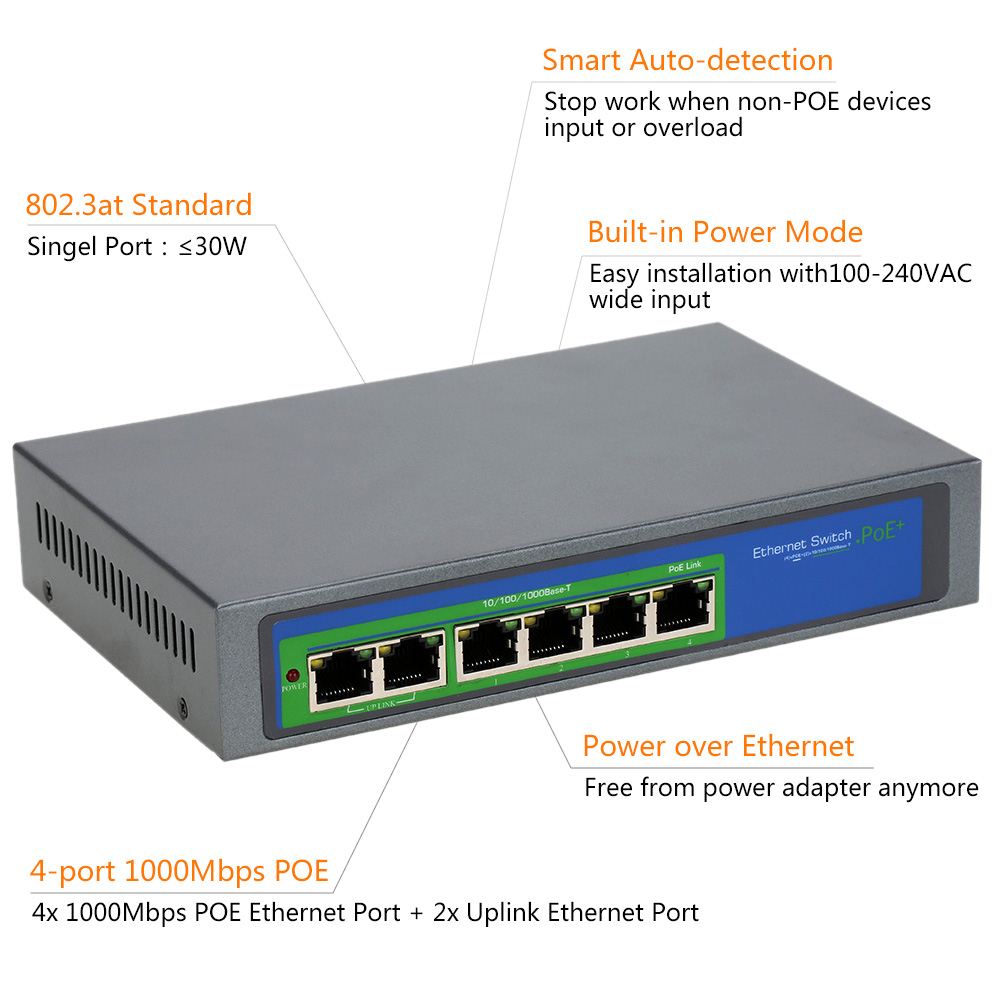

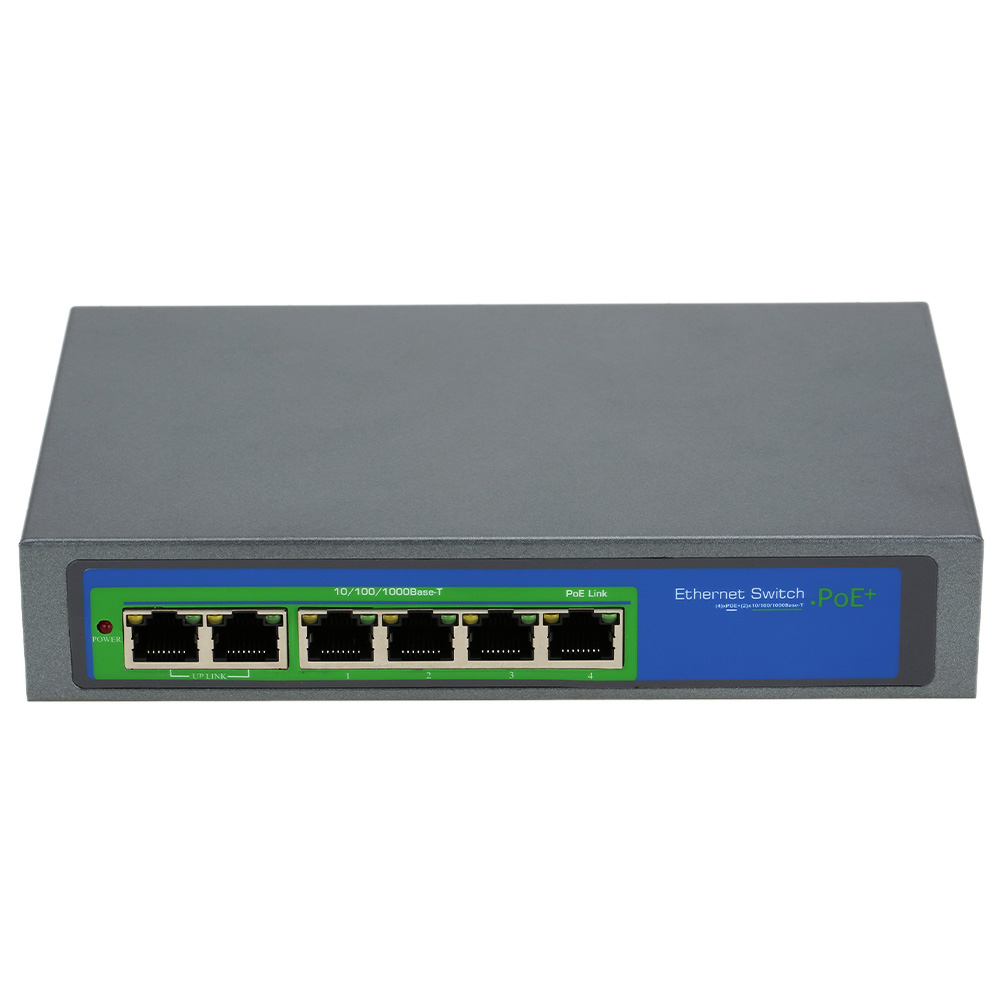

4 Port 10/100/1000Mbps POE Switch Power Gigabit Switch over Ethernet for IP Camera VOIP Phone AP Devices 1006POE-AT
Overview:
This PoE Switch provides a network point for power supply and data transmission. All the 6 Ethernet ports can be connected with 10/100/1000Mbps quickly, and the uplink port is Ethernet interface, among which 1-4 port can provide standard IEEE 802.3at power supply. Due to the advanced self-sensing algorithm supply power for IEEE802at terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected.
Features:
*Can supply power to network surveillance cameras with PoE function;
*6x 10/100/1000Mbps auto-sensing RJ45 ports, 4x 10/100/1000MbpsPoE ports, 2x uplink port;
*Supports port auto-flip (Auto MDI/ MDIX);
*Maximum power of single PoE port: 30W;
*Adopts store-and-forward architecture;
*IEEE 802.3at power on up to 4 ports;
*Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall;
Specifications:
Standard: IEEE802.3at
Input Voltage: AC100V-240V
Power Consumption: 120W, build-in power supply
PoE Power Consumption: at30W
Network Port: 1-4 port: 10/100/1000Mbps POE Ethernet port; Uplink port:10/100/1000Mbps Ethernet port
Transmission Media: Cat5/5e/6 Cable standard network cable
Transmission Distance: 100m
Dimensions: Approx. 7.4*4.76*1.42in / 18.8*12.1*3.6cm
Package Information:
Package Size: Approx. 8.66*5.31*3.54in / 22*13.5*9cm
Package Weight: Approx. 1.98lb / 899g
Package List:
1 * at POE Switch
1 * Power Cable
1 * User Manual
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn"t receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
