Click on the image to view the original image
- Products Status:
- Stock
- Type:
- Barcode Scanner
- Interface Type:
- USB
- Max Paper Size:
- As Discription Show
- Optical Resolution:
- As Discription Show
- Scan Speed:
- 280 Scans/Sec
- Model Number:
- BP8150
- Scan Element Type:
- As Discription Show
- Colour Depth:
- As Discription Show
- Dimension:
- 9.2 * 7 * 16.8cm
- is_customized:
- Yes
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen

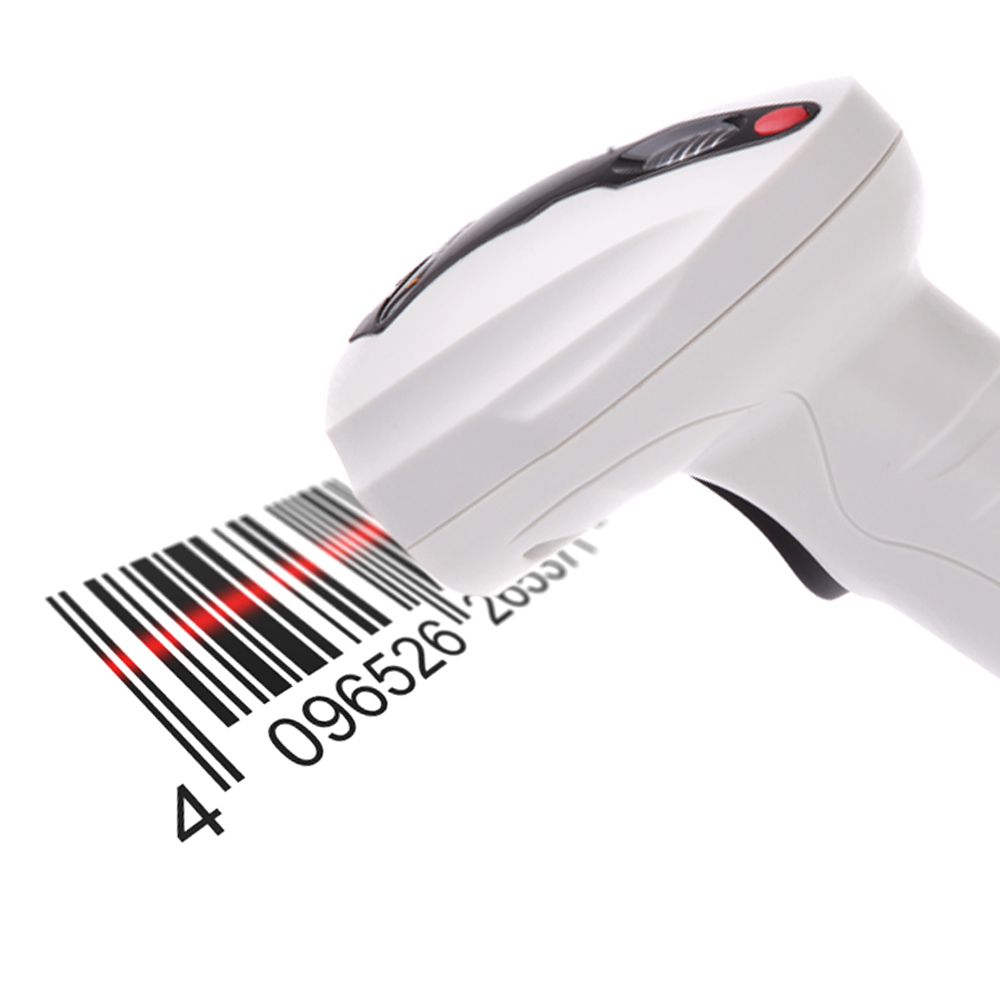

USB Laser Barcode Bar Code Scanner Reader Handheld Wired LED Indicator Bi-directional Single Line Scanning Design
Features:
USB powered, plug and play, no driver is needed.
Rich decoding types and long service life of button.
Support more than 20 different languages keyboard output.
Scans fast, accurately and correctly.
Ergonomic design eases your pain of wrist after long operation.
Handheld, very convenient and portable to use.
Compact anti-shock & drop-resistance design, durable & high quality.
Widely used in all walks of life, such as supermarket, bank, warehouse, logistics & express, etc.
| Light source | Visible lasing diode; Wave length: 650nm |
| Scanning mode | Bi-directional single line scanning |
| Scanning speed | 280 scans / sec |
| Scanning accuracy | 3mil.(PCS0.9) |
| Scanning width | 60mm The scanner window, 280mm 300mm |
| Scanning depth of field | 0~350mm (0.43mm, PCS 98%) |
| Tilt & Elevation & Deflection | 30 & 75 & 65 |
| Interfaces supported | USB |
| Print contrast ratio | At least 30% reflectivity difference |
| Error rate | 1/5,000,000 |
| Promoting methods | Buzzer, LED indicator |
| Scanning ways | Trigger manually or continuous scanning |
| Decoding abilities | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China postal code, etc. |
| Power source | DC5V |
| Battery type | 75mA Lithium ion battery (Total power consumption: 650mw) |
| Quiescent current | 35mA |
| Laser safety | National safety standard Class 2 |
| Electromagnetic compatibility | CE, FCC, DocCompliance |
| Operating temperature | 0 ~ 45 degree Celsius |
| Storage temperature | -20 ~ 60 degree Celsius |
| Humidity | Relative humidity 5% ~ 90% (No condensation) |
| Ambient brightness | Max. 5,000 lux (fluorescence) |
| Anti-knock | Can withstand 1.5 m free fall |
| Material | ABS + PC + Rubber |
| Cable length | Approx. 180cm / 5.90ft |
| Product size | Approx. 9.2 * 7 * 16.8cm / 3.62 * 2.76 * 6.61in (L * W * H) |
| Product weight | Approx. 117g / 4.14oz |
| Package size | Approx. 20 * 10.3 * 8cm / 7.87 * 4.06 * 3.15in (L * W * H) |
| Package weight | Approx. 280g / 9.88oz |
Package List:
1 * Laser scanner
1 * USB cable
1 * User manual (English)
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn"t receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
