- Products Status:
- Stock
- Ports:
- 24
- Transmission Rate:
- 10/100/1000Mbps
- Function:
- POE
- Certification:
- CE
- Switch Capacity:
- --
- Brand Name:
- KKMOON
- Model Number:
- 1024POE-AT
- VLAN:
- --
- Number of Interfaces:
- 28
- Switch Type:
- Ethernet
- Package:
- Yes
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
24 Port IEEE802.3at POE Switch/Injector Power over Ethernet Switch for IP Camera VoIP Phone AP devices 1024POE-AT Free DHL
There are US Plug,EU Plug ,AU Plug and UK Plug For your optional .Please leave message to tell us which Plug you want .Or we will send randomly.Thanks!
Overview:
This is an unmanaged POE switch. It provides 24x 100Mbps Ethernet ports with POE and 4 uplink Gigabit ports including 2 Gigabit LAN Port and 2 Gigabit SFP Port. The 24 POE ports compliant with IEEE802.3u 10Base-T/100Base-TX and IEEE802.3at. The 4 Gigabit ports compliant with IEEE802.3ab and IEEE802.3z. This product integrates with optical port to realize perfect integration between fiber optical transceiver and Ethernet switch, thus solving the problem of long distance transmission. It can be used in security surveillance, network engineering.
Features:
*24x 10/100Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x 1000Mbps uplink SFP Ports;
*Supports port auto-flip (Auto MDI/ MDIX);
*Each of 24 ports all support IEEE802.3at;
*Maximum power per port: 30W;
*Built-in 1U rack power supply series, easy installation.
*Adopts store-and-forward architecture;
Specifications:
Standard: IEEE802.3at
Input Voltage: 90-260V AC
Power Consumption: 720W
PoE Power Consumption: at30W
Transmission Media: Cat5/5e/6 Cable standard network cable
Transmission Distance: 1-24 port: 100m; Uplink port: 100m; SFP: depends on the optical module
Network Standards: IEEE802.3/10BASE-T,IEEE802.3u/100BASE-TX, IEEE802.3ab/1000BASE-TX; IEEE802.3z 1000-SX/LX; IEEE802.3x
MTBF: >30000h

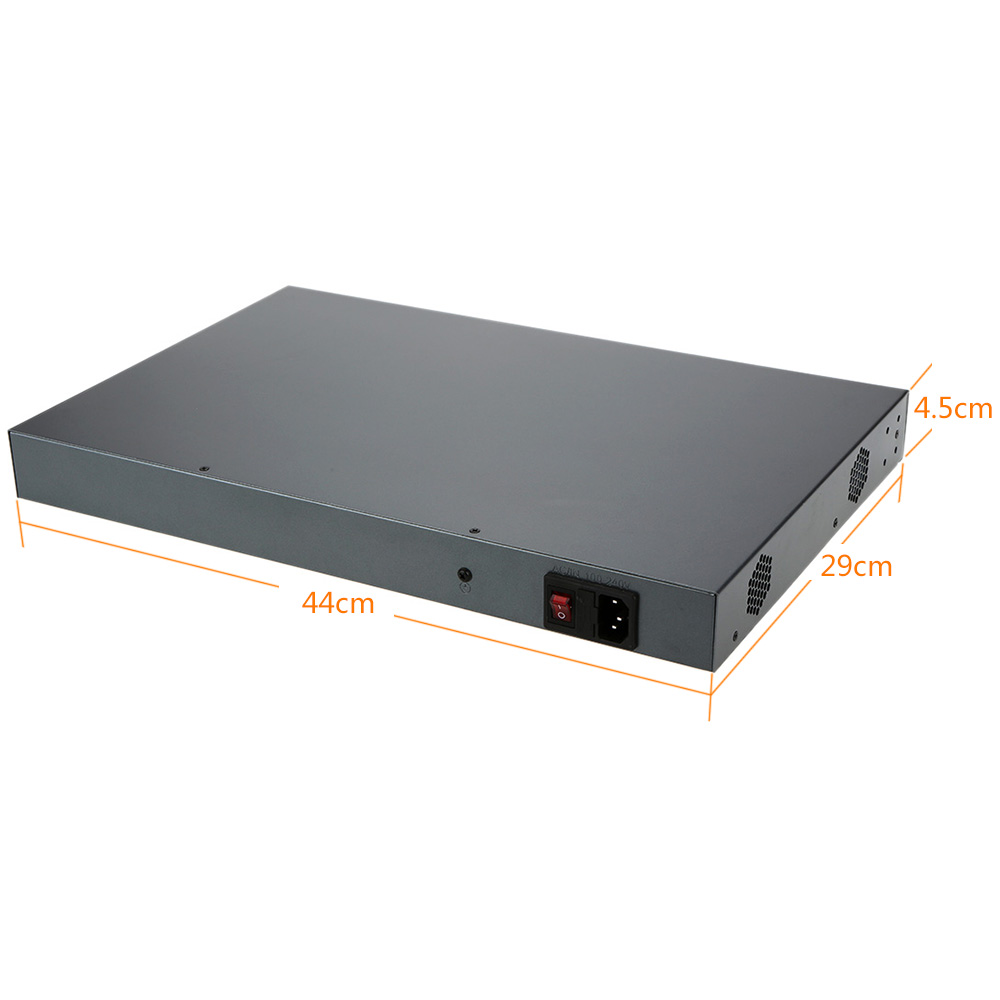

Dimensions: Approx. 17.32*11.42*1.77in / 44*29*4.5cm
Package Information:
Package Size: Approx. 21.26*14.96*4.33in / 54*38*11cm
Package Weight: Approx. 10.47lb / 4750g
Package List:
1 * at POE Switch
1 * EU Plug Power Cable
1 * User Manual
