- Products Status:
- Stock
- Type:
- Barcode Scanner
- Max Paper Size:
- As Discription Show
- Scan Speed:
- 1500 scans/sec
- Model Number:
- BP7220K
- Time to market:
- Mar-13
- Novelty:
- New
- Scanning Light Source:
- Laser Light
- Colour Depth:
- As Discription Show
- Interface Type:
- RS232 PS2 keyboard USB etc
- Product Type:
- Barcode Scanner
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
Dimension: 10 * 10.5 * 15.8cm
is_customized: Yes

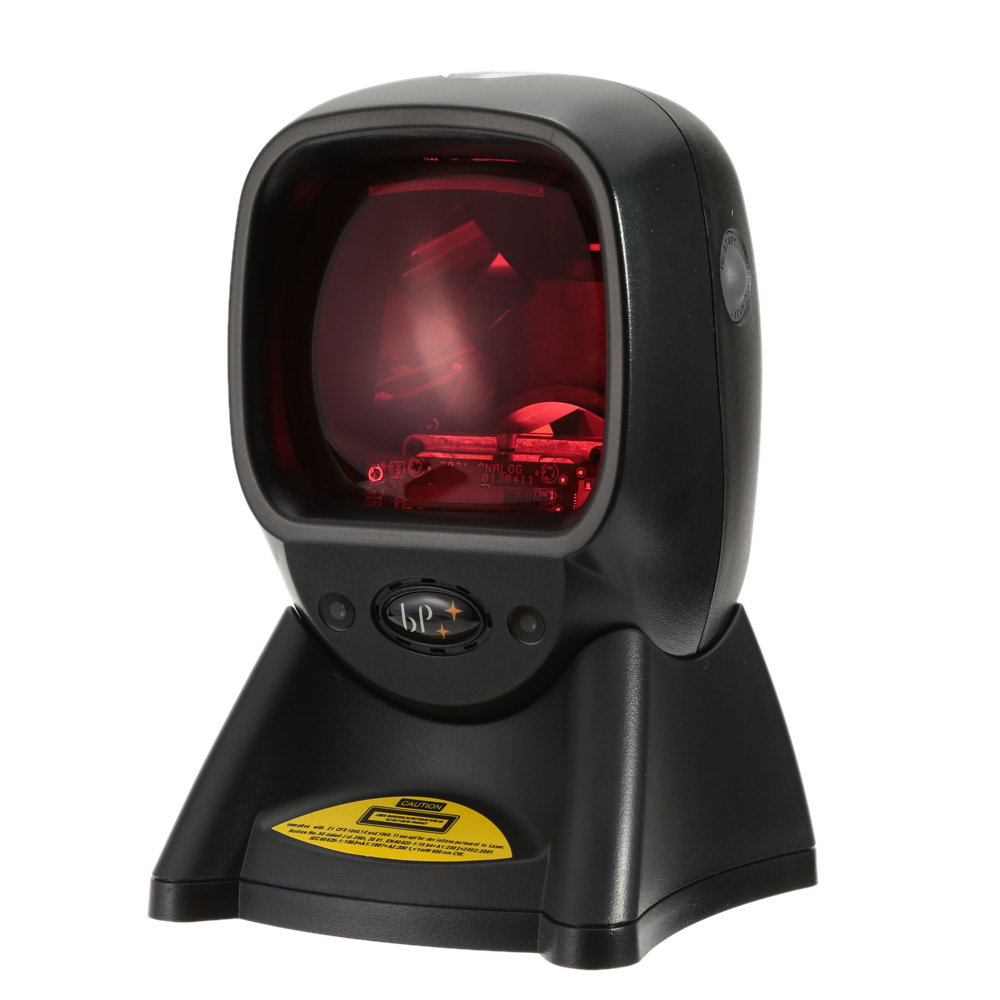

24 Line Automatic Omnidirectional Laser Barcode Scanner USB Bar Code Scanner Reader with USB Cable
Features:
Omnidirectional 24-line and single line laser scan.
Scan speeds up to 1500 scans per second.
Reliable first-pass read rates in different angles.
650nm laser diode scans with precision up to 200mm from the barcode.
Hands-free and heavy-duty scanner that allows you to continuously and rapidly scan various barcoded items without omissions or errors on first-pass reads.
Easy to check and can storage 5,000 barcode data.
Adjustable scan head: enable to tilt scanner head for targeted scanning or larger products.
Widely used in all walks of life, such as supermarket, bank, warehouse, logistics & express, etc.
| Light source | Visible lasing diode; Wave length: 650nm |
| Scanning mode | 24 line omnidirectional |
| Scanning rate | 1500 scans / sec |
| Scanning distance | 0~200mm |
| Scanning angle | 5 directions |
| Min resolution | 0.10mm (pcs0.9) |
| Interfaces supported | RS232, PS2 keyboard, USB etc. |
| PCS | Min 30% color contrast |
| Error rate | 1/5,000,000 |
| LED indicator | Dual color LED (green & red) |
| Beep tone | Adjustable volume and tone |
| Decoding abilities | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China postal code, etc. |
| Power source | DC5V |
| Power | 10W |
| Current | 200mA |
| Laser safety | National safety standard Class 2 |
| Electromagnetic compatibility | CE, FCC, DocCompliance |
| Operating temperature | -20 ~ 45 degree Celsius |
| Storage temperature | -20 ~ 60 degree Celsius |
| Humidity | Relative humidity 5% ~ 95% (No condensation) |
| Ambient brightness | Max. 4,000 lux (sunlight) |
| Anti-knock | Can withstand 2m free fall |
| Material | ABS + PC |
| Cable length | Approx. 200cm / 6.56ft |
| Product size | Approx. 10 * 10.5 * 15.8cm / 3.93 * 4.13 * 6.22in (L * W * H) |
| Product weight | Approx. 283g / 9.98oz |
| Package size | Approx. 21.5 * 14.5 * 11cm / 8.46 * 5.70 * 4.33in (L * W * H) |
| Package weight | Approx. 596g / 1.314Lb |
Note: To pull out the USB cable from the barcode scanner, you need to straighten the clip(included) or any thin iron wire and plug into a hole near the interface on the bottom, then you can release the USB cable.

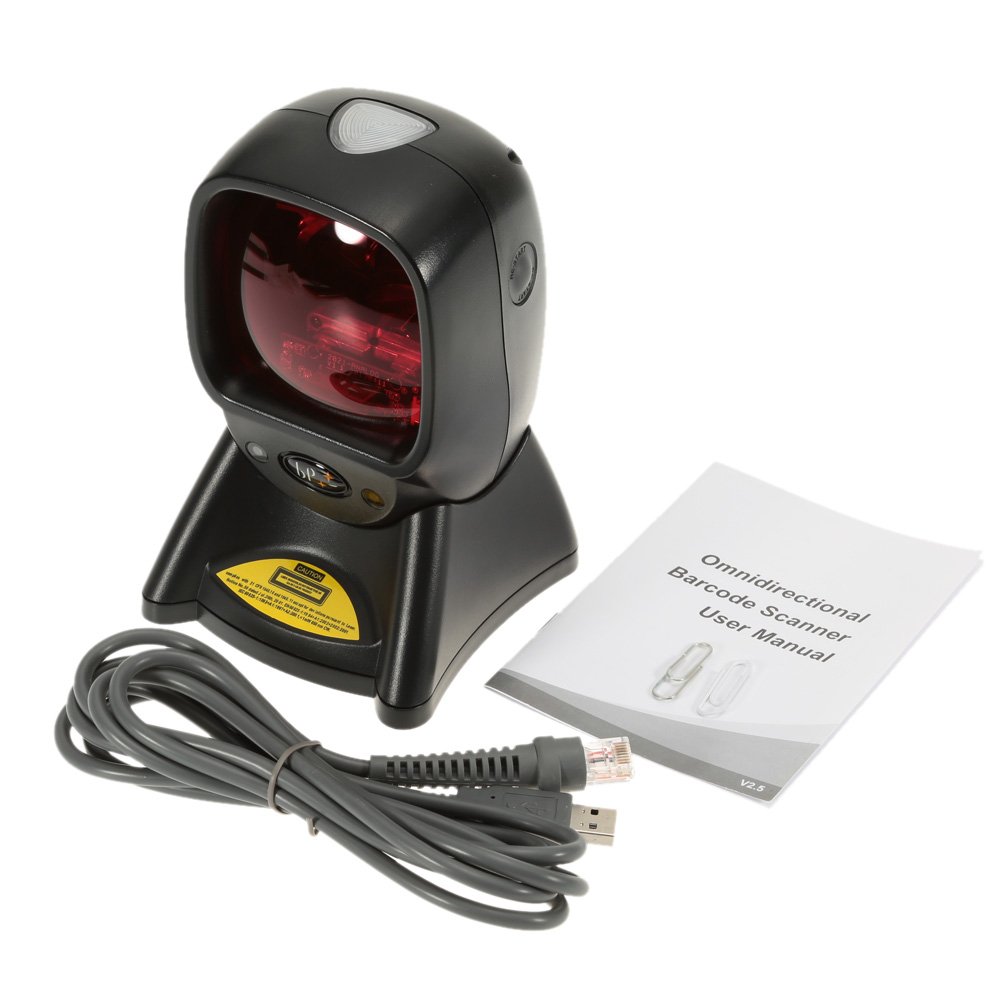

Package List:
1 * Omnidirectional laser barcode scanner
1 * USB cable
1 * Clip
1 * User manual (English)
