- Model Number:
- H1270
- Measuring Current Range:
- 200uA 2000uA 20mA 200mA
- Measuring Voltage Range:
- 200mV 2V 20V 200V 600V
- Measuring Resistance Range:
- 200, 2K, 20K, 200K, 2M, 20M
- Measuring Capacitance Range:
- ---
- Measuring Inductance Range:
- --
- Operating Temperature:
- 0 - 40
- Dimensions:
- 120 * 75 * 20mm
- Operating Mode:
- as the discription
- Display Type:
- Digital Display
- DIY Supplies:
- Electrical
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
| | |||||||||

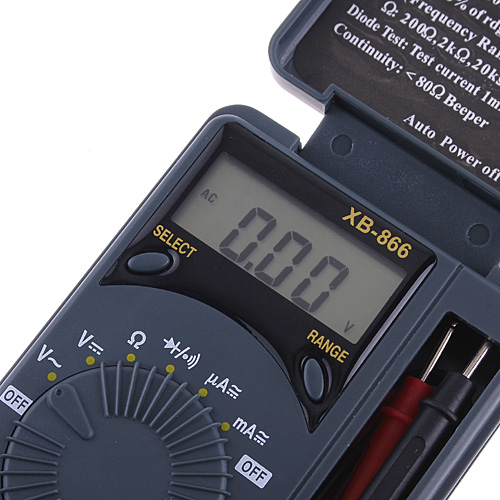

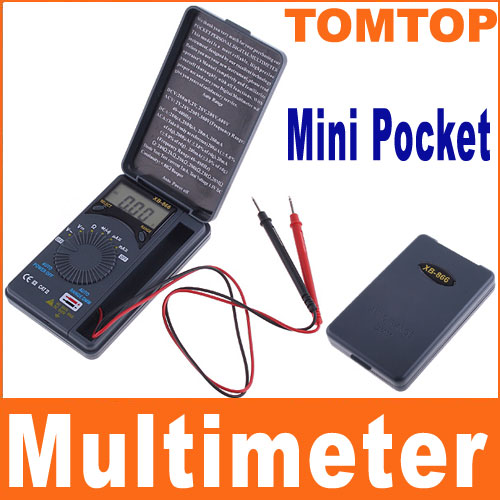

Mini Digital Multimeter Pocket Auto Range LCD Electronic Diagnostic-tool for DC/AC Voltage Current Resistance Diode Temperature
Accuacy is specified for a period of year after calibration and at 18 Centigrade Degrees to 28 Centigrade Degrees (64 Centigrade Degrees F to 82 Centigrade Degrees) with relativehumidity to 75%.
It includes 7 function with 25 rangs.
Auto ranges.
Overrange protection for all ranges.
Max.Voltage Between Terminals And Earth Ground; 600V DC or 500V AC
Power supply: 9V Zinc-carbon battery(not included)
Display: LCD
MAX.Show Value: 1999 counts max
Polarity Indication:"-" indicates negative polarity.
Overrange Indication: Display" OL" or "-OL"
Sampling Time: approx.0.4second
Until showing of function and electrical capacity.
Auto power supply: 15min.
Power Supply: 1.5V*2
Low Battery Indication: dispalyed
Temperature, Factor<0.1*Accuracy/ Centigrade Degrees
Operating Temperature: 0 Centigrade Degrees to 40 Centigrade Degrees (32F to 104 F)
Storage Temperature: 0 Centigrade Degrees to 50 Centigrade Degrees (10F to 122 F)
Circumstance Temperature: 235 Centigrade Degrees Relative Humiditu: <70%
Auto Range:
DC Voltage: 200mV, 2V, 20V, 200V, 600V
AC Voltage: 2V, 20V, 200V, 500V (Frequency Range: 40~400Hz)
DC Current: 200uA, 2000uA, 20mA, 200mA
AC Current: (Take it only as reference) 200uA(5% of rdg), 2000uA (3% of rdg), 20mA (5% of rdg), 200mA (3% of rdg) (Frequency Range: 40~400Hz)
Resistance: 200, 2K, 20K, 200K, 2M, 20M
Diode Test: test current 1mA, test voltage 1.5V DC
Continuity: <80 Beeper
Color: black
Dimension: 120 * 75 * 20mm
Weight: approximate 120g
Package include:
1* Auto Range Digital Multimeter
1* User manual
Package dimension: 128 * 78 * 22mm
Package weight: 138g
