- Model Number:
- DT3266L
- Display Type:
- Digital Only
- Measuring Current Range:
- 20A-200A-400A
- Measuring Voltage Range:
- 750V
- Measuring Resistance Range:
- 2K-200K-2M?
- Measuring Capacitance Range:
- NO
- Measuring Inductance Range:
- NO
- Operating Temperature:
- NO
- Dimensions:
- 17.3 * 5.2 * 2.5cm / 6.8 * 2 * 0.98in
- Weight:
- 120g / 4.24oz
- DIY Supplies:
- Electrical
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen

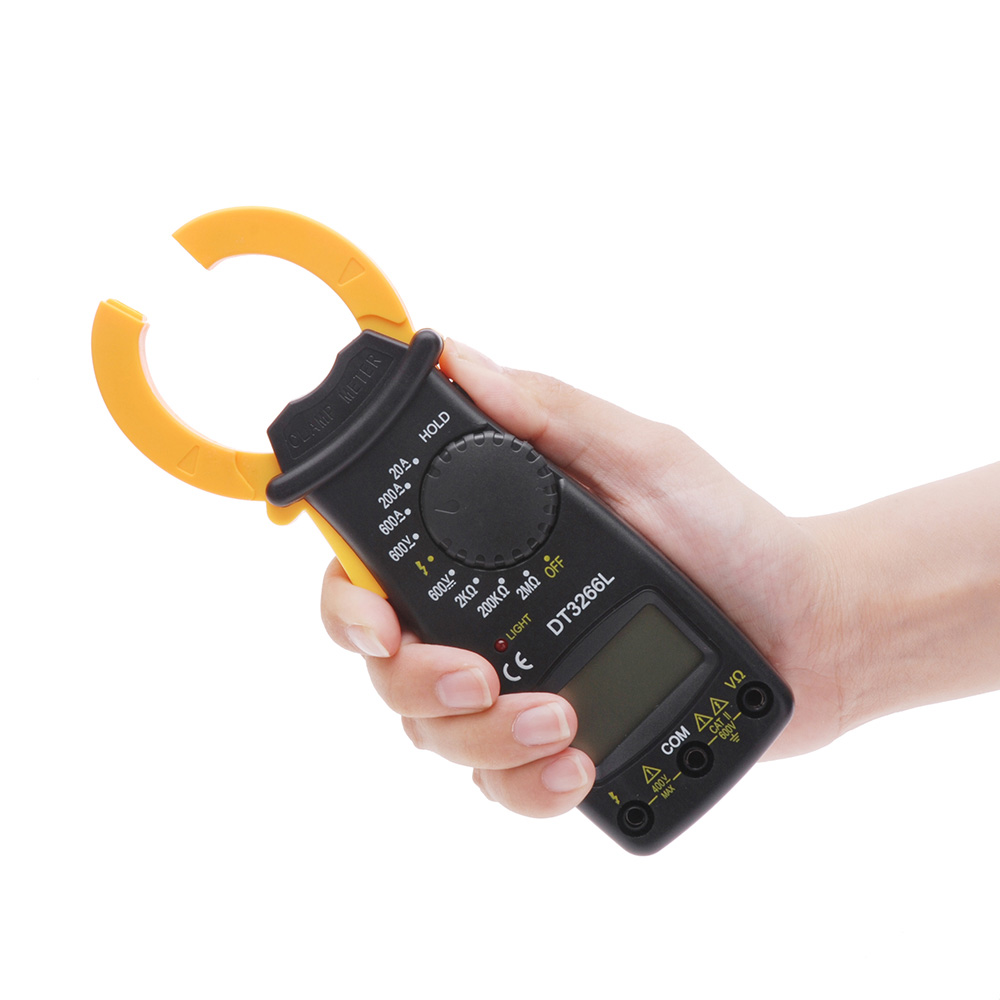

DT3266L AC/DC Portable Handheld Digital Clamp Meter Multimeter Voltage Current Resistance Tester Multimetro with Test Lead
This LCD Digital AC/DC clamp multimeter is a portable clamp meter. It is ideally suited for field, laboratory, shop and home applications.
Features:
3 1/2 digit LCD screen, the maximum display value is 1999.
Multi-purpose clamp meter can measure AC/DC voltage and resistance, etc.
Low voltage indication and overload protection.
High resolution of 1mA minimum force.
Small and portable to carry and use.
Data retention for easier reading.
Note:
This meter can"t measure DC current.
Specifications:
Color: Black + Yellow
Material: Plastic
DC Voltage: 600V (0.8%+3dgt)
AC Voltage: 750V (1.2% +5dgt)
AC Current: 20A-200A-400A (2%+5dgt)
Resistance: 2K-200K-2M? (1.0%+3dgt)

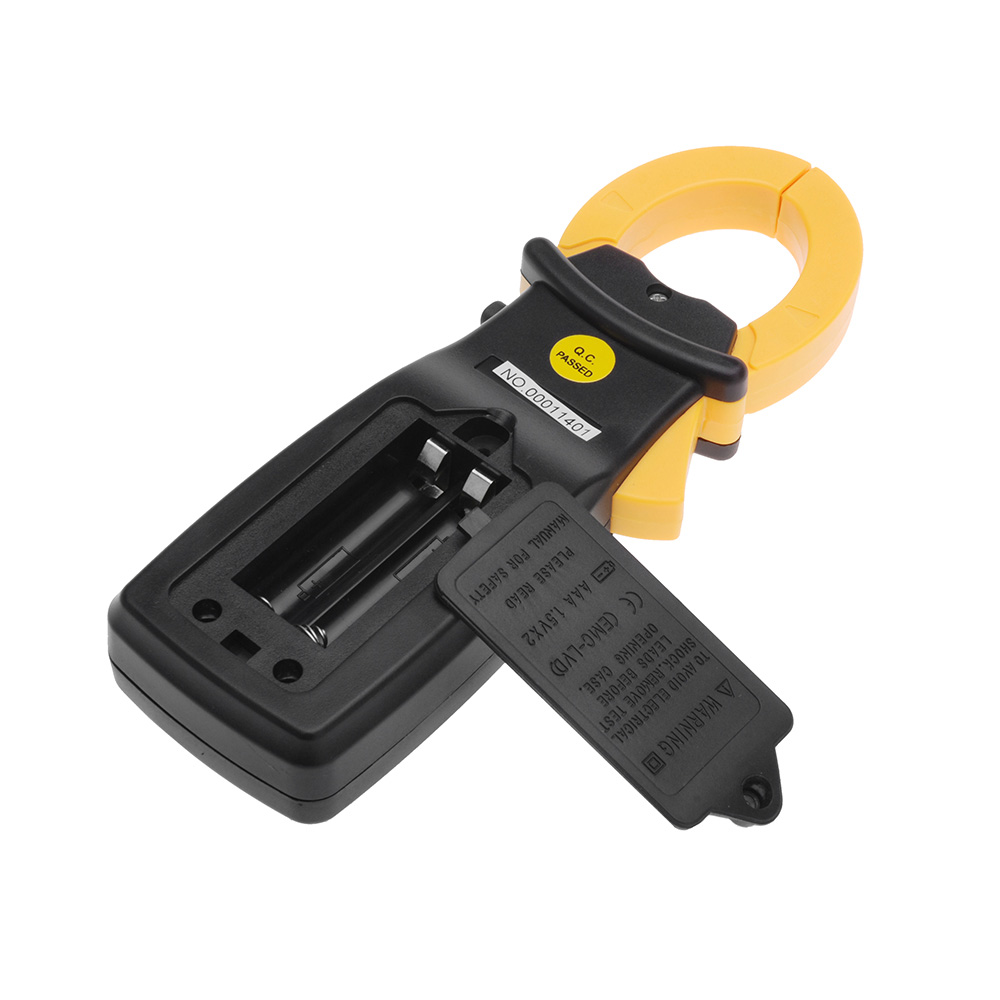

Power Supply: 2 * AAA 1.5V Batteries (Not included)
Maximum Display: 1999
Jaw Diameter: 30.8mm
Display Size: 35 * 17mm
Item Size: 17.3 * 5.2 * 2.5cm / 6.8 * 2 * 0.98in
Item Weight: 120g / 4.24oz
Package Size: 17.8 * 10 * 3cm / 7 * 3.94 * 1.18in (L * W * H)
Package Weight: 187g / 6.59in
Package List:
1 * Clamp Meter
1 * Test Lead
