Click on the image to view the original image
- Model Number:
- OEM
- Display Type:
- Digital Only
- Measuring Range:
- 0-100V
- Accuracy Class:
- 1%
- Operating Temperature:
- No
- Dimensions:
- 4.7 * 2.8 * 2.8cm / 1.9 * 1.1 * 1.1in
- DIY Supplies:
- Electrical
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen

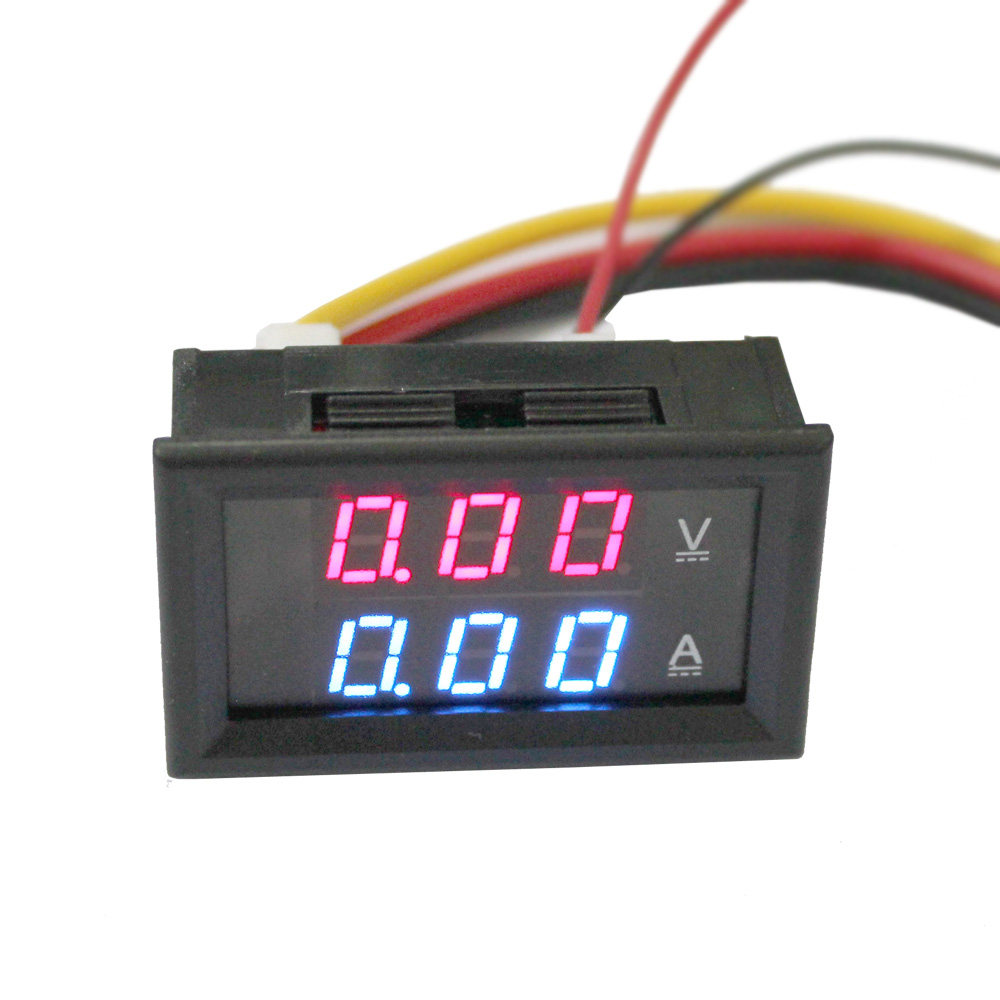

It is a useful 2 in 1 tester which can test current and voltage at the same time. Dual color for display.
Features:
2 in 1 tester to test current and voltage at the same time.
Small in size and wide current and voltage testing range.
Powered by testing circuit, there is no need for additional power supply.

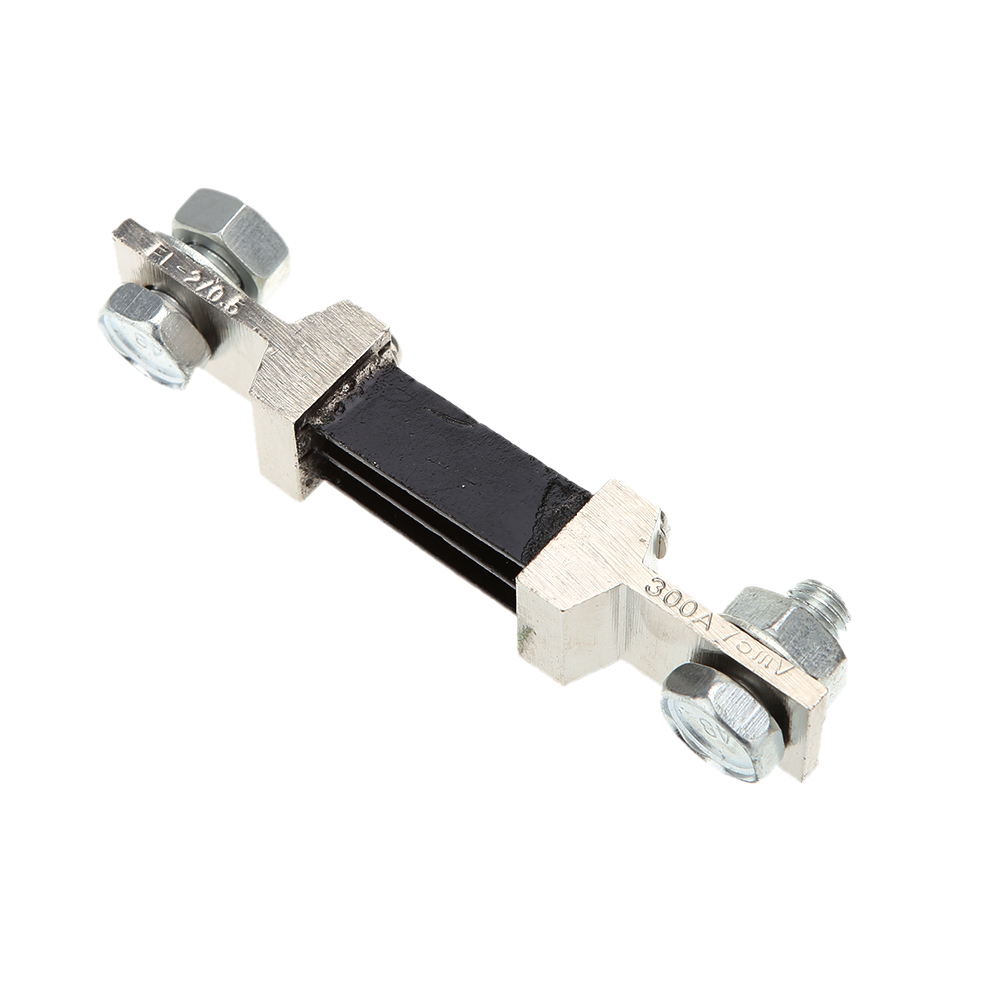

Equipped with current shunt, it is more practical.
Note:
The maximum input voltage can not exceed 30V, otherwise the meter will be damaged.
Specifications:
Display: 0.28" LED Digital Tube (Red & Blue)
Testing Accuracy: 1%, 1 digit
Supply Voltage: DC3.5-30V
Testing Voltage Range: DC0-300V
Testing Current: 0-300A
Current Resolution: 0.1A
Voltage Resolution: 0.1V
Meter Size: 4.7 * 2.8 * 2.8cm / 1.9 * 1.1 * 1.1in
Meter Weight: 15g / 0.6oz
Shunt Size: 12.1 * 1.9 * 2.6cm / 4.8 * 0.8 * 1.1in
Shunt Weight: 190g / 6.7oz
Package Size: 17.5 * 11.7 * 2cm / 6.9 * 4.6 * 0.8in
Package Weight: 208g / 7.4oz
Package List:
1 * Meter
1 * Current Shunt
