Shenzhen Glory Line Co., Ltd.

Multi-Battery Diagnostic-tool Rechargeable Battery Tester Voltage Current Resistance Capacity Mobile Phone Charger Power Tester

In accordance with the need of the rechargeable battery production testing, we have developed a dedicated rechargeable battery tester. The tester can make a precise quantitative measurement for some basic parameters, can measure the battery"s open circuit voltage, load current, internal resistance, and can accurately measure the capacity of battery and mobile power supply, which greatly facilitates battery production and pre-sales after-sales service work. The performance affects of battery can be intuitively judged with very simple steps by this tester.

Features:
Used for testing rechargeable batteries, such as lithium batteries, NI-CD batteries, nickel metal hydride batteries, etc.
Can measure open circuit voltage, load current, internal resistance, capacity of battery and mobile power supply.
Testing output current of mobile phone chargers which are within 5V 3A.

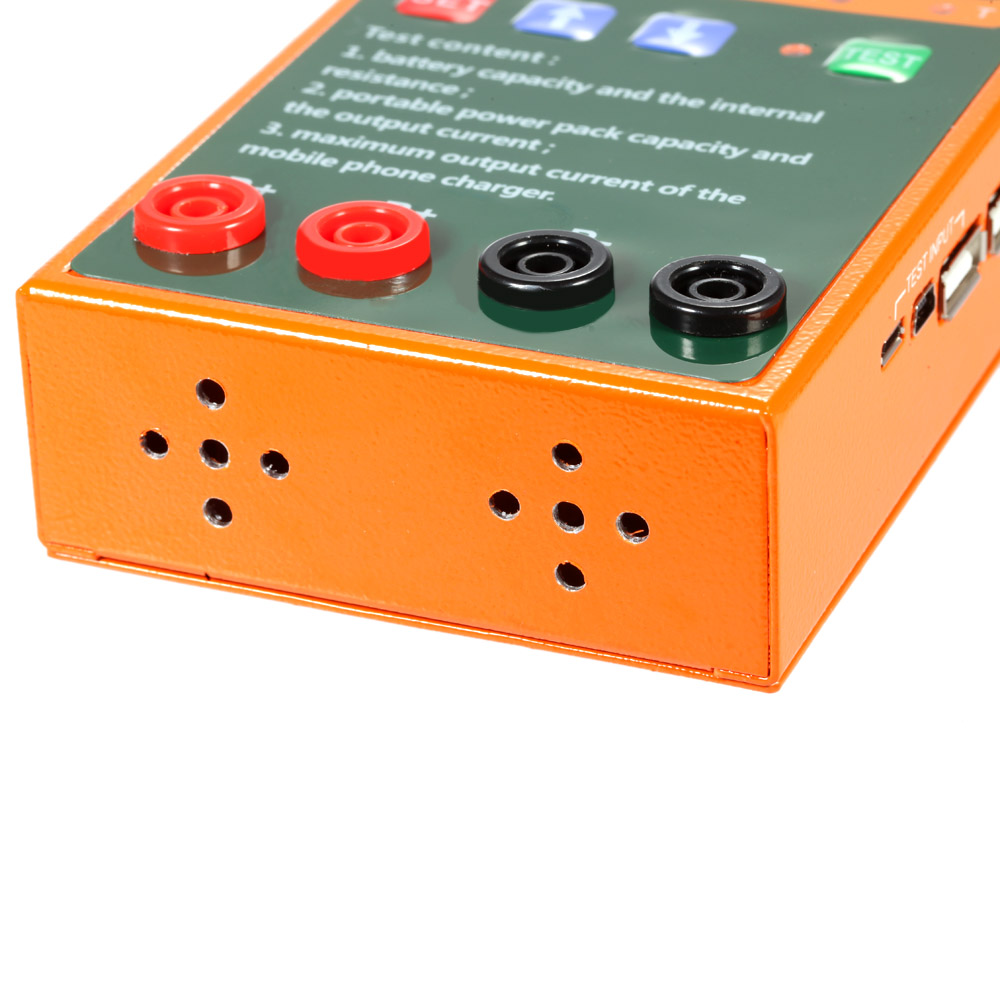

Metal shell for durable use, clear display on the screen for easier readings.
With function keys, easy and convenient for setting and operation.
The performance affects of battery can be intuitively judged with very simple steps by this tester.
Can set the upper and lower limits of measurement parameters.
Bad batteries can be easily detected out from a lot of finished batteries by the tester.
Perfectly applicable for rechargeable battery production testing to improve production efficiency.

Notice:
1. The voltage of tested battery should not be more than 10V;
2. Please insert ahead pen line of tester when current or capacity is tested with two small ports on the right side;
3. When tester is not connected with tested object sometimes, voltage window occasionally appears ERR, which is normal phenomenon because pens sense weak voltage in the air; when test line is pulled out, the phenomenon will disappear;
4. When large current is discharged, internal temperature of instrument will rise, and built-in fan will start; when the temperature is low, fan will automatically be shut down.

Specifications:
Testing Range of Battery"s Voltage: 0~10V
Minimum Resolution: 10mV
Voltage Accuracy: 10.00V (+/-)0.1%(After Calibration)
Testing Range of Current: 0~3000 mA
Minimum Resolution: 1mA
Current Accuracy: 3A (+/-)0.5%
Testing Range of Internal Resistance: 0~1000 m
Minimum Resolution: 1m
Internal Resistance Accuracy: 1000m (+/-)2%
Testing Range of Capacity: 0~9999AH
Minimum Resolution: 1mAH(0.001AH)
Static Testing(Testing All Functions): 3~5 Seconds
Capacity Testing(Current Discharge): 3~4 Hours
Capacity Accuracy: 9999AH (+/-)2%
Power Adapter: AC 100-240V Input, DC 15V 2A Output
Standby Power Consumption: <3W
Applicable Environment: 0~40C, 40~80% Humidity
Dimension: 16 * 8.3 * 4.5cm / 6.3 * 3.26 * 1.77in
Weight: 267g / 9.41oz
Package Size: 23 * 16 * 5.8cm / 9.05 * 6.3 * 2.3in
Package Weight: 723g / 25.5oz

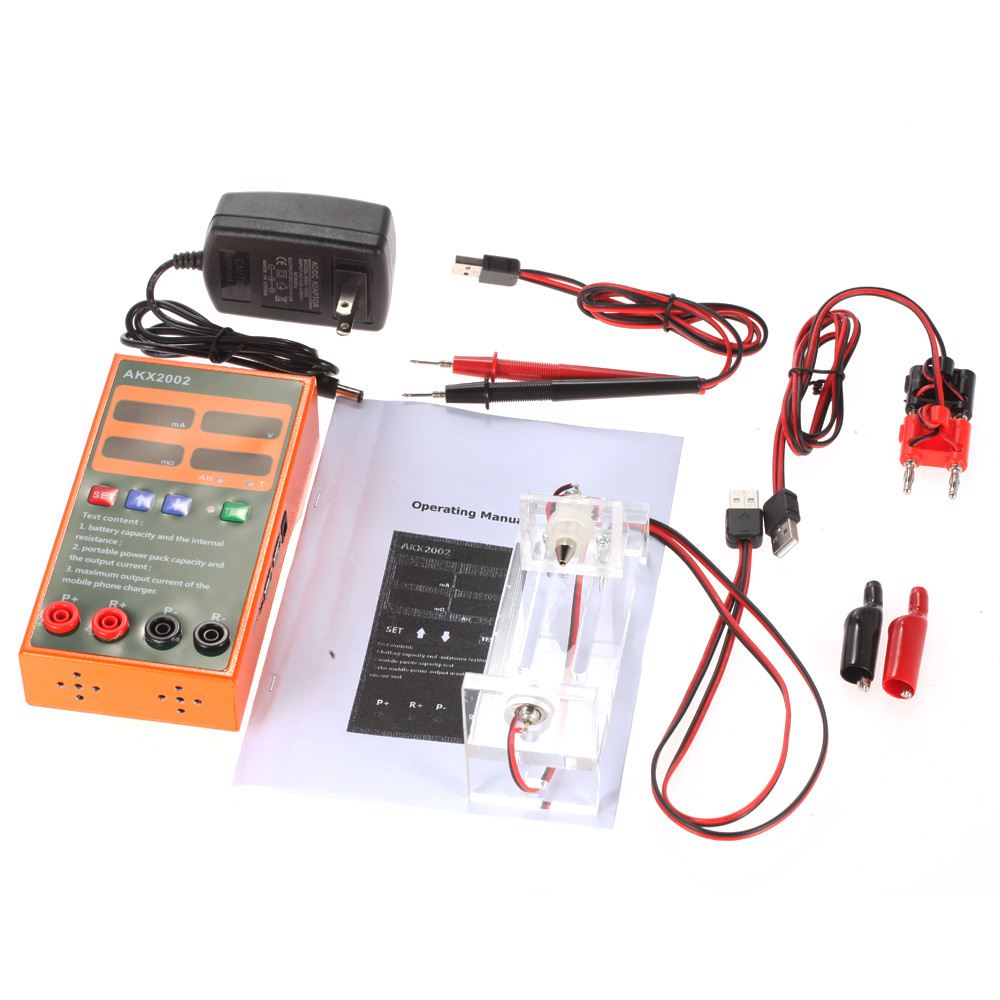

Package List:
1 * AKX2002 Battery Tester
1 * Battery Stand
1 * Pair of Test Leads
1 * USB to Point Adapter Cable
1 * Pair of Clips
1 * User Manual (English)
