- Place of Origin:
- CHINA
- Brand Name:
- A
- Model Number:
- ET111
- Measuring Current Range:
- 0.1A-200mA
- Measuring Voltage Range:
- 0.01mV-200V
- Measuring Resistance Range:
- 0.01-20M
- Measuring Capacitance Range:
- 0.1nF-200nF
- Measuring Inductance Range:
- No
- Operating Temperature:
- 0 - 40
- Dimensions:
- 7.1 * 3.9 * 1.4in
- Operating Mode:
- as the discription
- Display Type:
- Digital Display
- DIY Supplies:
- Electrical
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1X1X1 cm
- Single gross weight:
- 0.1 kg
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
| | |||||||||

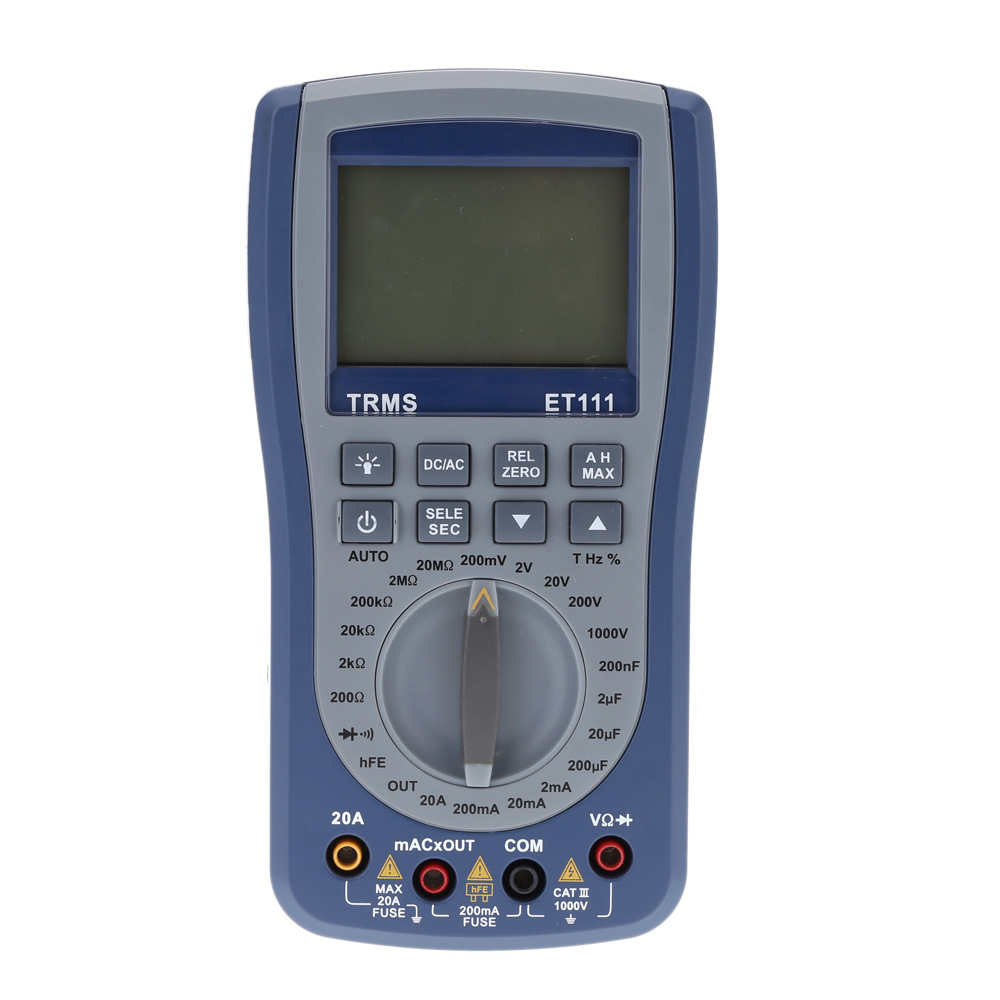

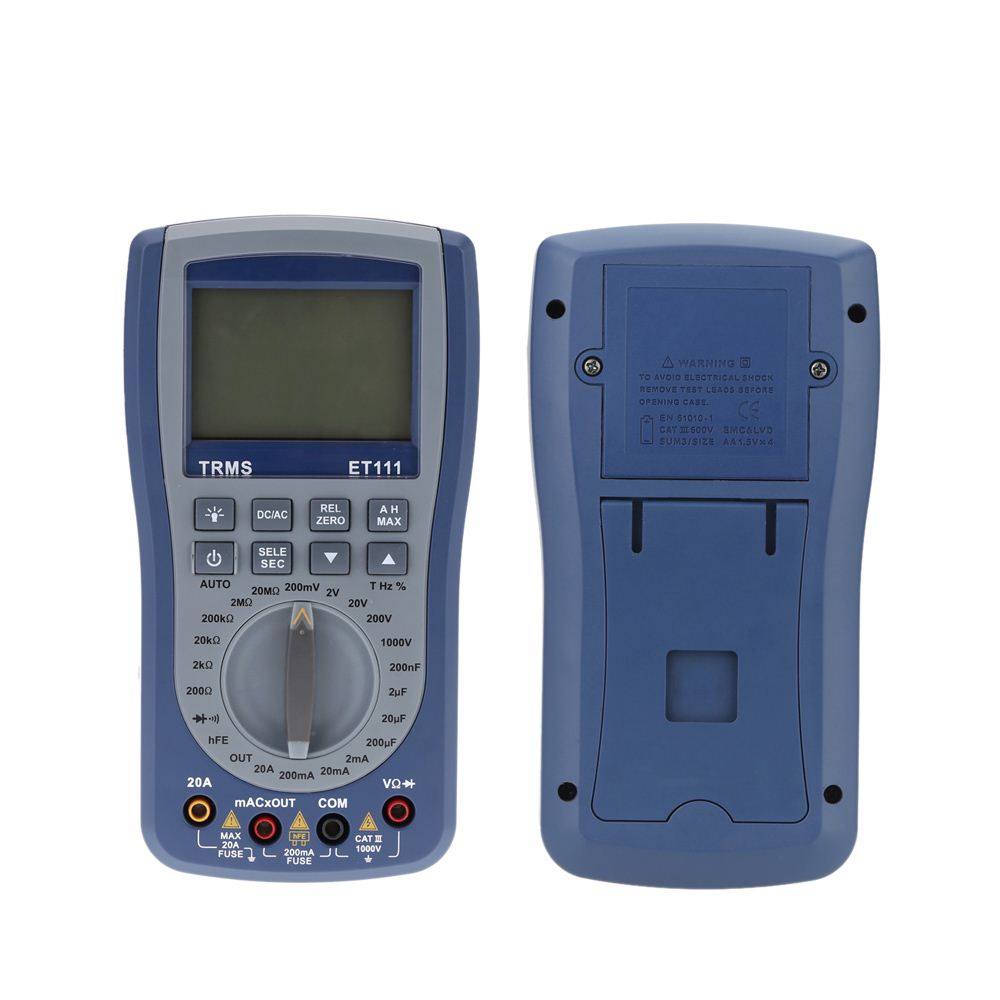

ET111 Handheld LCD Digital Multimeter DC AC Voltmeter Resistance Diode Tester with Test Lead Triode Testing Attachment
The instrument is multi-functional which can be used to measure DC voltage, AC voltage, DC current, AC current, resistance, etc. And it is also ideal for diode, capacitor and triode testing.
Features:
Can be used to measure DC voltage, AC voltage, DC current, AC current, resistance, etc. Also ideal for diode, capacitor and triode testing.
Manual adjustment of measurement range ensures your testing result more accurate.
Timing measurement function makes it possible for recording maximum 10 hours and 100 groups of data automatically.
With relative value measurement function, it can display the difference between actual value and reference value.
With data hold function, it can record maximum and minimum value.
Automatically power off when no operations within 10 minutes. Off time can also be adjusted.
Suitable for production line of electronic device, experiment and industrial maintenance.
Specifications:
DC Voltage: 200mV/0.01mV, 2V/0.1mV, 20V/1mV, 200V/10mV, 1000V/100mV
AC Voltage: 200mV/0.01mV, 2V/0.1mV, 20V/1mV, 200V/10mV, 750V/100mV
DC Current: 2mA/1A, 20mA/10A, 200mA/100A, 20A/10mA
AC Current: 2mA/0.1A, 20mA/1A, 200mA/10A, 20A/1mA
Resistance: 200/0.01, 2k/0.1, 20k/1, 200k/10, 2M/100, 20M/1k
Capacitance: 200nF/10pF, 2F/0.1nF, 20F/1nF, 200F/10nF
Display: LCD
Backlight: White
Sampling Rate: 3 times per second
Temperature: 0~40C
Humidity: <75%RH
Power Supply: 4 * LR6 1.5V AA Battery(not included)
Item Size: 18 * 10 * 3.5cm / 7.1 * 3.9 * 1.4in
Item Weight: 391g / 13.8oz
Package Size: 24 * 18 * 7.5cm / 9.4 * 7.1 * 3in
Package Weight: 747g / 26.4oz
Package List:
1 * Digital Multimeter(battery not included)
1 * Pair of Test Lead
1 * Triode Testing Attachment
1 * Bag
1 * User Manual(English)
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn"t receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
5. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
