Click on the image to view the original image
- Model Number:
- SMD Tester
- Power:
- Electronic
- DIY Supplies:
- Electrical
- Usage:
- Resistor Capacitor Tester
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1X1X1 cm
- Single gross weight:
- 1.0 kg
- Package Type:
- BOX
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
| | |||||||||

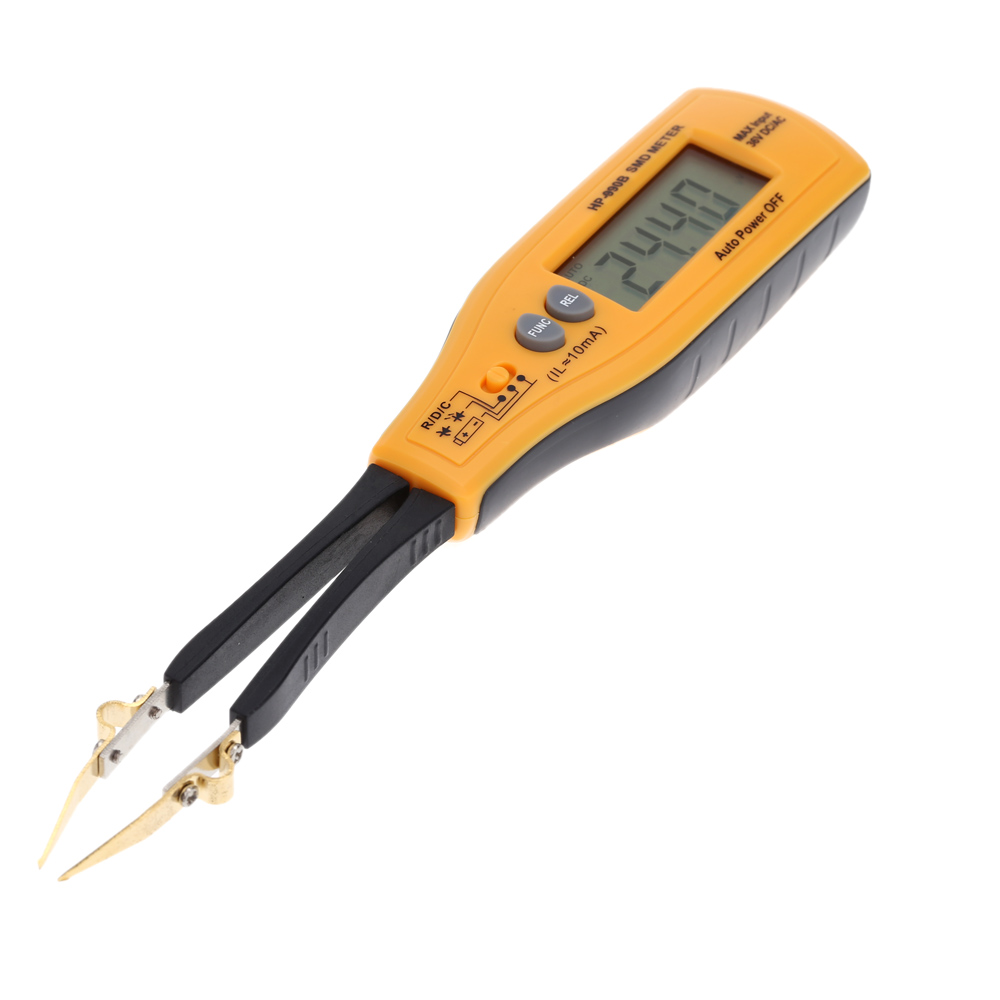

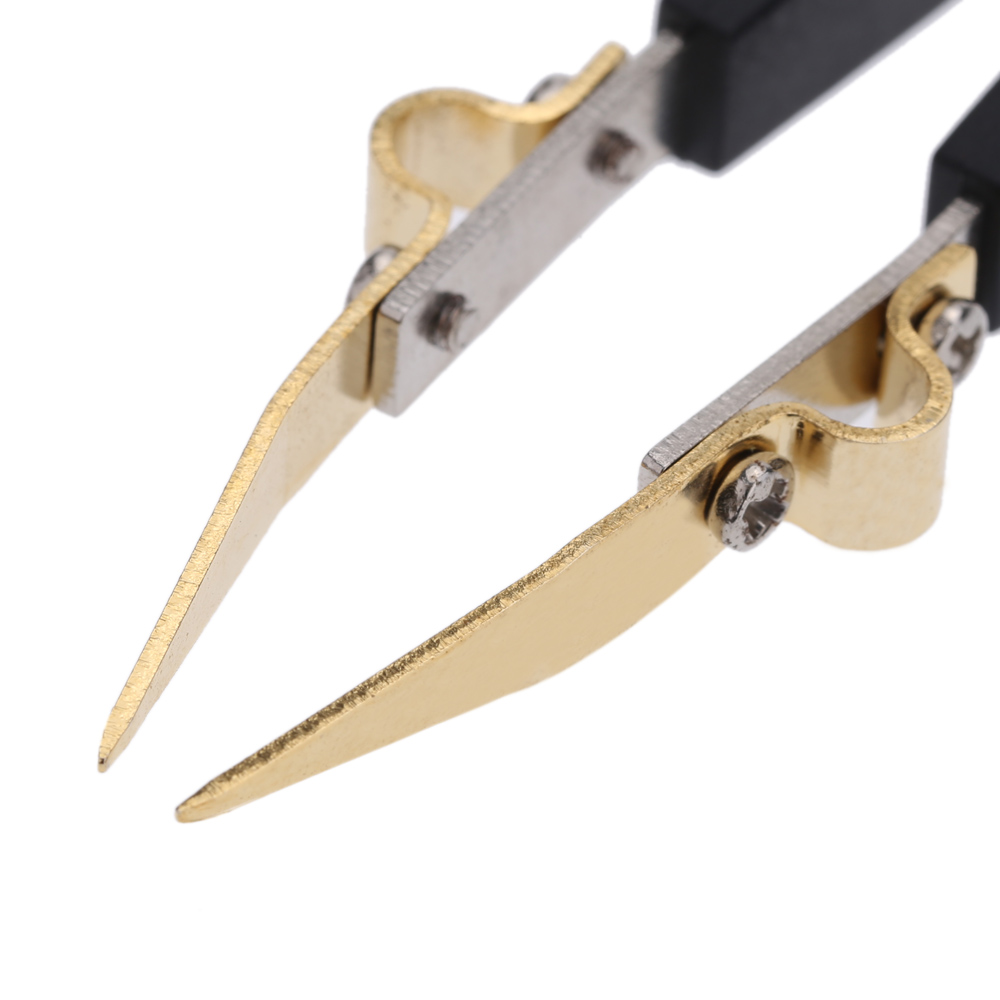

Handheld Smart SMD Tester Tweezers Resistor Capacitor Diode Continuity Intelligent Testing Clips with Relative Mode
The meter is a handheld and battery-powered small tool, which is specially applied to identify resistor, capacitor, diode and Zener/LED. Besides, it is displayed by large LCD and it will be off automatically after 15 minutes if no button is pushed during this period.
Features:
4000-count LCD display.
Auto ranges.
Over-rang indication display "OL".
Zener diode test.
LED test, battery power test.
SMD test, DIP component with lead.
Low battery indication.
Auto power off function.
Specifications:
Color: Orange + Black
Material: Plastic
Display: LCD
Electrical Specifications:
| Functions | Range | Resolution | Acurracy |
| Resistance | 400/4K/40K/400K/4M/ 40M | 0.1 | (2.0%rdg+5dgt) (2.5rd%+5dgt) |
| Capacitance | 4nF/40nF/400nF/4F/ 40F/200F | 1pF | (2.5rd%+5dgt) (3%rdg+5dgt) |
| Diode Test | Open Voltage: 1.5V, Testing Current: 2mA | ||
| Continuity Check | When the resistance is less than approx.30, the Buzzer is sounded. | ||
| Zener/LED | Open Voltage: MIN 20V, Testing Current: Approx. 1mA | ||
| Battery Power | Loading Current: Approx. 10mA | (1.5rd%+5dgt) | |
Working Temperature and Humidity: 0-40C(32-104F) <80%RH
Storage Temperature and Humidity: -10-50C(14-122F) <85%RH
Dimension: 200 * 36 * 25mm / 7.87 * 1.42 * 0.98in (L * W * H)
Product Weight: Approx. 50g / 1.76oz
Package Size: 20.5 * 6 * 3.5cm / 8.07 * 2.36 * 1.38in (L * W * H)
Package Weight: 187g / 6.62oz
Package List:
1 * SMD Tester
1 * Carrying Box
2 * Test Pin
1 * Pair of Test Leads
1 * User Manual (English)
