- Place of Origin:
- CHINA
- Brand Name:
- NONE
- Model Number:
- VC105
- Measuring Current Range:
- 10A-20A
- Measuring Voltage Range:
- 0.1mV-600V
- Measuring Resistance Range:
- 0.1-400M
- Measuring Capacitance Range:
- --1
- Measuring Inductance Range:
- as description show
- Operating Temperature:
- 0 - 40
- Dimensions:
- 19 * 10 * 4cm / 7.5 * 3.9 * 1.6in
- Operating Mode:
- as the discription
- Display Type:
- Digital Display
- DIY Supplies:
- Electrical
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1X1X1 cm
- Single gross weight:
- 0.2 kg
- Package Type:
- BOX
- Lead Time:
Quantity(Piece) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated

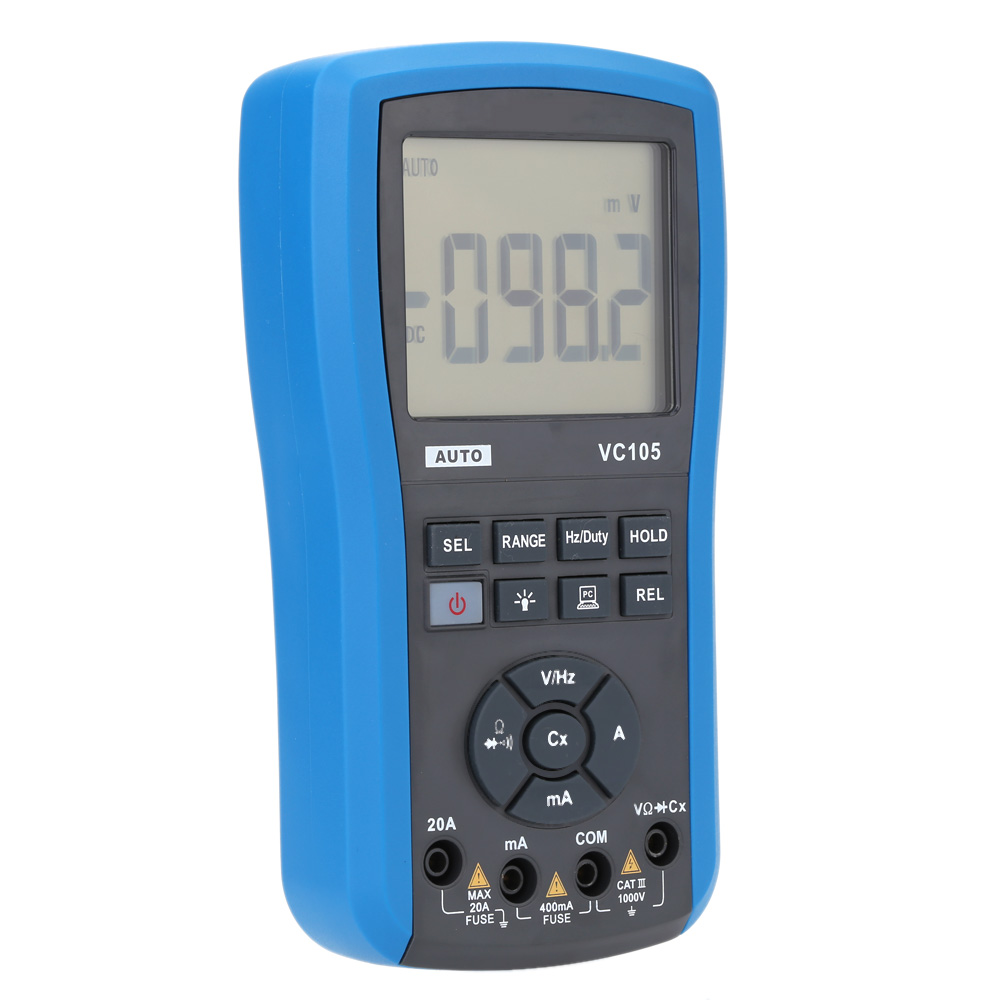

The instrument is multi-functional and practical which can be used to measure DC voltage, AC voltage, DC current, AC current, resistance, capacitance and diode etc. Suitable for production line of electronic device, experiment and industrial maintenance.
Features:
Can be used to measure DC voltage, AC voltage, DC current, AC current, resistance, capacitance and diode etc.
Automatic and manual measurement range to choose, ensure your testing result more accurate.
With relative value measurement function, it can eliminate errors caused by resistances and capacitors.
Water resistance makes it can be used in bad condition.
Large LCD display makes it convenient to use even in the night.
Automatically power off when no operations within 15 minutes.
Suitable for production line of electronic device, experiment and industrial maintenance.
Specifications:
DC Voltage: 400mV/0.1mV, 4V/1mV, 40V/10mV, 400V/100mV, 600V/1V
AC Voltage: 400mV/0.1mV, 4V/1mV, 40V/10mV, 400V/100mV, 600V/1V
DC Current: 40mA/10A, 400mA/100A, 4A/1mA, 20A/10mA
AC Current: 40mA/10A, 400mA/100A, 4A/1mA, 20A/10mA
Resistance: 400/0.1, 4k/1, 40k/10, 400k/100, 4M/1k, 40M/10k
Capacitance: 51.2nF/1pF, 512nF/10pF, 5.12F/100pF, 51.2F/1nF, 100F/10nF
Frequency: 5.12Hz~5.12MHz/0.1Hz~10Hz
Temperature: 0-40C
Humidity: <75%RH
Power Adapter Input: 100-240V 50/60Hz 0.25A
Power Adapter Output: 6.5V 900mA
Plug Type: US Type
Item Size: 19 * 10 * 4cm / 7.5 * 3.9 * 1.6in
Item Weight: 495g / 17.5oz
Package Size: 24 * 18 * 7.5cm / 9.4 * 7.1 * 3in
Package Weight: 916g / 32.3oz
Package List:
1 * Digital Multimeter
1 * Pair of Test Lead
1 * Bag
1 * Power Adapter
1 * USB Cable
1 * User Manual(English)
