- Model Number:
- AC80-300V 100A
- Measuring Current Range:
- 0-100A
- Measuring Voltage Range:
- 80-300V
- Accuracy Class:
- 1%
- Operating Temperature:
- No
- Dimensions:
- 7.9 * 5.3 * 6.3cm / 3.1 * 2.1 * 2.5in
- DIY Supplies:
- Electrical
- Product Name:
- Energy Power Meter
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
| | |||||||||

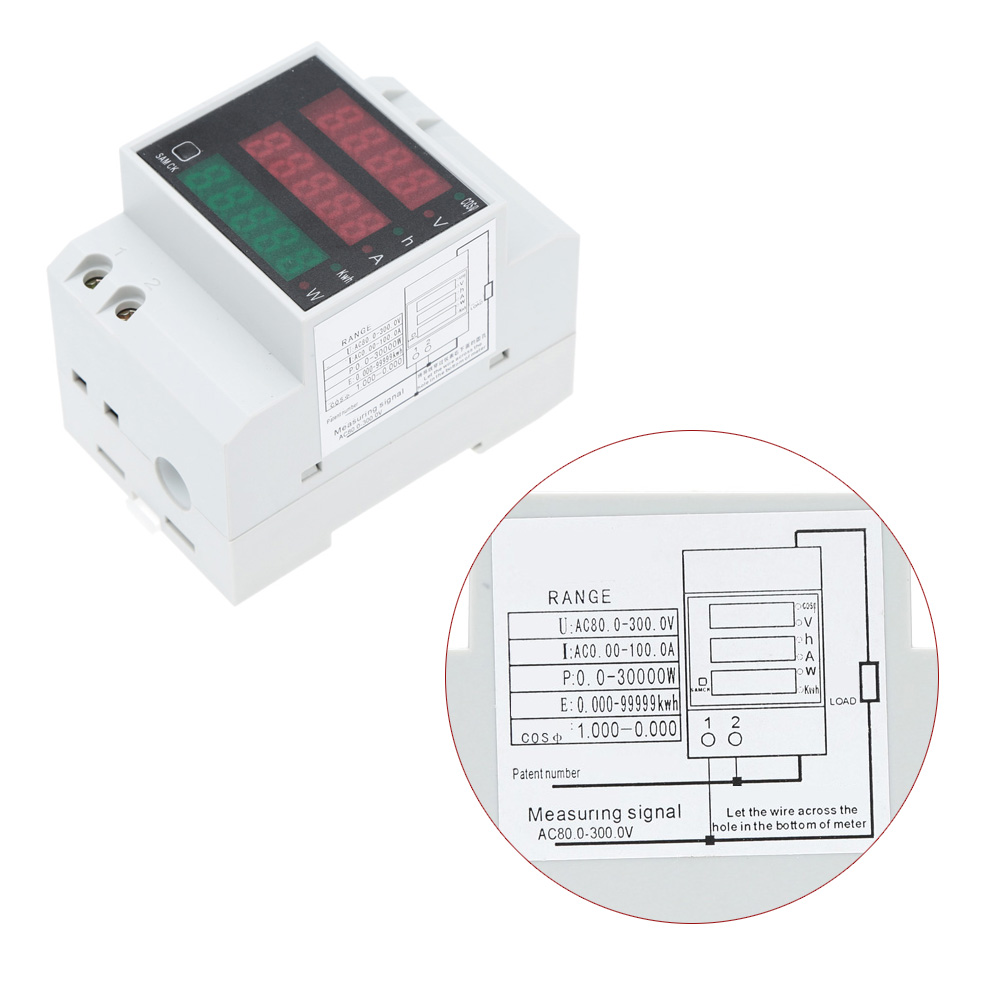

AC80-300V 100A Multi-functional Power Energy Meter Digital Din Rail Current Voltage Power Factor Meter Ammeter Voltmeter
Useful instrument for testing current, voltage, active power, electric energy and power factor. Easy to operate and maintain.
Features:
The testing accuracy is 1%, 2 digits.

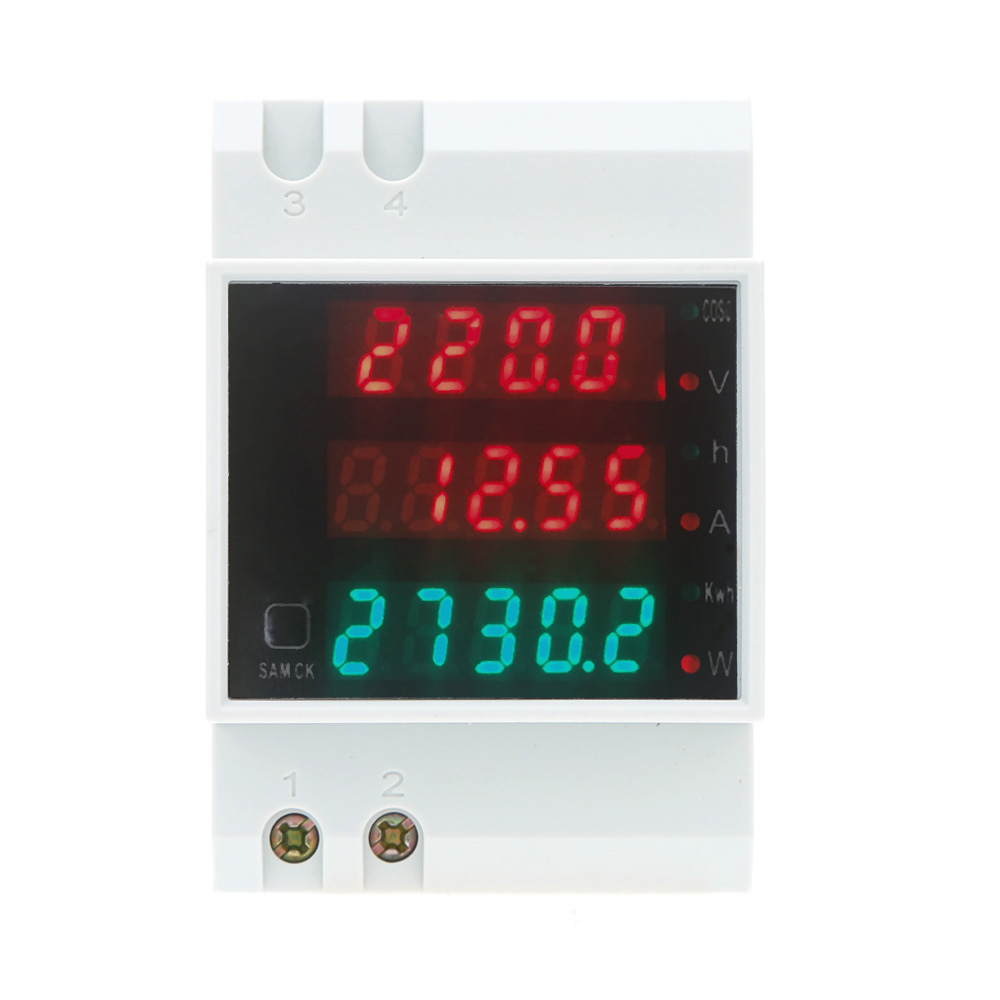

Display the AC voltage and power factor by 0.31 inches 4-digit red LED.
Display the AC current and cumulative time by 0.31 inches 5-digit red LED.
Display the active power , electric energy by 0.31 inches 5-digit green LED.
The measurement resolution can change automatically.
Only suitable for AC50Hz mains supply.
Specifications:
Accuracy: 1%,2 digits
Voltage Range: AC 80-300V
Current Range: AC 0-100A
Cumulative Time: 0-999.59h
Active Power Range: 0-30000W
Power Factor Range: 1.000-0.000
Electric Energy Range: 0-99999kwh
Item Size: 7.9 * 5.3 * 6.3cm / 3.1 * 2.1 * 2.5in
Item Weight: 116g / 4.1oz
Package Size: 8.5 * 6 * 7cm / 3.3 * 2.4 * 2.8in
Package Weight: 143g / 5oz
Package List:
1 * Meter
1 * User Manual(English)
