Click on the image to view the original image
- Model Number:
- Multimeter
- Measuring Current Range:
- have no this function
- Measuring Voltage Range:
- 200mV-500V
- Measuring Resistance Range:
- 200-20M
- Measuring Capacitance Range:
- --
- Measuring Inductance Range:
- --
- Operating Temperature:
- 0 - 40
- Dimensions:
- 107 * 56 * 12mm
- Operating Mode:
- as the discription
- Display Type:
- Digital Display
- DIY Supplies:
- Electrical
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1X1X1 cm
- Single gross weight:
- 1.0 kg
- Package Type:
- box
- Lead Time:
Quantity(Piece) 1 - 2000 >2000 Est. Time(days) 7 To be negotiated

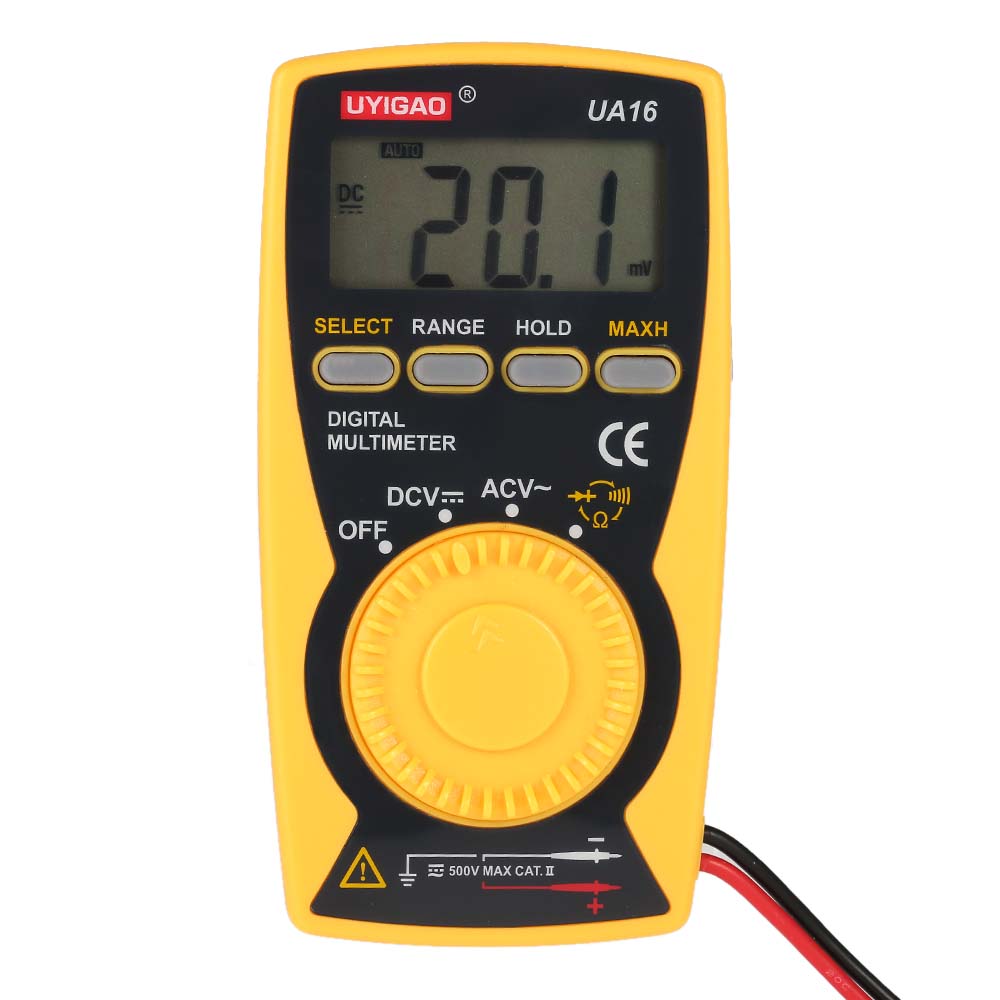

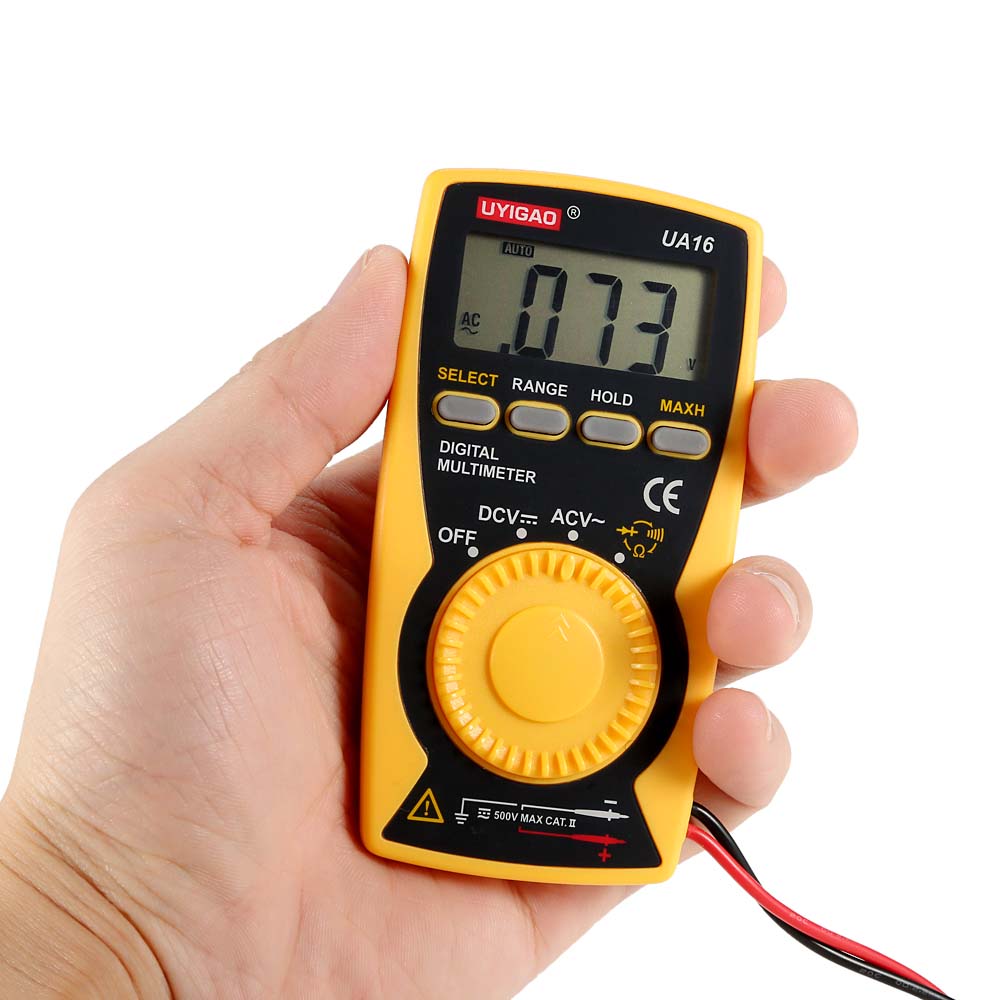

Brand New Digital Multimeter Portable Auto multimetro DMM Voltmeter Ohmmeter ACDC Voltage Resistance Tester Diagnostic-tool
It is a portable notebook autoranging digital multimeter with stable performance, high precision and low consumption. It can automatically identify AC/DC voltage, frequency, duty cycle, resistance, capacitance, diode forward voltage drop and on-off test. (The UA16 can not be used for measuring the frequency, duty cycle, and capacitance.)
Features:
100% Brand new and high quality.
Automatically identify AC/DC voltage, frequency, duty cycle, resistance, capacitance, diode forward voltage drop and on-off test, easy to use.
Perfect measuring instrument for the majority of users.
Digital easy-to-read large LCD display.
Low battery indication and Overload protection.
Auto sleep mode for saving power after 30 minutes with no action.
Specifications:
Brand Name: UYIGAO
Color: Yellow
Material: ABS
Model: UA16
Maximum Display: 3 1/2 LCD / 3 3/4 LCD
Technical Index:
UA16 DCV: Automatic range
| Function | Range | Resolution | Accuracy | Input protection | Notes |
|
DCV | 200mV | 0.1mV | (0.8%+3) |
500V DC |
Input Impedance100M |
| 2V | 1 mV |
(0.8%+1) | |||
| 20V | 10 Mv | ||||
| 200V | 100 mV | ||||
| 500V | 1V | (1%+3) |
UA16 ACV and Resistance: Automatic range
| Function | Range | Resolution | Accuracy | Input proteciton | Notes |
|
ACV | 2V | 1mV |
(1.2%+3) |
500V DC | Input Impedance100M |
| 20V | 10mV | ||||
| 200V | 100 mV | ||||
| 500V | 1V | (1.5%+5) | |||
|
| 200 | 0.1 | (1.2%+5) |
250V AC |
Voltage of open circuit it 0.45V |
| 2k | 1 |
(1%+2) | |||
| 20k | 10 | ||||
| 200k | 100 | ||||
| 2M | 1k | (1.2%+2) | |||
| 20M | 10 k | (1.5%+2) |
Range: Automatic
Measurement rate: 3 times/second
Over-range indication: OL
Polarity: Negative polarity -
Operating temperature: 0 Centigrade Degrees - 40 C (32 F - 104 Fahrenheit ), Humidity 75%
Storage temperature: -10 Centigrade Degrees -50 Centigrade Degrees (14 Fahrenheit - 122 F)
Power Supply: 1 * 3V/CR2032 Button Battery (Included)
Item Size: Approx. 107 * 56 * 12mm / 4.21 * 2.20 * 0.47in (L * W * H)
Item Weight: Approx. 66g / 2.33oz
Package Size: Approx. 24 * 14 * 3cm / 9.45 * 5.51 * 1.18in (L * W * H)
Package Weight: Approx. 154g / 5.4oz
Package List:
1 * Digital Multimeter(Test leads are included)
1 * User Manual
1 * Smart Cover
