- Model Number:
- GM520
- Display Type:
- Digital
- Max Measuring Range:
- 49 PSI & Under
- Dial Diameter:
- 2 - 3.9 Inches
- is_customized:
- Yes
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
| | |||||||||

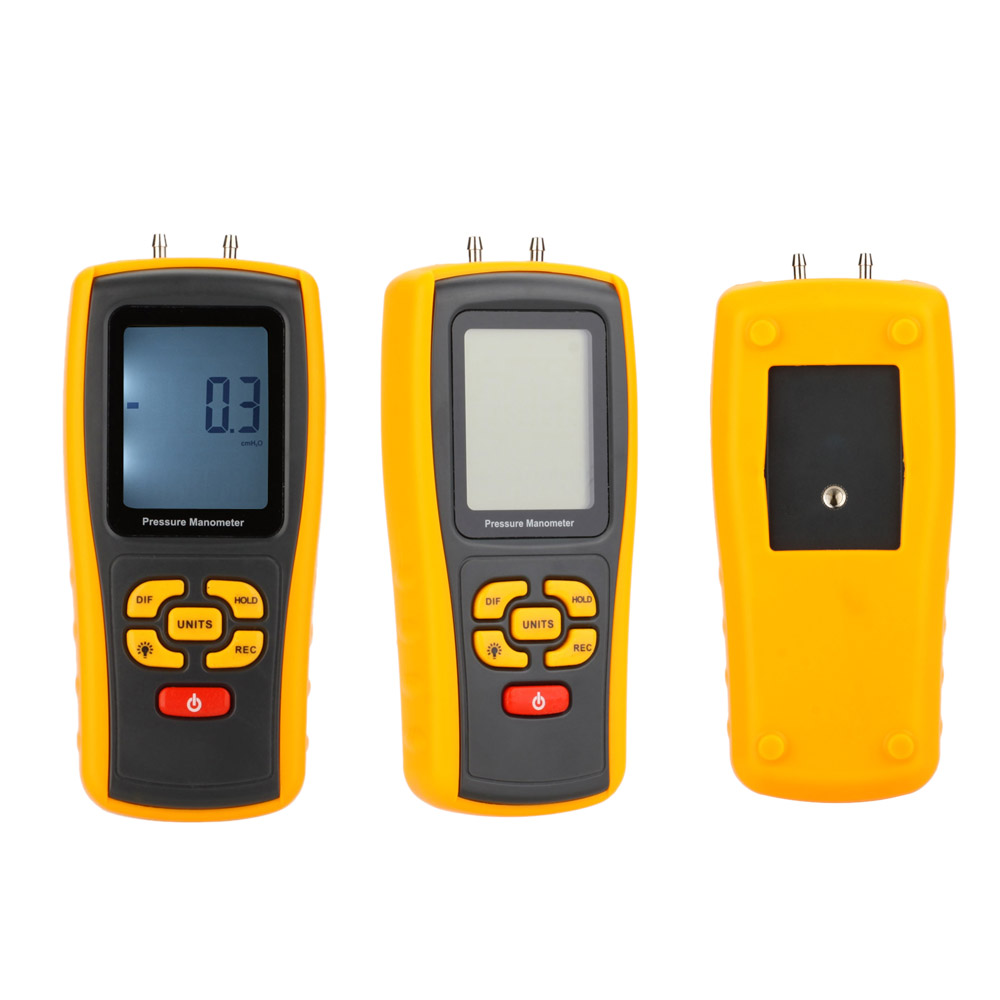

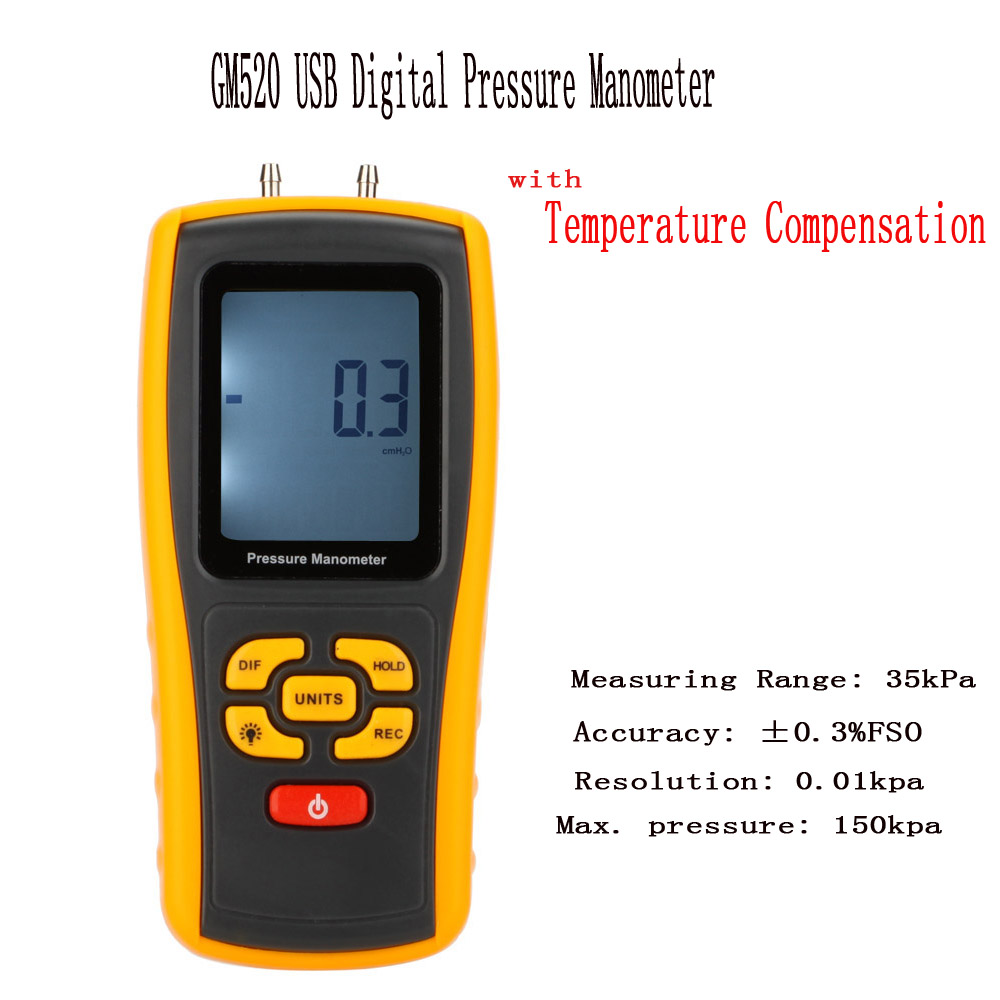

GM520 Portable USB Digital LCD Pressure Manometer Gauge Measuring Range 35kPa with Temperature Compensation
Compact design, pocket size, the meter is widely applied in measuring the pressure of fans, resistance/wind velocity/oven pressure/diffferential pressure of filter, and monitoring the gas content in the air in process of combustion.
Features:
Temperature Compensation Function.
LCD backlight display for easy reading.
Data hold function.
Differential mode and record mode.
USB port helps to export your data to your PC.
Data record and adjustment function.
Multi-unit selection.
Low battery indication and auto power off.
Specifications:
Measuring Range: 35kPa, resolution: 0.01kpa, max. pressure: 150kpa
Accuracy: 0.3%FSO(25?)
Repeatability: 0.2%(Max0.5%FSO)
Linear/lag: 0.29%FSO
Response time: typical 0.5 seconds
Beyond the up pressure range: Err.1
Beyond the down pressure range: Err.2
General Characteristics:
Working temperature: 0~50?
Storage temperature: -10~60?
Power: 4 * 1.5V AAA battery (not included)
Product Size: 17 * 7.5 * 3cm / 6.5 * 3 * 1.3in
Product Weight: 233g / 9.2oz
Package Size: 25.5 * 17.5 * 5cm / 10 * 6.8 * 2.0in
Package Weight: 454g / 1lb
Package List:
1 * Digital Pressure Manometer
4 * Plastic pipes
1 * USB cable
1 * English manual
1 * CD software
