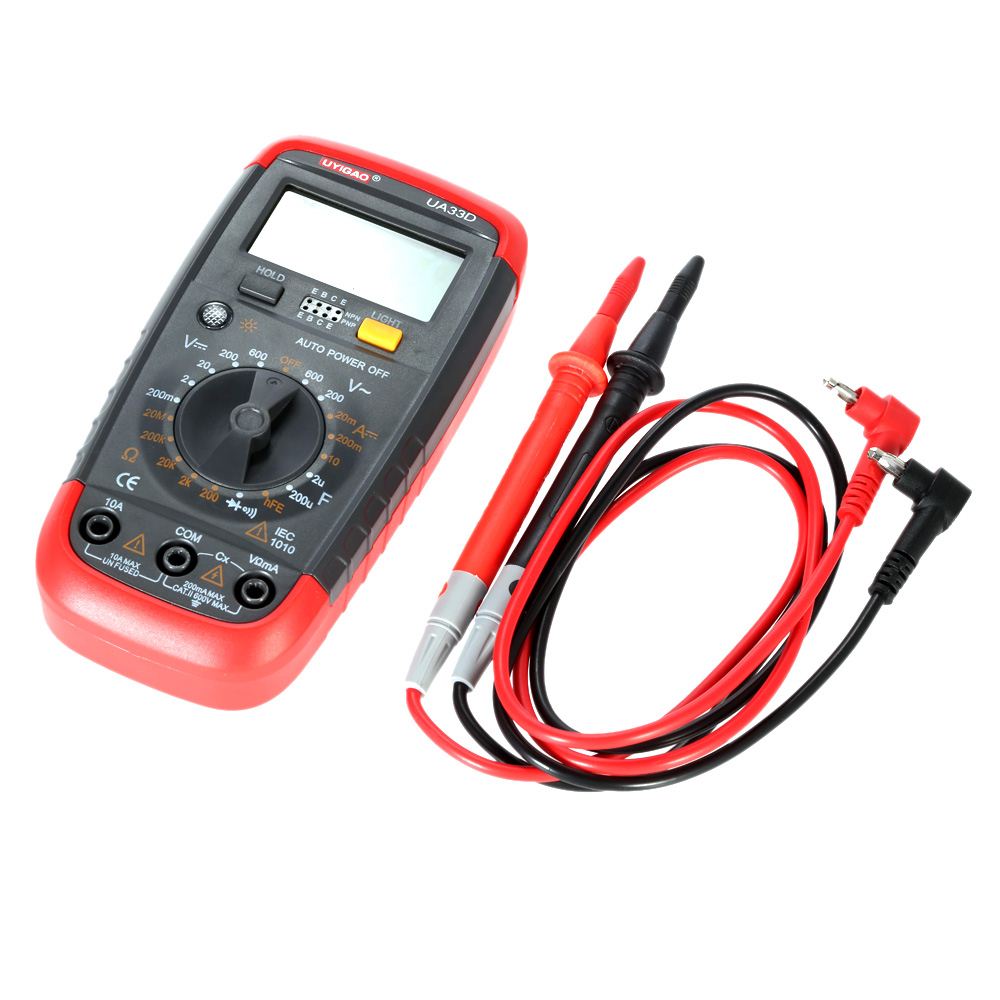

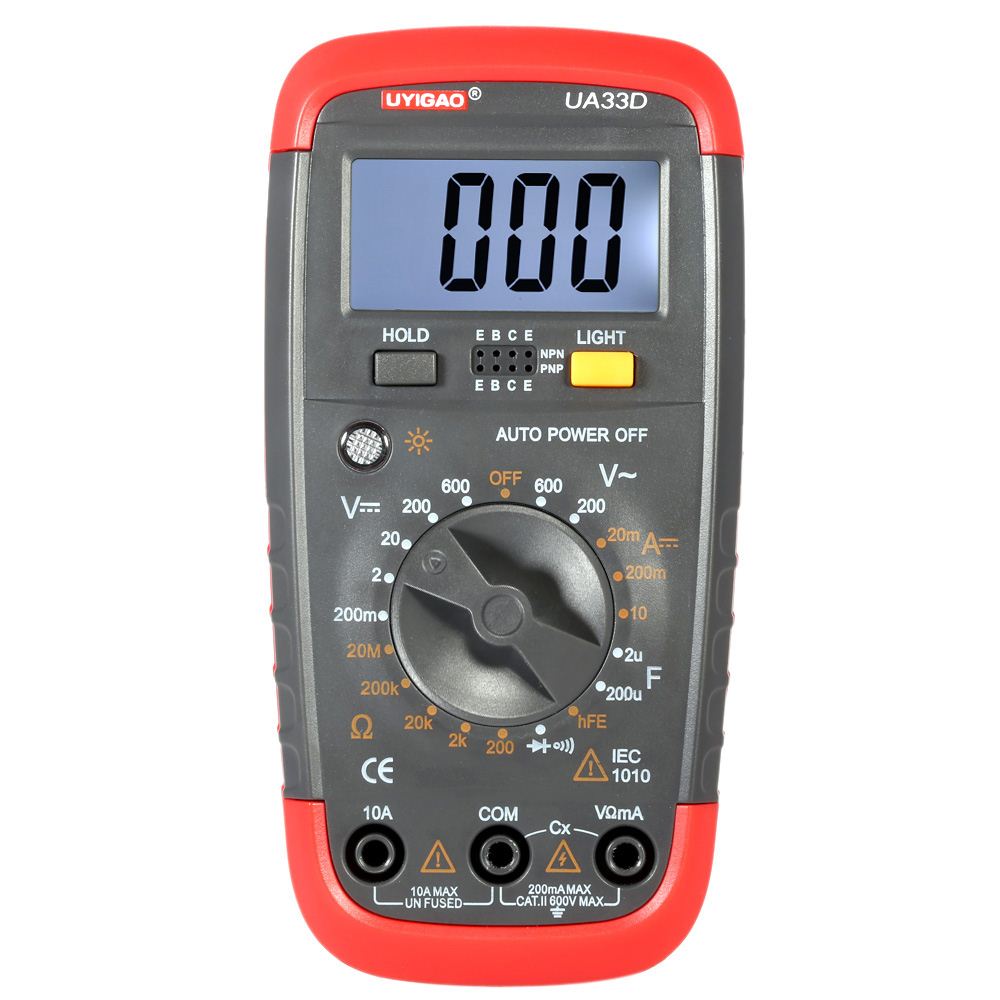

Mini Handheld Digital LCD Mulitimeter Capacitance Measurement DC/AC Voltage DC Current Resistance Meter Diode Continuity Tester

This multimeter with stable performance and accuracy measurement is highly reliable. It can be used to measure AC/DC voltage, DC current, resistance, it also can be used to test diode, continuity and hFE.

Features:
The multimeter can be used to measure AC/DC voltage, DC current, resistance.
The multimeter also can be used to test diode, continuity and hFE.
The model UA33D can measure capacitance and the model UA33C can measure temperature.
Large LCD display with white backlight, easy to read.
With data hold and auto power off function, convenient to use.
The model UA33C comes with a temperature probe.
Powered by a 9V battery(not included), low consumption.
Low battery indication.

Specifications:
Model: UA33C / UA33D(optional)
DC Voltage Range: 200mV / 2V / 20V / 200V / 600V
DC Voltage Resolution: 100V / 1mV / 10mV / 100mV / 1V
AC Voltage Range: 200V / 600V
AC Voltage Resolution: 100mV / 1V
DC Current Range: 200A / 200mA / 10A(UA33C) 20mA / 200mA / 10A(UA33D)
DC Current Resolution: 0.1A / 100A / 10mA(UA33C) 10A / 100A / 10mA(UA33D)
Resistance Range: 200 / 2000 / 20k / 200k / 20M / 200M(UA33C) 200 / 2000 / 20k / 200k / 20M(UA33D)
Resistance Resolution: 0.1 / 1 / 10 / 100 / 10k / 100k(UA33C) 0.1 / 1 / 10 / 100 / 10k(UA33D)
Capacitance Range: 2F / 200F(UA33D)
Capacitance Resolution: 1nF / 100nF(UA33D)
Temperature Range: -40~150C / 150~1000C(meter) -32~200C(probe) (UA33C)
Temperature Resolution: 1C(UA33C)
Power Supply: 1 * 9V Battery(not included)
Item Size: 14.5 * 7 * 3cm / 5.7 * 2.7 * 1.2in
Item Weight: 150g / 5.3oz(UA33C) 147g / 5.2oz(UA33D)
Package Size: 19.5 * 11 * 5cm / 7.7 * 4.3 * 1.9in
Package Weight: 269g / 9.5oz(UA33C) 252g / 8.9oz(UA33D)

Package List:
1 * Multimeter
1 * Pair of Test Probe
1 * Temperature Probe(only for UA33C)
1 * User Manual
