Click on the image to view the original image
- Model Number:
- DT850L
- Measuring Current Range:
- 0.1mA~200mA
- Measuring Voltage Range:
- 1mV~600V
- Measuring Resistance Range:
- 0.1?~2M?
- Measuring Capacitance Range:
- No
- Measuring Inductance Range:
- No
- Operating Temperature:
- 0 - 40
- Dimensions:
- 15.5 * 10 * 5cm / 6.1 * 4 * 2in
- Operating Mode:
- as the discription
- Display Type:
- Digital Display
- DIY Supplies:
- Electrical
- Product Name:
- Multimeter
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
| | |||||||||

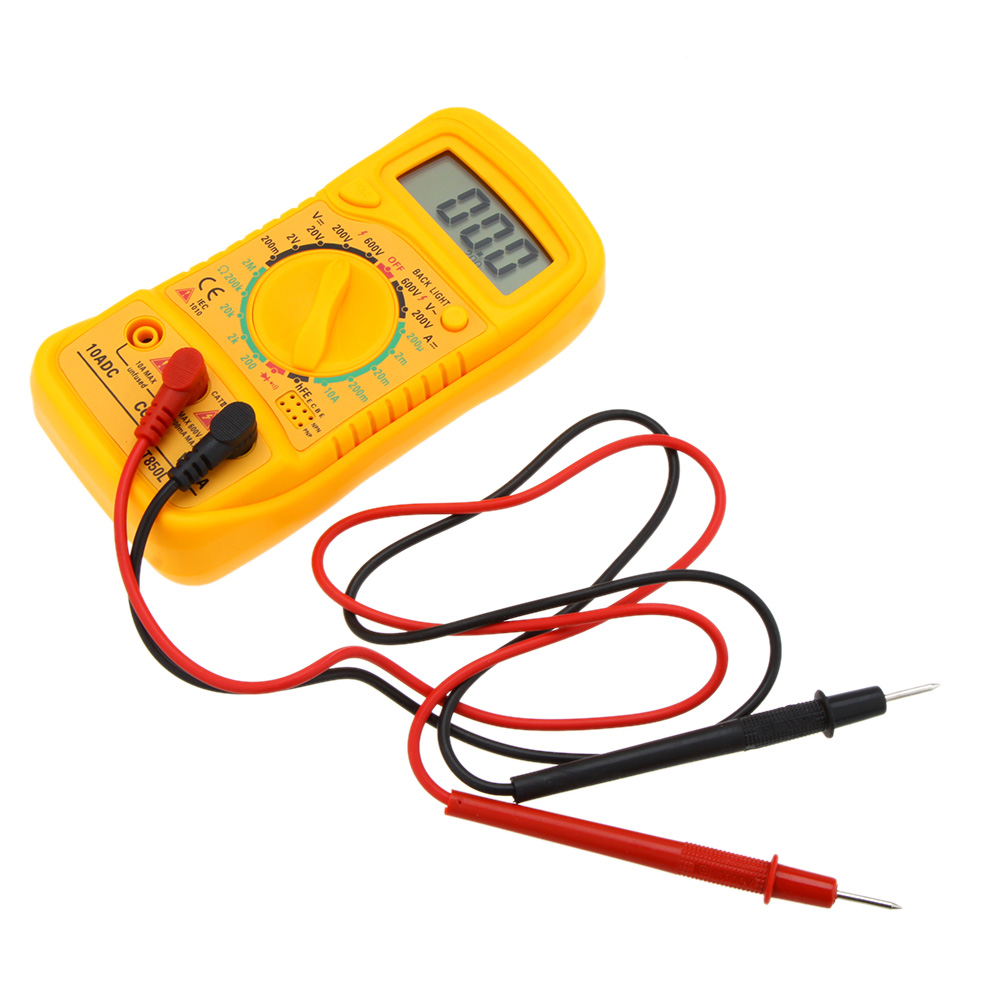

DT850L Portable Handheld Intelligent Multimeters Large LCD Display DMM Digital Multimeter Data Hold Multimetro with Test Lead
This instrument is a hand-held intelligent multifunctional measurement instrument. With large LCD digital display, overload protection and low battery indication, it"s very easy for the user to operate this kind of meter. Whether for professionals, factories, schools, amateurs or family, it"s an ideal multi-functional instrument.
Features:
Data hold function.
Battery under-voltage indication.
Backlight in the LCD display.
Specifications:
DC Voltage: 200mV / 100mV, 2V / 1mV, 20V / 10mV, 200V / 100mV, 600V / 1V
AC Voltage: 200V / 100mV, 600V / 1V
DC Current: 200mA / 0.1mA, 2mA / 1mA, 20mA / 10mA, 200mA / 100mA, 10A / 10mA
Resistance: 200? / 0.1?, 2k? / 1?, 20k? / 10?, 200k? / 100?, 2M? / 1K?
Transistor hFE Test: NPN & PNP 0~1000 1b=10mA Vce=3V
Temperature: -20~1370?/ 1?
Power Supply: 9V 6F22 (not included)
Package Information:
Package Size: 15.5 * 10 * 5cm / 6.1 * 4 * 2in
Package Weight: 201g / 6.9oz ?without battery?
Colorful Gift Box
Package List:
1 * DT850L Digital Multimeter
1 * Pair Test Leads
1 * User Manual
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn"t receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
5. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
