Click on the image to view the original image
- Place of Origin:
- china
- Brand Name:
- d
- Model Number:
- as the description
- Measuring Current Range:
- 6A--900A
- Measuring Voltage Range:
- 6V--900V
- Measuring Resistance Range:
- 6k 60K 600k 6M 10m
- Measuring Capacitance Range:
- as the description
- Measuring Inductance Range:
- as the description
- Operating Temperature:
- 0 - 40
- Dimensions:
- as the description
- Operating Mode:
- as the description
- Display Type:
- Digital Display
- DIY Supplies:
- Electrical
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 1X1X1 cm
- Single gross weight:
- 0.25 kg
- Lead Time:
Quantity(Piece) 1 - 10000 >10000 Est. Time(days) 7 To be negotiated

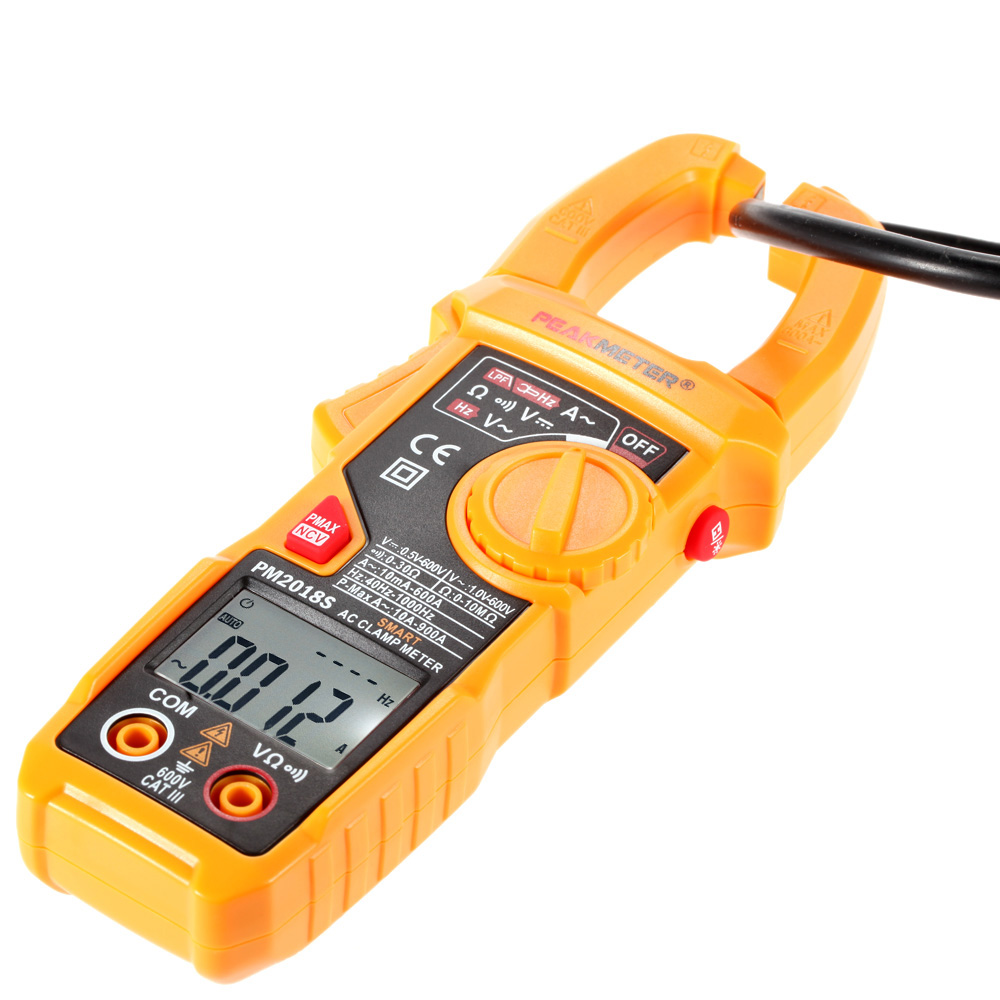

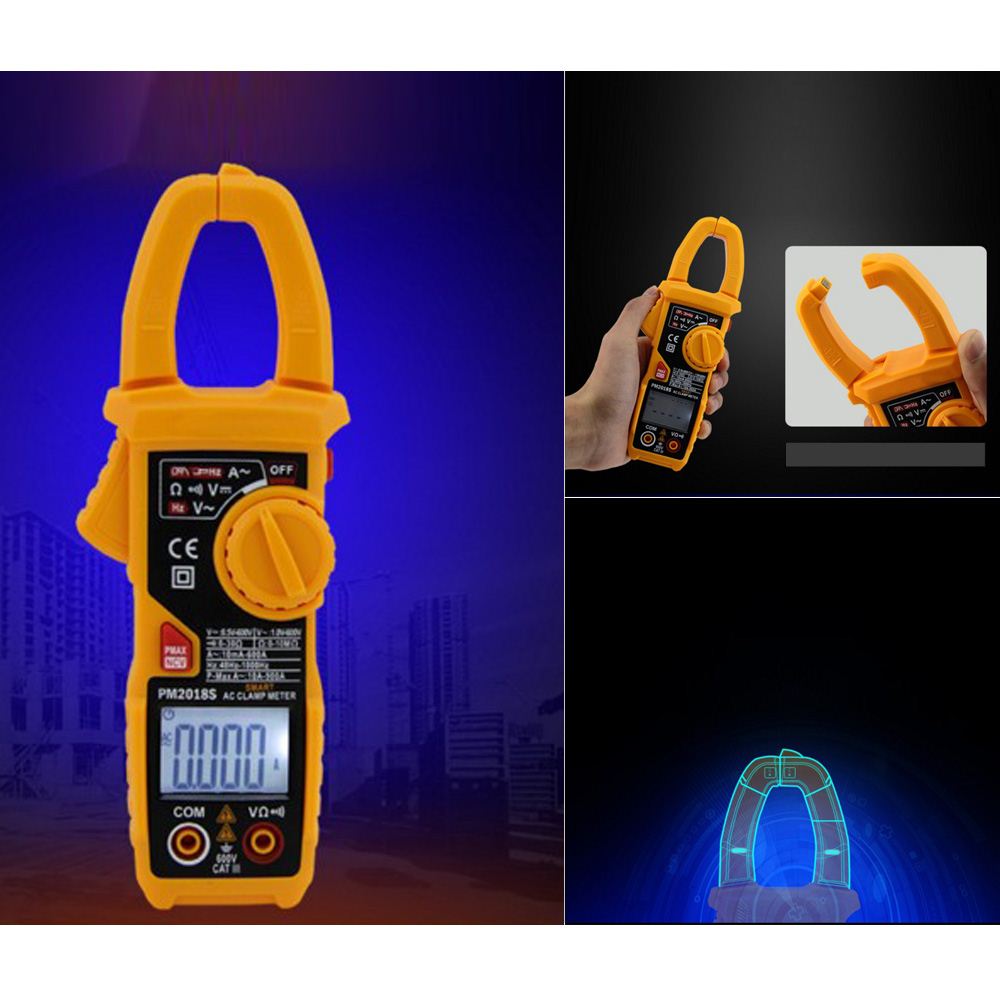

Professional Smart Digital Current Clamp Meter LCD Multimeter Voltage Resistance Continuity Measurement Tester Automatic Range
This clamp meter is a portable, handheld professional meter that measures AC/DC voltage, AC current, resistance, capacitance, as well as continuity and diode test. This meter is easy to use with one hand, suitable for professional users or amateurs, and perfect for school or home use.
Features:
Smart identification, automatically select measurement function and range.
Suitable for electrical equipment testing and maintenance.
Continuity test, duty cycle test & diode test.
Overload protection for the whole measurement range.
LCD display with backlight, convenient to operate and read.
Can measure AC/DC voltage, AC current, resistance, frequency, etc.
Data hold, low battery indication and overload indication.
Auto power off function.
Specifications:
| Function | Measurement Range | Resolution | Accuracy |
| AC Current | 6A | 0.001A | (2.5% + 8) |
| 60A | 0.01A | ||
| 400A | 0.1A | ||
| 400~600A | 0.1A | (3% + 10) | |
| Maximum Peak Current | 900A | 0.1A | (10% + 10) |
| DC Voltage | 6V | 0.001V | (0.5% + 3) |
| 60V | 0.01V | ||
| 600V | 0.1V | ||
| AC Voltage | 6V | 0.001V | (0.8% + 5) |
| 60V | 0.01V | ||
| 600V | 0.1V | ||
| Clamp Head Frequency | 60Hz | 0.1Hz | (1.0% + 5) |
| 1000Hz | 1Hz | ||
| Pass V position | 60Hz | 0.1Hz | (1.0% + 5) |
| 1000Hz | 1Hz | ||
| Resistance | 6k | 0.001k | (0.8% + 3) |
| 60k | 0.01k | ||
| 600k | 0.1k | ||
| 6m | 0.001k | ||
| 10m | 0.01k | ||
| Line On-off Test | 1 | If the resistance of circuit being measured is less tdan 50W, tden tde beeper in tde meter may sound. |
Max. Display Value: 5999
Jaw Opening: 26mm / 1.02"
Range: Automatic
Maximum allowable voltage between the measuring terminal and the Earth: 600V DC or 600V AC
Work height: Maximum 2000m / 2187yd
Sampling time: about 3 times/s
Unit display: with function and quantity of electricity unit display
Automatic Power off time: 10 minutes
Temperature coefficient: < 0.1×accuracy degree/ Centigrade Degrees
Power Supply: 2 * 1.5V AAA Batteries(Not Included)
Operating Temperature: 18 Centigrade Degrees ~ 28 Centigrade Degrees / 64.4 ~ 82.4 Centigrade Degrees
Storage Temperature: -10 Centigrade Degrees ~ 50 Centigrade Degrees / 14 ~ 122 Fahrenheit
Item Size: 190 * 70 * 30mm / 7.5 * 2.8 * 1.2in
Item Weight: 174g / 6.1oz
Package Size: 20.5 * 11.5 * 4cm / 8.1 * 4.5 * 1.6in
Package Weight: 350g / 12.3oz
Package List:
1 * Clamp Meter
1 * Pair of Test Leads
1 * Storage Bag
1 * User Manual
