- Model Number:
- DMX LED Controller
- Max. Load Power:
- 576W
- Material:
- Metal
- Power Source:
- DC
- Voltage:
- 12-24V
- Wattage:
- 288W- 576W
- Connection Mode:
- Common Anode(+)
- Features:
- Two signal interfaces
- Warranty:
- other
- Oscillation frequency:
- other
- Remote Distance:
- a long distance
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- shenzhen
Controled Method: DMX-512 digital control
Applicable Lights: RGB 5050 3528 LED Strip Light
Color: Black
Certification: CE,RoHS
Item Type: RGB Controler
1

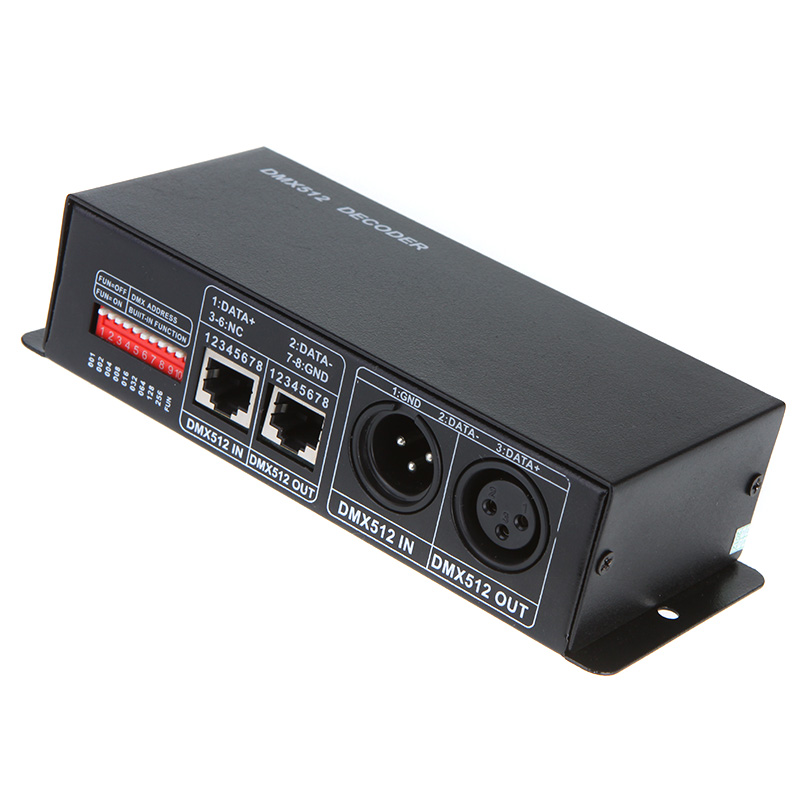

DC12V-24V DMX-512 digital control signal DMX Decoder LED Controller Receives standard 3Channel RGB Controler for LED Strip Light
DC 12V-24V 3 Channel DMX Decoder LED Controller for RGB 5050 3528 LED Strip Light
Features:
Receives standard DMX-512 digital control signal and transformrd it into PWM signal to adjust LED.
You could connect with DMX digital console to achieve RGB dimming functions.
DMX address can be set through dip switch.

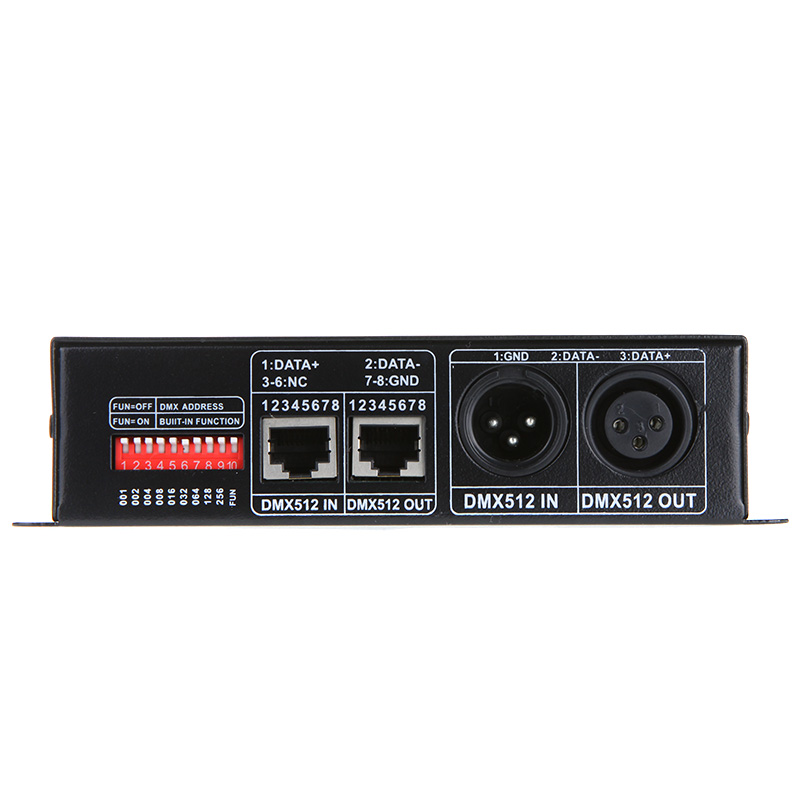

Two signal interfaces: XLR-3 and RJ45.
Up to 15 modes and 31 steps speeds for your options.
Specifications:
Input voltage: DC12~24V
Max output current: 8A (each channel)
Max output power: 288W~ 576W
Output: 3CH
Connection mode: Common Anode(+)
Working temperature: -20-60
Material: Metal
Product size: 16.5 * 6.5 * 4cm/ 6.5 * 2.6 * 1.6in
Product weight: 310g/ 10.9oz
Package size: 18 * 7.7 * 5cm/ 7.1 * 3.0 * 2.0in
Package weight: 400g/ 14.1oz
1. DMX signal can be received when FUN(10)=OFF.
2. Built-in function is activated when FUN(10)=ON, the following functions can be set using address codes DIP switch.
Mode selection:
| No. | 1 | 2 | 3 | 4 | Mode | No. | 1 | 2 | 3 | 4 | Mode |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | OFF | 8 | 0 | 0 | 0 | 1 | 3 color jump |
| 1 | 1 | 0 | 0 | 0 | Static ree | 9 | 1 | 0 | 0 | 1 | 7 color jump |
| 2 | 0 | 1 | 0 | 0 | Static green | 10 | 0 | 1 | 0 | 1 | 3 color gradual |
| 3 | 1 | 1 | 0 | 0 | Static blue | 11 | 1 | 1 | 0 | 1 | 7 color gradual |
| 4 | 0 | 0 | 1 | 0 | Static yellow | 12 | 0 | 0 | 1 | 1 | Red green color change |
| 5 | 1 | 0 | 1 | 0 | Static purple | 13 | 1 | 0 | 1 | 1 | Red blue color change |
| 6 | 0 | 1 | 1 | 0 | Static cyan | 14 | 0 | 1 | 1 | 1 | Blue green color change |
| 7 | 1 | 1 | 1 | 0 | Static white | 15 | 1 | 1 | 1 | 1 | 7 color smooth |
Speed selection (at dynamic mode) :
| No. | 5 | 6 | 7 | 8 | 9 | Speed | No. | 5 | 6 | 7 | 8 | 9 | Speed |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | 0 | 0 Steps | 8 | 0 | 0 | 0 | 1 | 0 | 8 Steps |
| 1 | 1 | 0 | 0 | 0 | 0 | 1 Steps | 9 | 1 | 0 | 0 | 1 | 0 | 9 Steps |
| 2 | 0 | 1 | 0 | 0 | 0 | 2 Steps | 10 | 0 | 1 | 0 | 1 | 0 | 10 Steps |
| 3 | 1 | 1 | 0 | 0 | 0 | 3 Steps | 11 | 1 | 1 | 0 | 1 | 0 | 11 Steps |
| 4 | 0 | 0 | 1 | 0 | 0 | 4 Steps | ..... | ..... | ..... | ..... | ..... | ..... | ..... |
| 5 | 1 | 0 | 1 | 0 | 0 | 5 Steps | 29 | 1 | 0 | 1 | 1 | 1 | 29 Steps |
| 6 | 0 | 1 | 1 | 0 | 0 | 6 Steps | 30 | 0 | 1 | 1 | 1 | 1 | 30 Steps |
| 7 | 1 | 1 | 1 | 0 | 0 | 7 Steps | 31 | 1 | 1 | 1 | 1 | 1 | 31 Steps |
Note:
"1"="ON"; "0"= OFF
Package list:
1 * DMX decoder
