Overview:

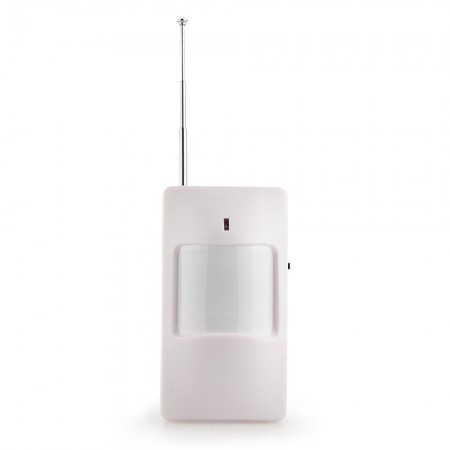

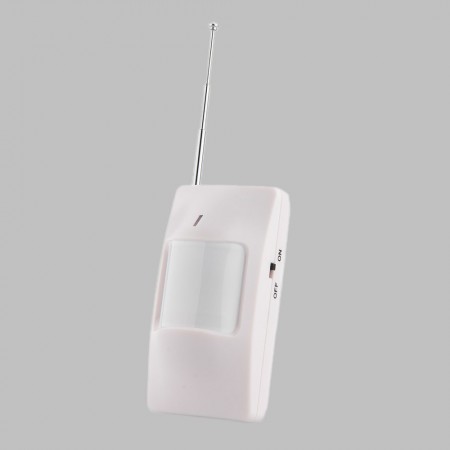

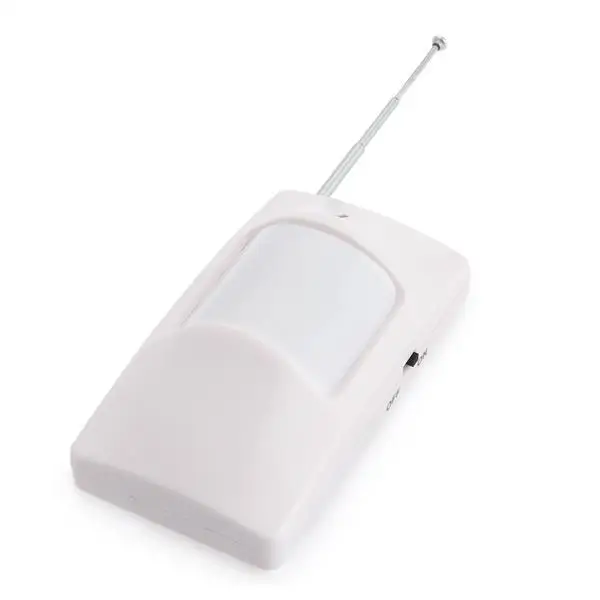

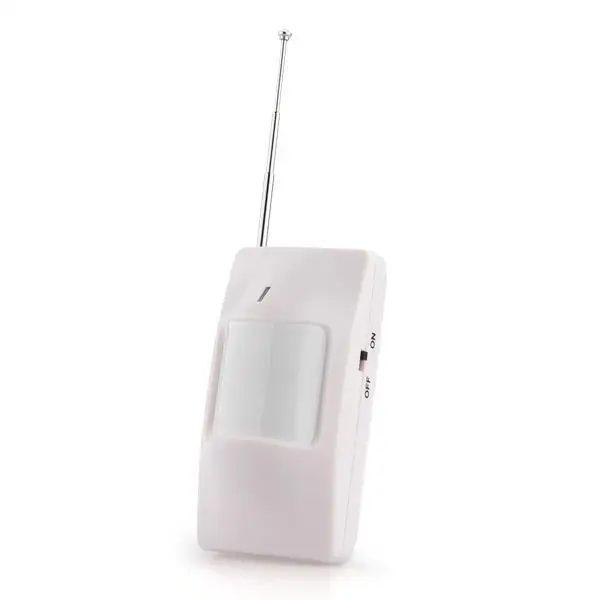

The Passive Infrared (PIR) Motion Sensor detects infrared energy given off by persons in a secured area. An alarm is signaled only when the sensor is armed and the viewed energy has the correct temperature, motion, and timing associated with an intruder, thus safeguarding against false alarms.
Specification:
Power Requirements
DC9V
Power Requirements
7mA~8mA (While sending)
Power Requirements
45uA(While monitor)
Operating Freqency
4330.2Mhz
The largest coverage
12*12m
Visual Angle
110

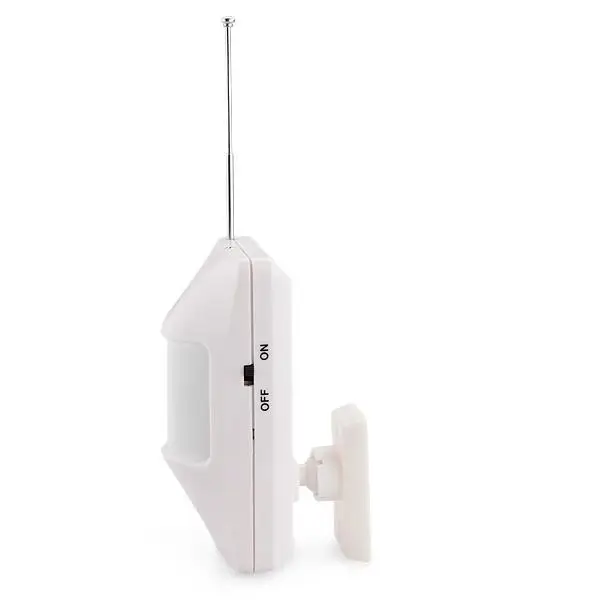

Bracket Adjustable Angle
-45 to +45(Horizontal line)
Bracket Adjustable Angle
-15 to +45(Vertical line)
Response Time
6s
Coding Type
Fied Code
Dimension(LWH)
1106548mm
Lifespan of battery
It can be used half year if send 20 times everyday
Operating Temperature
-10~+50
Shell Colour
White

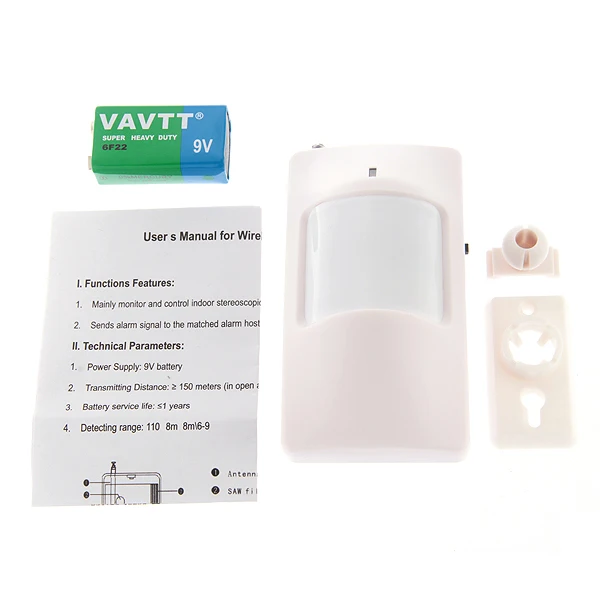

1 Sensor
1 Battery
1 Bracket
3 Screws
13 Jumper
1 Manual
In original package
