Features:
Ø Metal structure, anti-vandal, simple & safe design.
Ø Supports fingerprint & ID card.
Ø Using the dark background imaging technique, make the dry/wet fingerprints are always available
Ø Easy to be recognized in the variant light conditions ecept the direct solar radiation.
Ø Can add delete the users fingerprints by manager fingerprints/cards very quickly.
Ø Infrared remote control for programming.
Ø Anti-magnetic, prevent opening door by magnetic illegally.
Ø Built-in PIR (passive infrared) to wake up the device from sleep mode.
Ø With Wiegand 26 input & output.
Ø Supports: inter-connected; inter-locked, door ajar, forced, shunt, monitor, and secure mode.
Ø Compliant with CE certificate.
Specifications:
Specifications
Operating Voltage:DC+12V10%
Card Type:125KHZ EM card
Card User:2,000
Fingerprint User:1,000
Manager Cards:2
Fingerprint Input Time:<1s
Identification Time:<1s
FAR:<0.0001%
FRR:<0.1%
Sleeping Current:20mA
Stay Current: 80mA
Reading Range:2-6cm
Reading Time:0.1s
Door Open Time:0-99s
Operating Temperature:-2060
Operating Humidity:20-95%
Anti-static:15KV
Dimension:115(L) ×70(W) ×33(H) mm
Connection Diagram:

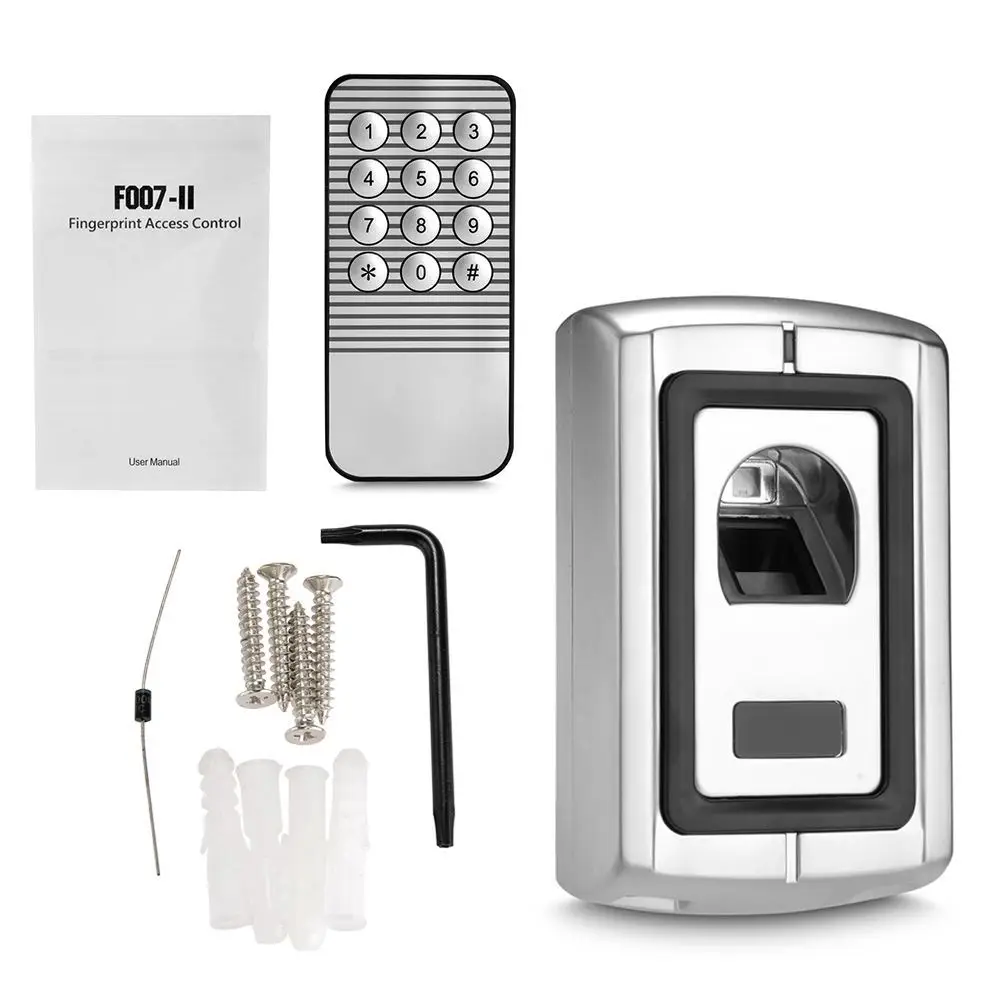

1 Fingerprint Device ( Including connecting cable )
1 English User Manual

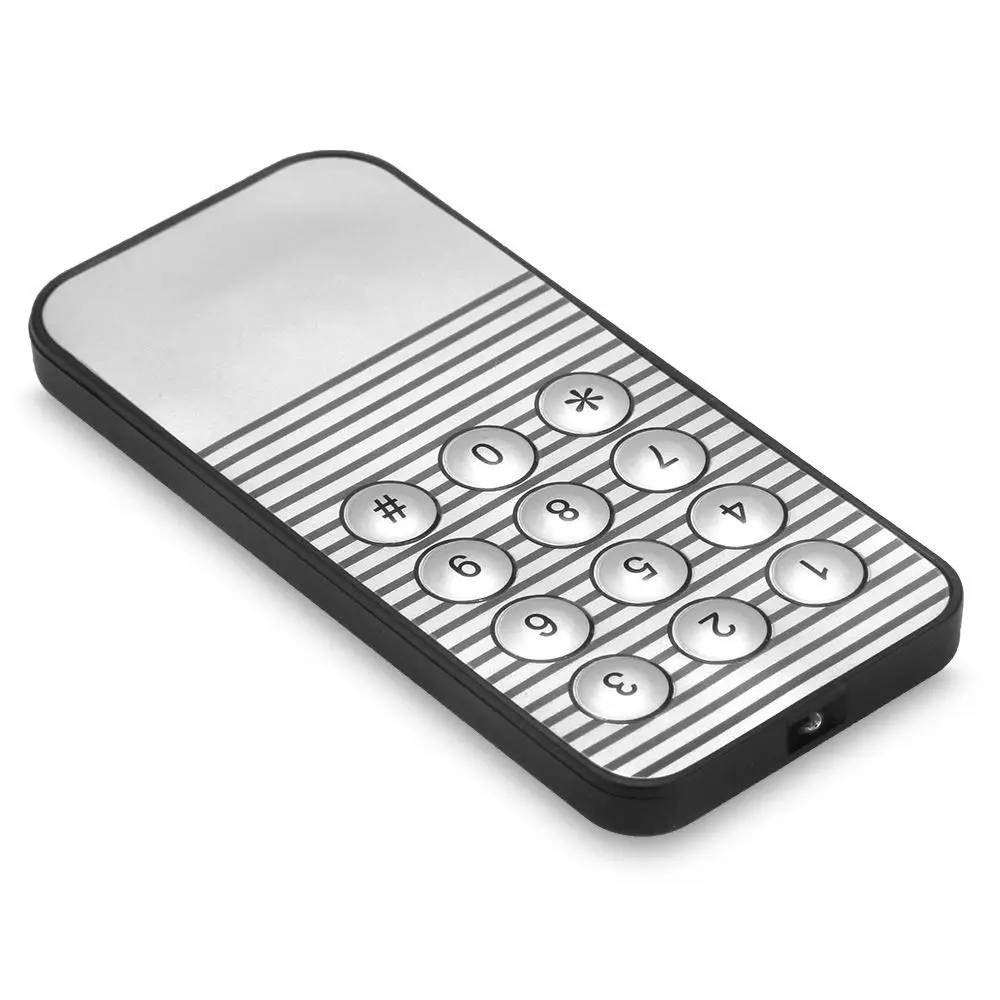

1 Remote Control ( including button battery )
1 Installation bag
In original package
