Introduction:

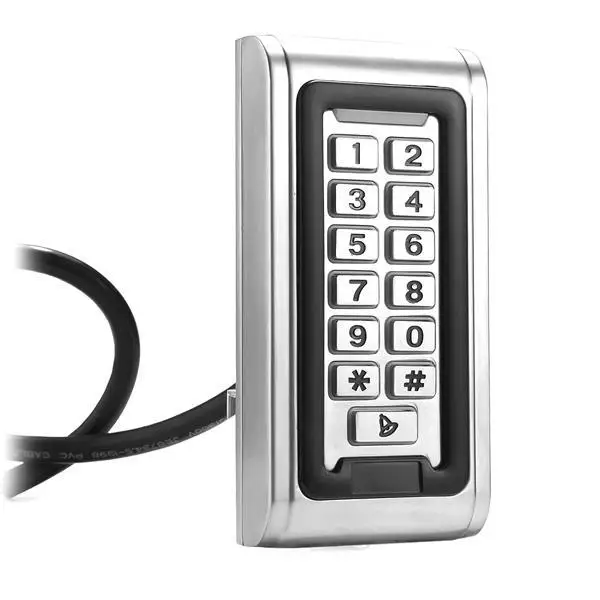

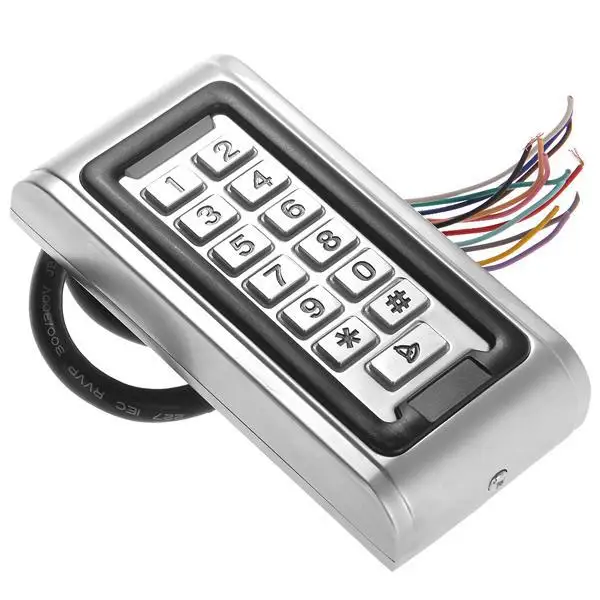

It is a metal cased, anti-vandal, standalone controller, with built-in proimity card reader module and keypad. When press key or read card, the key value or card number will be sent out via wiegand interface. It is great for high traffic and etremely harsh environments, the unit is fully sealed, epoy filled, advanced programming options as well as fleible operation models.
Feature:
- With one built-in EM (JAC117E) or HID(JAC117H) card reader module, 1000 users capacity
- Open door with 3 models: PIN only, Pro only and Pro+PIN
- Enroll/delete card by keypad or master card, master can be made by user
- Delete card by input card number from keypad directly
- One eternal Wiegand26 interface, may use JAC117 with different RFID technology.
- Optical Tamp detection and buzzer alarm function.
- Door release time from 1 to 25.5 seconds
- Full potting with epoy, IP65 waterproof
- 1000V Surge protection, 2000V ESD protection hardware design
Specification:
Power requirements: 7-36 VDC at 100 mA, A linear regulator is recommended
Reader range: Up to 80 mm
Frequency: 125KHz
Working temperature: -20 degrees Celsius to 70 degrees Celsius
Working humidity: 5%-95% relative humidity non-condensing
Audio/Visual indication: Green & Red and Buzzer signal output
Output relay: 3A , Dry C type
Input: One eternal wiegand reader, one push button
Size: 120 58 20 mm
Weight: 500g

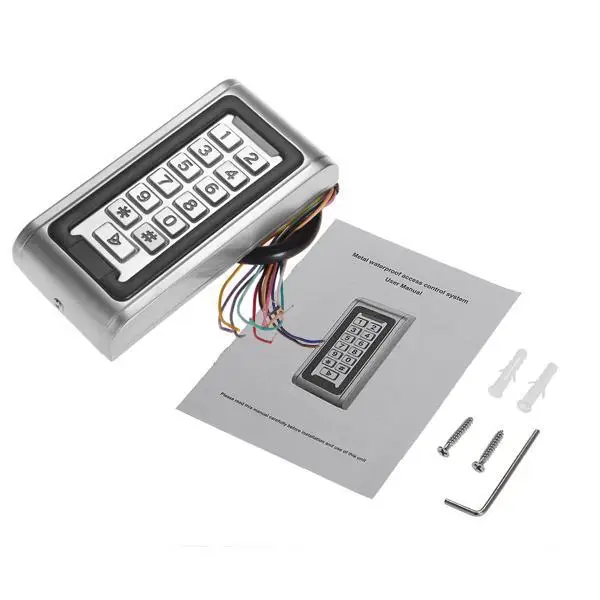

1 Door Access Control Keypad
2 Fiing Screws
1 Iron Rod
1 User Manual
In original package
