Features:
3.5 inch TFT screen
Automatically take photos of visitors
Monitor and dont disturb
Wide view angle 170 degree
Saving-power design
DIY installation
Easier and safer to view who is outside.
Effective solution to the elders poor eyesight
Effective solution to the kids not tall enough
Effective solution to the danger of being anti-peep
99% family, Door Manufacturer , Hotel Industry , Security Industry
Operation:
Peephole barrel (diameter) :12-30 mm
Fits any door: 42-72 or 60-90mm ( thickness )
Screen will automatically be in sleep model after 10 seconds
Once press monitor button.
Monitor outside anytime when press monitor button, each time will automatically take photo.
Built-memory, can take 100pcs photos, cycle replacement
When visitor press call button, screen automatically turn on and take photo .
Press UP/DOWN key to view photos any time. Or select preview mode in menu, it will enter the slide mode to play automatically.
Menu setting (menu adjustment include: brightness adjustment, contract adjustment, color adjustment, languages election, date, time, photo"s checking, delete photos)
3pcs AA battery, support to view outside for more than 1200times.
Dont disturb function: In sleep model, long hold monitor button for about 10seconds, red led light at right bottom of screen will flash, successfully set dont disturb function . In dont disturb model, when anyone press call button ,no ring sound , no view outside. Canceldont disturb: long hold for about 10 seconds until screen turns on with video.
Si Languages: Spanish, Germany, Dutch, Chinese, France, English
DIY installation:
Step1. Insert Peephole lens in the outside of the door.
Step2. Insert Peephole barrel through base Flange and insert both into the hole on the inside of the door.
Step 3. Put 3pcs AA battery in Peephole viewer, Connect the 4P cable with viewer, then fi it on base flange by inserting match hole .

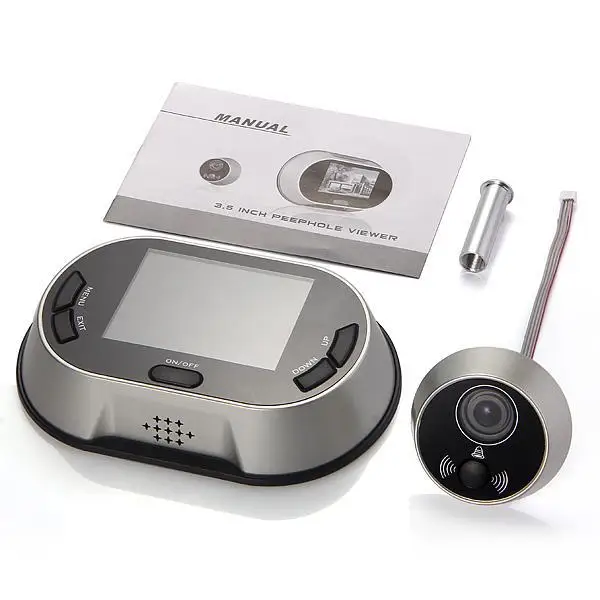

1 Indoor Machine
1 Outdoor Machine
1 Accessory
1 English User Guide
Packaged in paper bo
