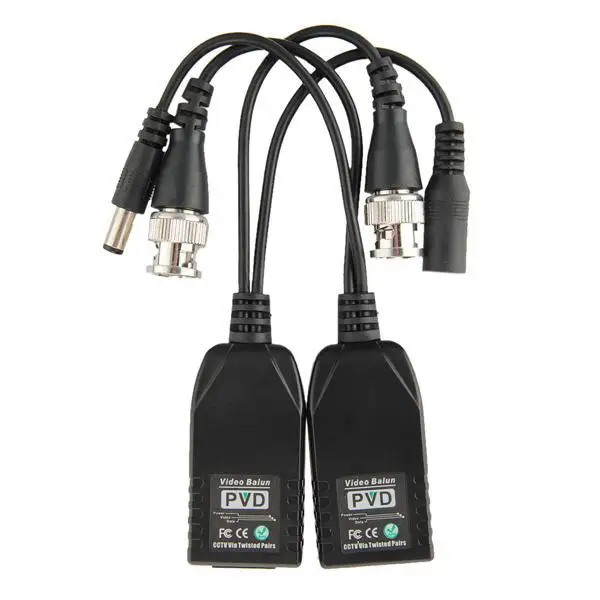

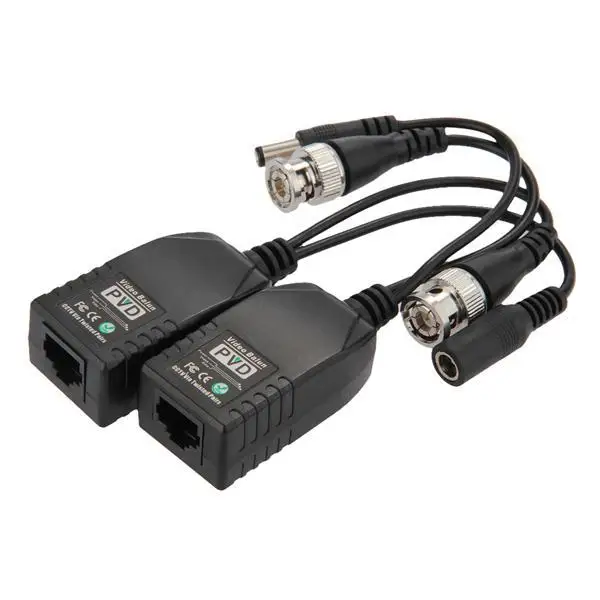

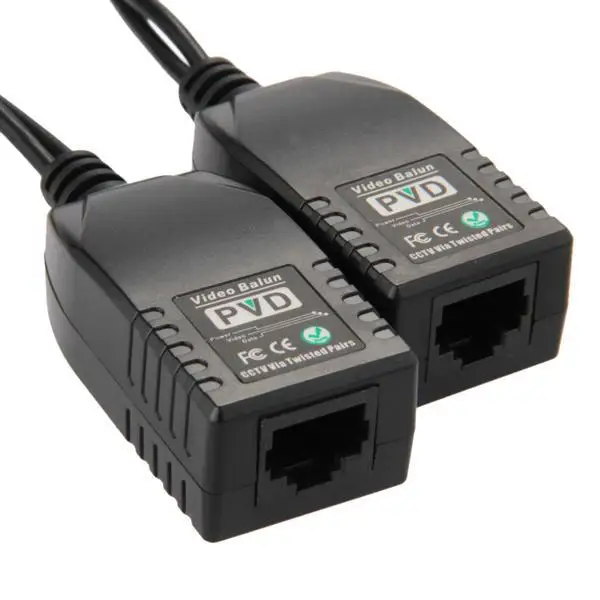

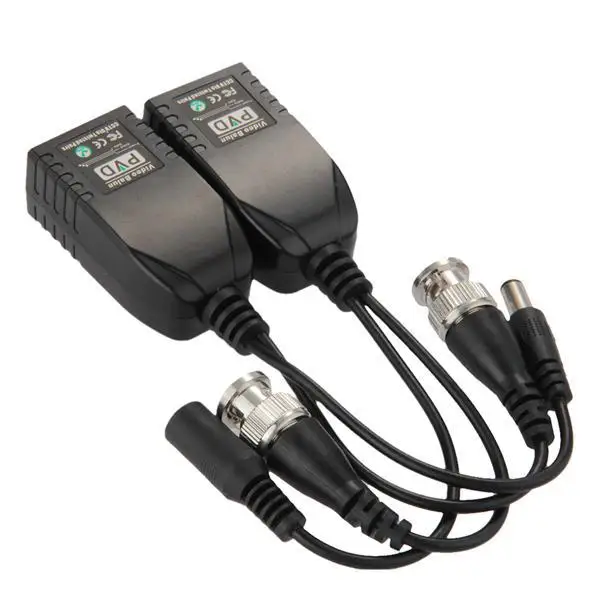

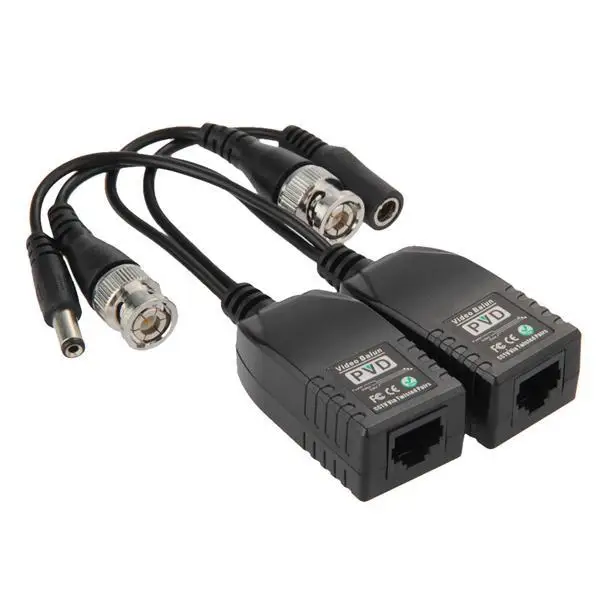

Power-Video-Audio/Data signals are routed via UTP and RJ45. The unit is a passive(non-amplified)device that allows the transmission of real-time monochrome or color video over Unshielded Twisted-Pair(UTP)telephone wire
NTSC,PAL and SECAM video formats
60 dB crosstalk and noise immunity
Compact size and easy installation
Built-in transient suppression protection
Save cable cost 30%-50%
Frequency response: DC-8MHZ
Attenuation: 0.5dB typ
CMRR(Common Mode Rejection Ration): 60DB
Impedance: BNC: 75; RJ45: 100
Working temperature :10 to 70 celsius degree
Storage temperature :30 to 70 celsius degree
Humidity: 0 to 95%
Dimension: 52 28 21 mm (with 14cm cable)
Material: ABS Plastic
2 Power Video Data transceiver
In blister package
NTSC,PAL and SECAM video formats
60 dB crosstalk and noise immunity
Compact size and easy installation
Built-in transient suppression protection
Save cable cost 30%-50%
Frequency response: DC-8MHZ
Attenuation: 0.5dB typ
CMRR(Common Mode Rejection Ration): 60DB
Impedance: BNC: 75; RJ45: 100
Working temperature :10 to 70 celsius degree
Storage temperature :30 to 70 celsius degree
Humidity: 0 to 95%
Dimension: 52 28 21 mm (with 14cm cable)
Material: ABS Plastic
2 Power Video Data transceiver
In blister package
