Standard alone RFID access controller with electric strike lock for DIY

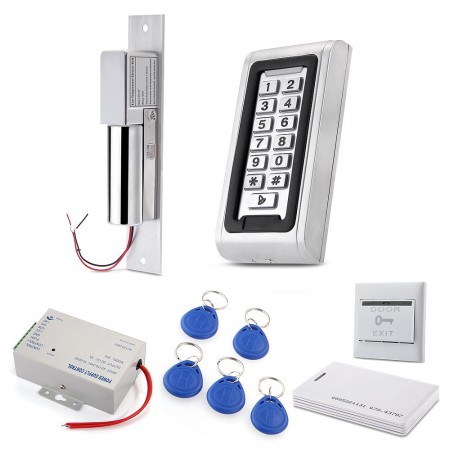

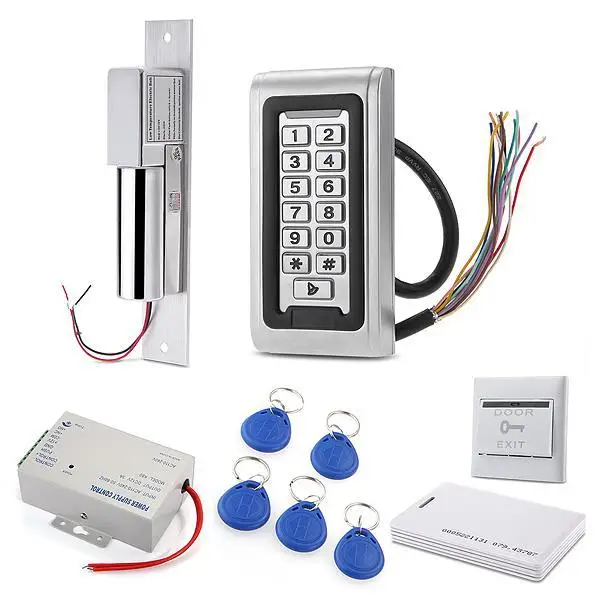

Metal waterproof access controller kits(Electric bolt, 10 EM-ID card, power supply)

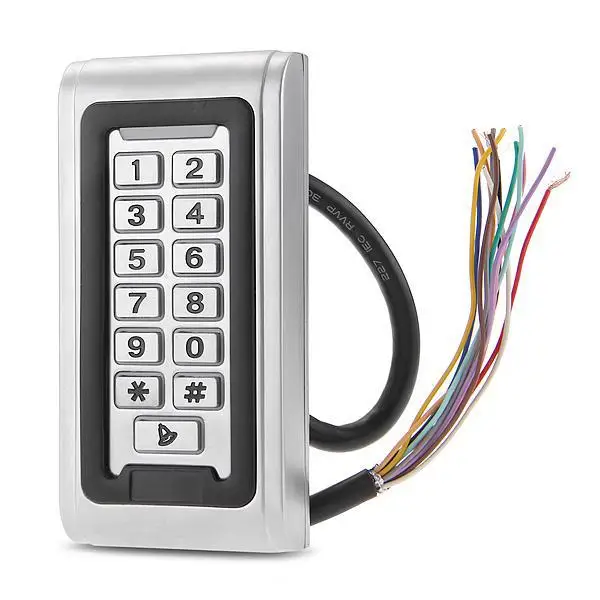

Feature
1) With one Built-in EM (JAC117E), 1000 users capacity
2) Open door with 3 models: PIN only, Pro only and Pro+PIN
3) Enroll/delete card by keypad or master card,master can be made by userself
4) Delete card by input card number from keypad directly
5) One eternal Wiegand26 interface.,
6) Optical Tamp detection and buzzer alarm function.
7) Door release time from 1 to 25.5 seconds
8) Full potting with epoy, IP65 waterproof
9) 1000V Suger protection, 2000V ESD protection hardware design
Specification
Power requirements
7-36 VDC at 100 mA, A linear regulator is recommended
Reader range
Upto 80 mm
Frequency
125KHz
Operation temperature
-2070
operationg humidity
5%-95% relative humidity non-condensing
Audio/Visual Indication
Green & Red and Buzzer signal output

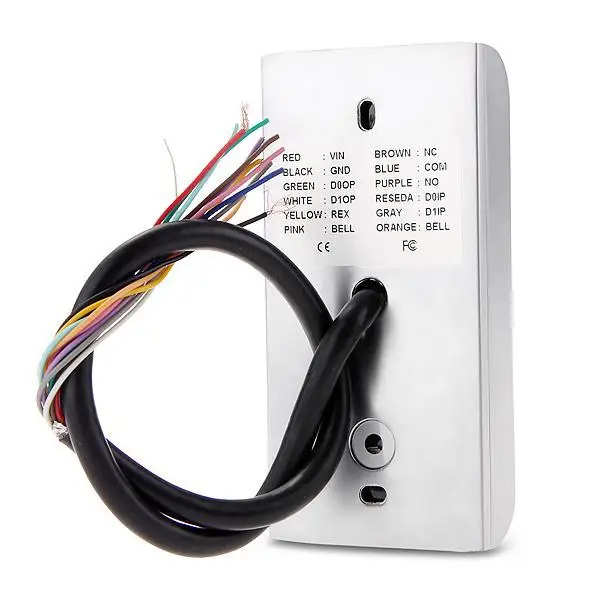

Output relay
3A , Dry C type
INPUT
One eternal wiegand reader, one push button
Size
120mm 58mm 20 mm
Weight
500gram
Electric Bolt
Face Plate: 205L35W41H(mm)
Strike: 90L25W2H(mm)
Bolt: 16mmDIA,stainless steel 16mm throw
Voltage: DC12V,Start Current: 900mA,tandby Current: 150mA
Solid Bolt: polishing housing, 800Kg Holding Force
Suitable For: Woodeng Door,Glass Door,Metal Door,Glass Door
Induction Distance:8mm
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished
ABS Plastic button
Electrical Characteristics: maimum current : 3A 36VDC
Contact output: NO / NC / COM contacts
Application type: suitable for hollow door frame and the use of embedded electrical bo

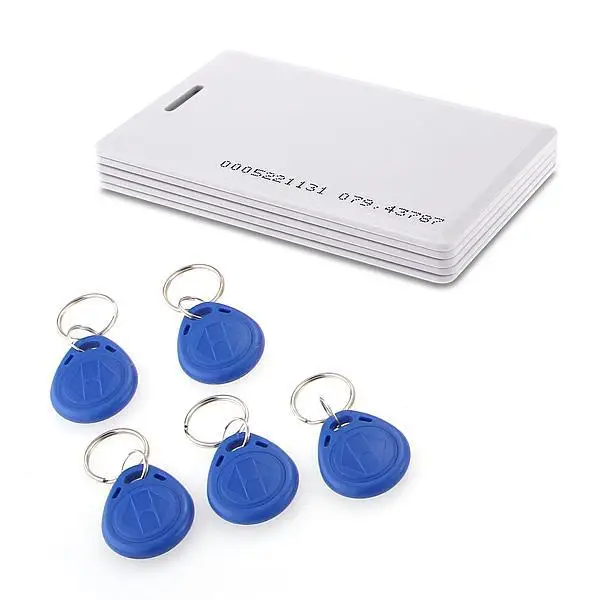

RFID EM Card
Standard color : white
Material:PVC(glossy or matt surface)
MagStripe:4000 Oe at ISO position.
IC Available at 125KHz nominal

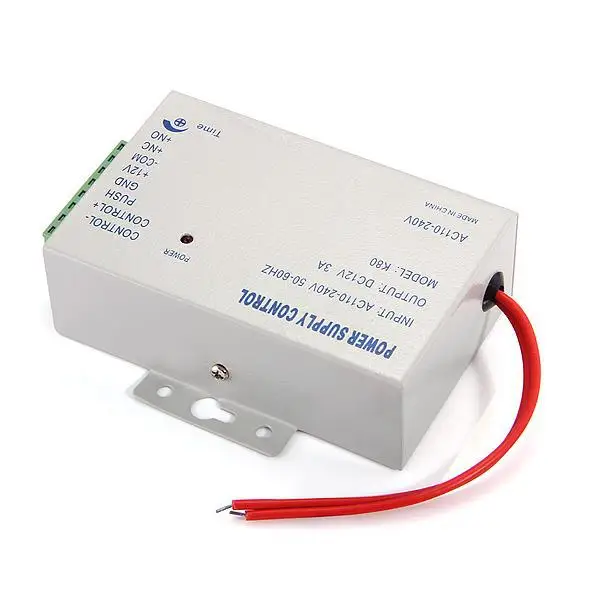

Power supply for access controller
Input voltage: AC 100V - 240V, 50Hz - 60Hz
Output Voltage: 12VDC
Output current: 3A
Power: 36W
Suitable: Electic Locks
Time: 0-10Sec.

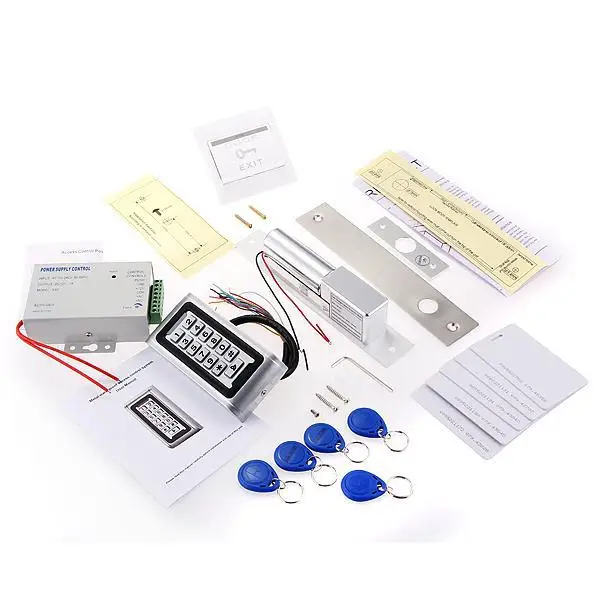

1 Set Electric bolt lock (1 Electric bolt lock, 2 Accessory, 1 Bag screws, 1 Drawing, 1 English user manual)
5 Keyfob
5 Magnetic card
1 Set Door access power supply (1 Door access power supply , 1 English user manual, in white bo)

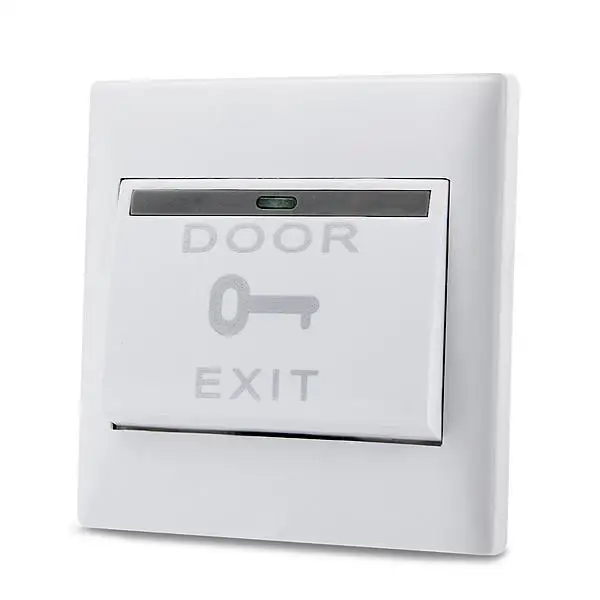

1 Set Door switch (1 Door switch, 1 Bag screws)
1 Set Access controller (1 Access controller, 1 English user manual, 1 Bag screws, 1 Wall stickers drawing)
Packed in carton
