- Model Number:
- K9604-PA3013-W
- Cable Length:
- None
- Resolution:
- 720P
- DVR:
- 4CH NVR
- Camera:
- 4PCS 1200TVL IP Camera
- Sensor:
- 1/4 inch CMOS
- Compression Format:
- H.264
- Record Resolution:
- 720P/D1/CIF
- Lens:
- 4mm fixed Lens
- R Distanc:
- 20-30M
- Output Resolution:
- 1024*768, 1280*1024, 1440*900, 1080P
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen

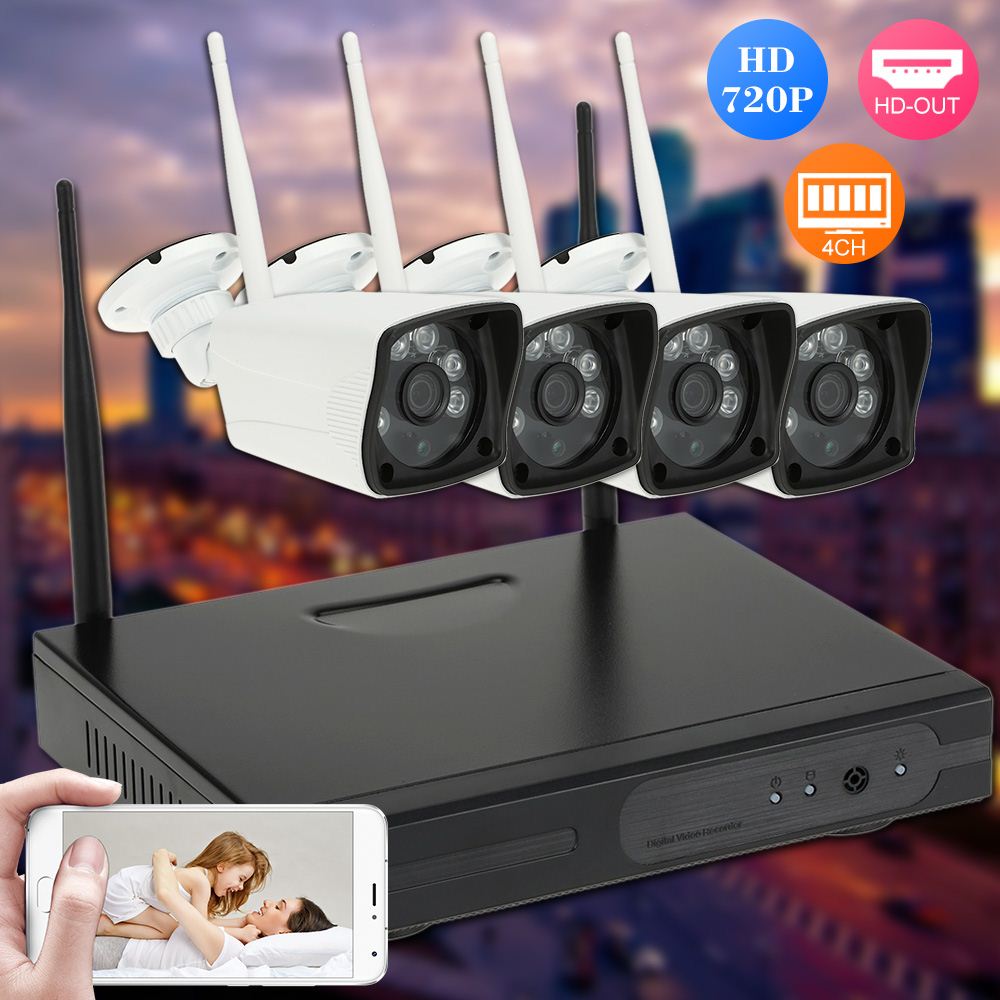

Wireless 720P H.264 4CH NVR Kit CCTV System With 4PCS 1200TVL Wifi P2P IP Camera Waterproof Plug and Play Surveillance System
There are US Plug,EU Plug ,AU Plug and UK Plug For your optional .Please leave message to tell us which Plug you want .Or we will send randomly.Thanks!
Note: 3.5 inch SATA hard drive is not included
This CCTV security system combines with a four channels WiFi NVR network video recorder and 4 waterproof WiFi camera. It features plug and play connection, P2P cloud function, supporting Android/iOS phone remote control anywhere anytime, also supports night view, motion detection, email alarm, etc, making it widely used at home, shopmarket, office, factory and other surveillance needed places.
Features:
*Plug and play, no need any IP setting.
*4CH H.264 NVR network video recorder + 4pcs 720P waterproof wifi Camera.
*More stable video transmission effect with enhanced two wifi antennas.
*P2P cloud function for Android/iOS mobile devices remote view anywhere anytime.
*Motion detection recording and email alert. The NVR will be triggered to record when detect something moving and send notification to your emails. NO trigger, no record, more intelligent and space-saving.
*Support 3.5 inch 500G/1T/2T/3T SATA hard drive, less than 500G is not supported.
*This NVR default output resolution is 1280*1024, so we recommend you to use the monitor with 1280*1024 or higher resolution.
NVR Specifications:
Operating System: Embedded LINUX OS
Compression Format: H.264
Menu Display: 1/4 screen
Record Resolution: 720P/D1/CIF
Output Resolution: 1024*768, 1280*1024, 1440*900, 1080P
HDD Support: 3TB 3.5in SATA HDD maximum (not included)
Sync-playback: 4-ch 720P
WiFi Distance: 100 meters (open area), wall: 20-30 meters
NVR Size: 259*211*44mm / 10.2*8.31*1.73in
NVR Weight: 727g / 1.6lb

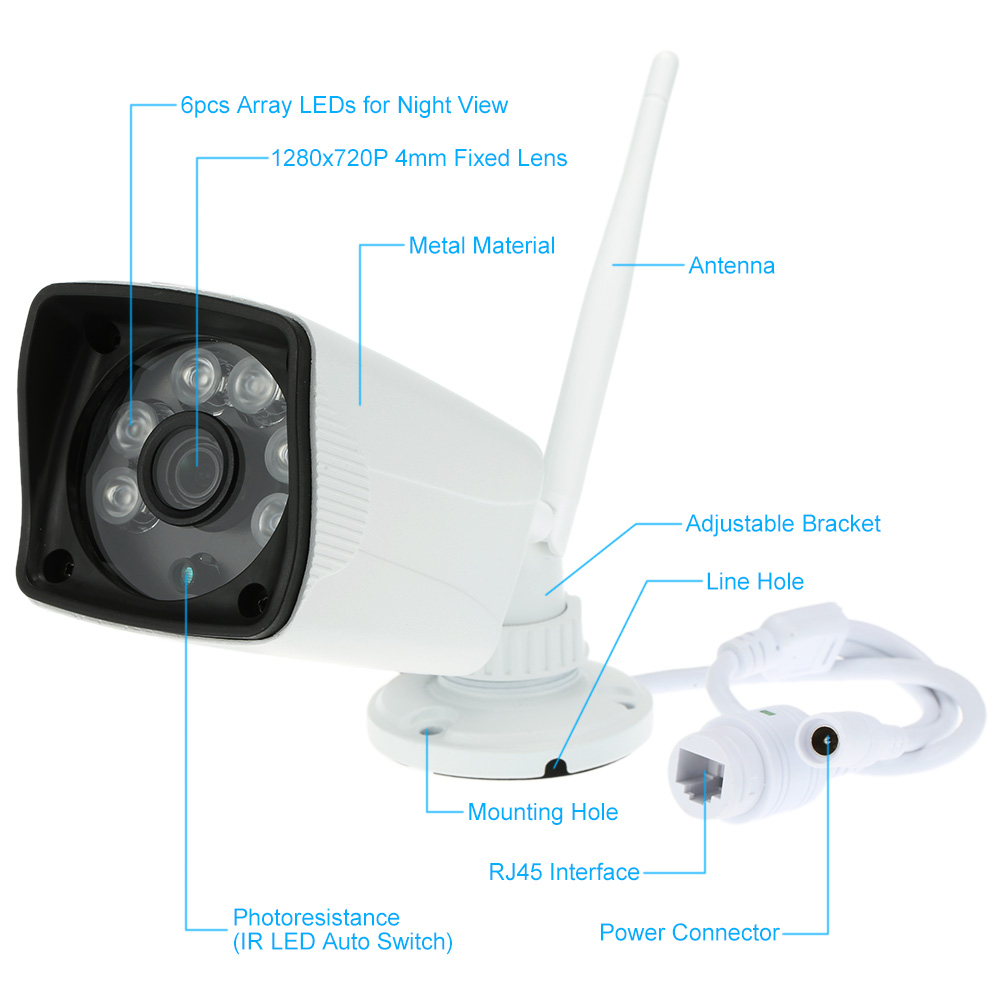

Camera Specifications:
Sensor: 1/4 inch CMOS
Record Resolution: 1280 * 720
Frame Rate: 25fps
Minimum illumination: 0Lux (IR on)
Lens: 4mm fixed Lens
LED: 6PCS array LEDs; IR Distance: 20-30M
Camera Height: 17.7*6.5*6.5cm / 6.97*2.56*2.56in
Camera Weight: 361g / 12.74oz
Package Information:
Package Size: 34.7*27.7*18.2cm / 13.66*10.91*7.17in
Package Weight: 3640g / 8.02lb
Package List:
1 * 4ch NVR Video Recorder
4 * 720P WiFi Camera
5 * EU Plug Power Adapter
1 * Network Cable
1 * USB Mouse
5 * Bag of Screws
1 * User Manual
