- Model Number:
- 812FG11
- Size:
- --
- Waterproof:
- Yes
- Type:
- Intercom System
- Communication Interface:
- Wired
- Camera Sensor type:
- CMOS
- Power:
- DC15V
- Material:
- --
- Resolution">420 TV Line"> Resolution:
- > 420 TV Line">420 TV Line">> 420 TV Line
- Samrt Home Interface:
- No
- Display Screen Size(inch):
- 7
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
Answering Mode: Hands-free
Connection Method: Wired
IP Camera Interface: No
Kit Configuration: One to One video doorphone
Installation: Wall Mounting
Viewing Angle (): 92
Display Screen Type: Color
Camera: colorful
Technology: --
Zone Input: --
Access Control: --

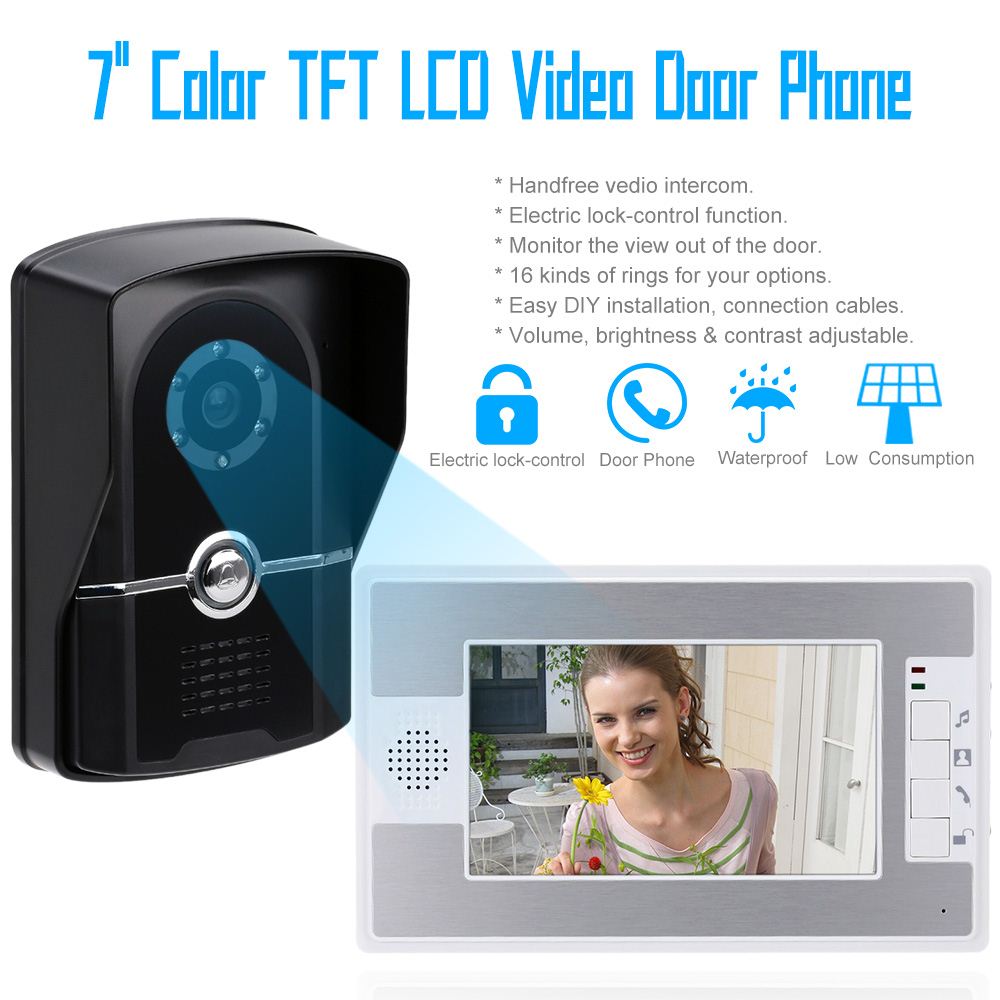

7" TFT Color Video door phone Intercom Doorbell System Kit IR Camera doorphone monitor Speakerphone Video intercom
There are US Plug,EU Plug ,AU Plug and UK Plug four Plugs For your optional .Please leave message to us which Plug you want .Or we will send randomly.Thanks!
This amazing doorphone intercom system could be actually effective solution for improving security of your property. Advanced technology is adopted in this internal system for high stability and durability. Its 7" TFT screen with infrared camera sensor provide you with high quality images for monitoring use even at night. Nice panel design brings you further convenience. Ultra-thin wall mounting and glossy design applied make the unit look more elegant and graceful. As to applications, it can be widely used in apartments, villas, hotel and offices.
Features:
* Handfree video intercom.
* Electric lock-control function.
* Monitor the view out of the door.
* 16 kinds of rings for your options.
* Easy DIY installation, connection cables.
* Volume, brightness & contrast adjustable.
* Rainroof cover design, anti-oxidative outdoor unit.
* Aluminum alloy panel of indoor unit, fashionable and luxury.
* 7" color TFT LCD. No radiation, low power consumption and high definition.
Specifications:
Screen Size: 7" TFT (16:9 Display)
Outdoor Station Resolution: 700TVL
Viewing Angle: 92
Power Input: AC100V-240V 50Hz/60Hz
Power Output: DC15V
Current Output: 1200MA
Delay Calling Time: 120S10%
Delay Monitoring Time: 60S10%
Valid Distance: 50M/164ft (4x0.65mm2)
Power Consumption: Static State<0.5W, Calling<10W
Tramsmitting Distance of the Image: About 200m/656ft
Waterproof Grade: IP55
Working Temperatrue: -10C - +50C
Comparative Temperature: 10%-90%
Indoor Unit Dimension: Approx.24.6*15.1*1.9cm/9.69*5.94*0.75in
Outdoor Station Dimension: Approx.9.8*15.6*5cm/3.86*6.14*1.97in
Package Size: Approx.26.7*10.7*18.5cm/10.51*4.21*7.28in
Package Weight: Approx.1230g/2.712Lb
Package List:
1 * Indoor Unit
1 * Outdoor Station
1 * Power Adapter(EU Plug)
1 * Connection Cable
3 * Flexible Flat Cables
1 * Accessory Bag
1 * User Manual
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn"t receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
