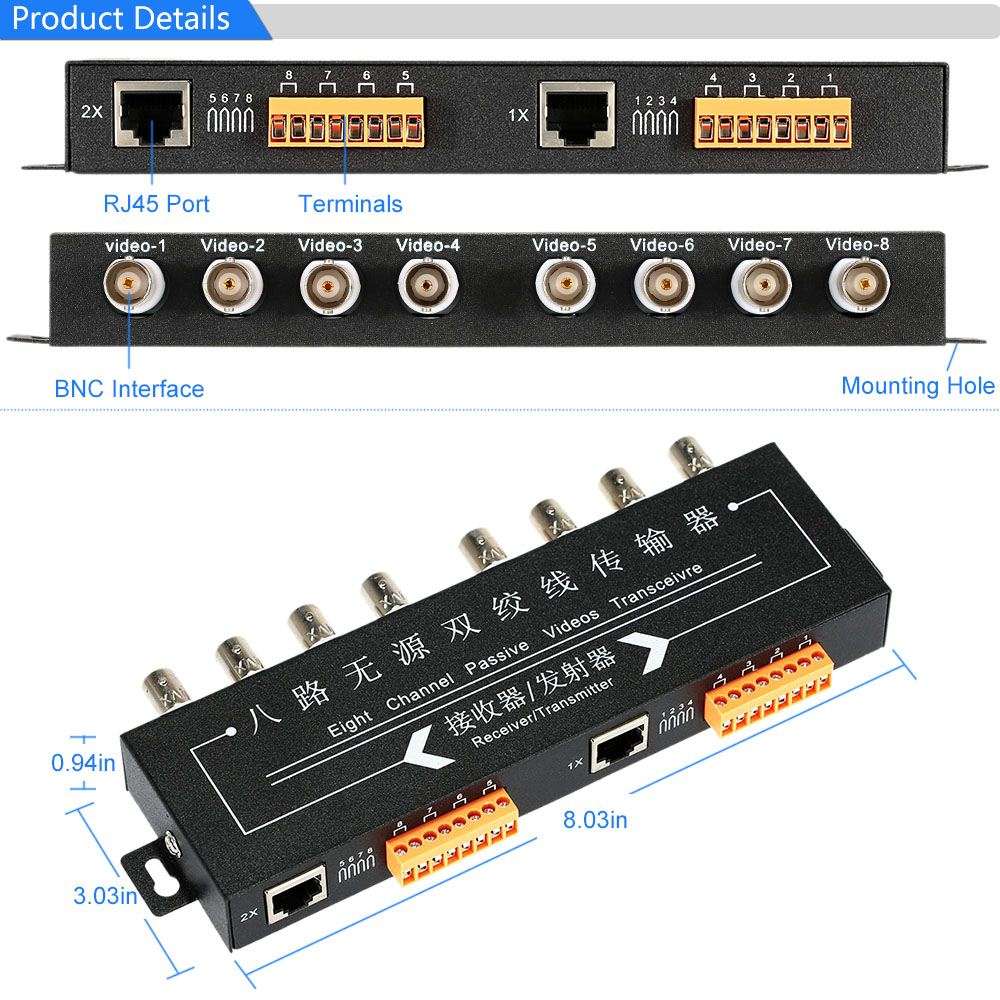

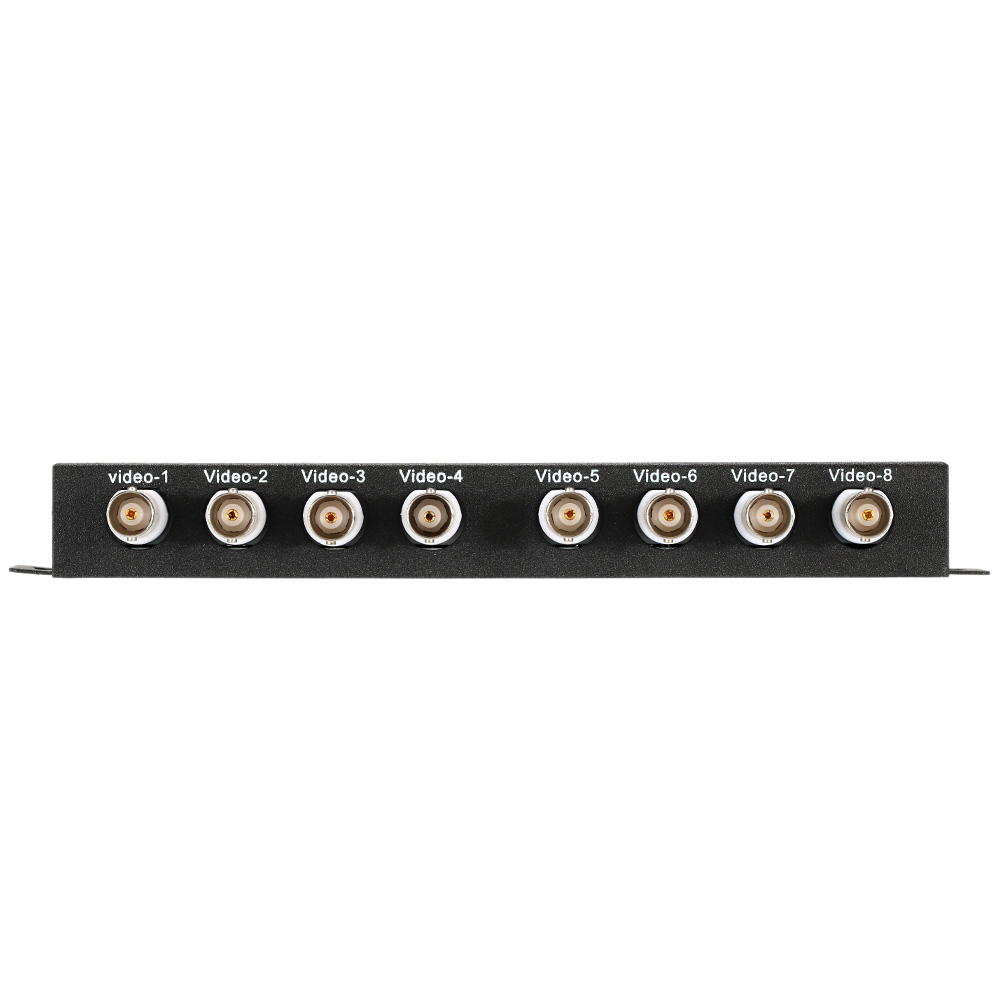

CCTV BNC Passive Video Balun 8 Channel No Power Transceiver Surveillance Equipment Accessories
Note: This item can not be used seperately, so please buy in pairs. Thank you!
This 8 channel passive video transceiver without additional power supply uses 4 pairs twisted-pair cables to transmit 4 channel video picture signal. This equipment are compatible with PAL, NTSC and SECAM baseband Composite Video signals. It can be used as transmitter, can also be used as receiver(So this equipment can be used in pairs). Finally, you can use it with various other passive or active UTP Video Balun Transceivers. Small in size, easy for installation, it"s nice to have.
Features:
* No additional power supply.
* Using CAT 5/5E/6 twisted pair cables transmission.
* Long-distance transmission, up to 300m/984ft with passive video transceiver, up to 900m/2952ft with active video transceiver.
* Live transmission without time delay, both RJ45 connection and pluggable terminals connection are optional.
* Easy installtion. Preventing lighting and anti-jamming.
Specifications:
Balun Type: Passive
Channel : 8 Channel
Video transmitting distance: 300m with passive video transceiver,900m with active video transceiver
Video Formats: NTSC, PAL, SECAM
Wire Type: CAT 5/5E/6 twisted pair cables
Material: Metal
Item Weight: 331g/11.67oz
Item Size: 20.4*7.7*2.4cm/8.03*3.03*0.94in
Package Weight: 364g/12.85oz
Package Size: 21.6*8.2*2.7cm/8.50*3.23*1.06in
Package List:
1 * 8 channel passive video transceiver
Shipping:
1.We guarantee to ship goods out within 24-72 hour after payment confirmation except holiday.
2.We ship by China post,HKpost EMS,DHL,Fedex,according to your choice when placing orders .
3.If you didn"t receive the item after 45 days,please feel free to contact us.We will make all our effort to resolve the problem.
4.We are not responsible for delays causedby the customs,Import duties,taxes or other customscharges.
Warranty:
1.All items have 1 year guarantee.IF your purchase do not meet merchantable quality, fitness for purpose or match the description, We can make sure your issues are resolved .
2.For wrongly-shipped items, Please contact us in 48 hours after delivery.We will arrange to deliver the correct items or return all your payment.
3.For defective or faulty products,please take photos or videos,we would resend or refund after confirmation.
