- Model Number:
- Door Access Control
- Supply Ability:
- 999999 Set/Sets per Year
- Port
- Shenzhen
- Lead Time:
Quantity(Sets) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated
LCD Attendance System Door Access Control Kit 180kg/396Lbs Electric Magnetic Strike Lock Remote Control+Door Bell+Exit Button
Features:
Sensitively and response quickly.
Build in RFID reader, Contactless RFID transponder technology.
Connection for external release button(Exit button).
Support Card, PIN, Card + PIN.
RFID Access Control has Chinese-English menu port with back light; display name and work number.
Support working day setting, set equipment parameter by keyboard, off-line operation.
Support 2500 card holders, store 25,000 pieces of card reading information.
Various alarm incidents functions: Open time-out, close time-out, intrude alarm, force alarm, burglar alarm and fire alarm etc.
Recorded access information can be checked by connecting with computer network.
AC110V-240V power supply provides stable output voltage for access controller, lock, and exit button.
Help to reduce overload for access controller.
Automatic protection function for unexpected short circuit or power off.
Collinear load test of magnetic locking is 180kg(396Lbs).
MOV provides reverse current protection.
Anti-residual magnetism designed.
High strength material, anodized aluminum housing.
With NO and NC.
Comes with remote control for convenient use.
For security doors, building entrance / exits.
Specifications:
| Power Supply | Input Voltage | AC110V-240V 50~60Hz |
| Output Voltage | 12V DC | |
| Output Current | 3A | |
| Remote Control Distance | 50~100m / 164~328in | |
| Time Delay Range | 0~15s | |
| NO/NC Set | Yes | |
| Indicator | Red LED power on | |
| Dimension | 113 * 91 * 34mm / 4.4 * 3.58 * 1.3in | |
| Weight | 141g / 4.97oz | |

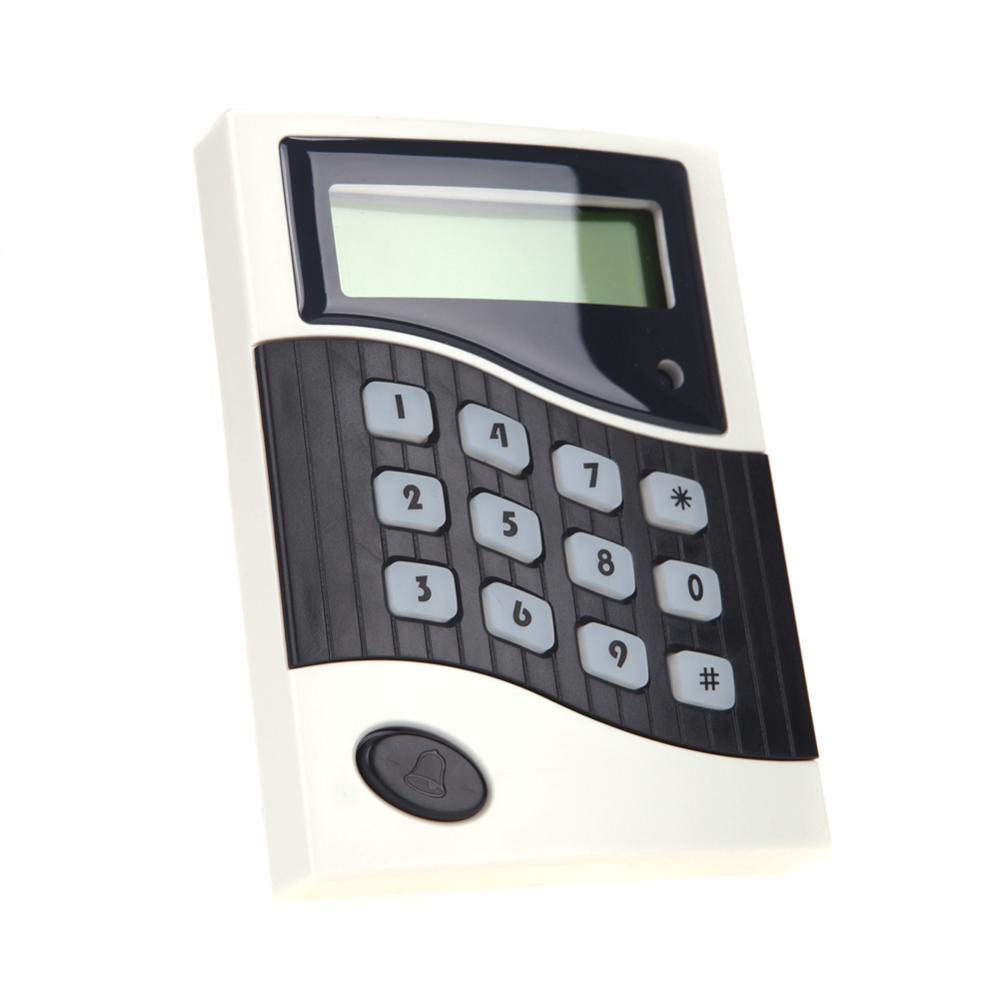

| RFID Access Control Panel | Memory Capacity | 2500 user cards |
| Record Capacity | 25,000 pieces of card reading information | |
| Induction Distance | 5~20cm / 1.9~7.87in | |
| Reading Speed | 0.15s | |
| Card Reader | EM chip card | |
| Power Supply | DC 12V 0.1A | |
| Opening Current | 1000mA | |
| Static Current | 60mA | |
| Communication Mode | RS485 | |
| Networking Capacity | 255 sets | |
| LCD Display | 60 * 20mm / 2.36 * 0.78in | |
| Ambient Temperature | -20~70 Degree C | |
| Relative Humidity | 10%~90% | |
| Dimension | 120 * 88 * 18mm / 4.5 * 3.5 * 0.7in | |
| Weight | 160g / 5.64oz | |
| Magnetic Locking Device | Collinear Load Power | 180kgs / 396lbs |
| Working Voltage | 12V DC | |
| Working Current | 320mA | |
| Safety Mode | Power on to lock, Power-off to open | |
| Append | LED, Time Delay | |
| Suit for | Wooden door, glass door, metal door, fireproof door | |
| Finishes for Magnetic | Aluminum | |
| Finishes for Armature | Aluminum | |
| Signal Output | LED indicator | |
| Ambient Temperature | -10~+55 | |
| Relative Humidity | 0~95% | |
| Magnetic Size | 17 * 3.8 * 2cm / 6.7 * 1.5 * 0.8in | |
| Magnetic Weight | 500g / 17.63oz | |
| Armature Size | 12.8 * 3.2 * 0.9cm / 5.0 * 1.25 * o.35in | |
| Armature Weight | 351g / 12.27oz | |

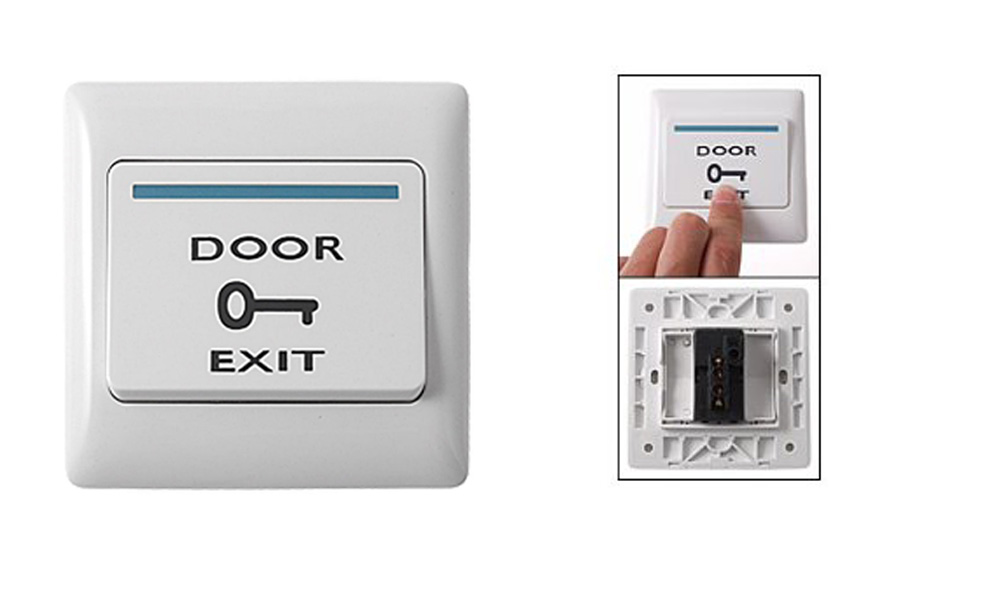

| Electronic Door Exit Push Strike Button Panel | Main Material | Hard Plastic |
| Color | White | |
| Plate Size | 8.5 * 8.5 * 3cm / 3.4 * 3.4 * 1.2in | |
| Weight | 48g / 1.69oz | |
| Remote Control | Working Voltage | 12V DC |
| Current | 7mA | |
| Contact Capacity | 7A 240VAC/10A 24VDC | |
| Receiving Sensitivity | -105dBm | |
| Modulation | AM & FM | |
| Package Size | 30 * 20.5 * 9.2cm / 11.8 * 8.07 * 3.6in | |
| Package Weight | 1794g / 3.95lb | |
Package List:
1 * Door Access Control System Power Supply (110 - 240 V AC)
1 * Magnetic Locking Device
1 * RFID Access Control Panel
1 * CD
1 * Package of Connection Cables
1 * Electronic Door Exit Push Strike Button Panel
1 * Remote Control Kit
5 * RFID Keyfobs
5 * RFID Cards
1 * Door Bell
1 * Package of Mounting Accessaries
1 * User Manual (English)
