- Model Number:
- TP02S-11
- Size:
- Approx. 10.24*5.91*4.13in / 26*15*10.5cm
- Waterproof:
- Yes
- Type:
- Intercom System
- Communication Interface:
- Wired
- Technology:
- Analog
- Camera Sensor type:
- CMOS
- Power:
- --
- Material:
- --
- Zone Input:
- None
- Access Control:
- Inductive Card
- Supply Ability:
- 999999 Piece/Pieces per Year
- Port
- Shenzhen
Display Screen Size(inch): 7
Doorbell: Yes
Answering Mode: Hands-free
Connection Method: Wired
IP Camera Interface: No
Kit Configuration: One to One video doorphone
Installation: Wall Mounting
Display Screen Type: Color Touch Screen
Camera: Color CMOS
Resolution: 1000TVL
Viewing Angle (): adjustable angles
Home Security 7" LCD Monitor Video intercom Doorbell Video Door Phone Access Control System ID Unlock IR Doorphone Camera Kit
There are US Plug,EU Plug ,AU Plug and UK Plug For your optional .Please leave message to tell us which Plug you want .Or we will send randomly.Thanks!
Overview:
This video door phone features 7in LCD monitor with touch button, including one 1000TVL outdoor camera and one indoor monitor, which combines functions of visual intercom, real-time surveillance, remote unlock, rainproof and night vision. It is very convenient to unlock from indoors (touch button) and outdoors (ID Cards/passwords unlock), which is widely used in villas, apartments, houses, hotels, offices, public buildings and so on.
Features:
*7" color TFT LCD monitor with touch button.
*Rainproof and oxidation-proof outdoor camera.
*1000TVL CMOS sensor, clearer pictures displaying.
*Camera angles can be adjusted all directions.
*4 unlock ways optional: indoor monitor, ID cards, passwords, ID cards+ passwords
*6pcs high-intensity IR LEDs for good night vision effect.
*Hands free call and visual intercom.
*Real-time outdoor surveillance for home security.
*Support maximum 2000 ID cards.
*25 kinds of music rings optional and ring volume adjustable.
*LCD screen brightness, contrast and saturation adjustable.
*Desktop installation or wall mounting use optional.
*Max. connection support: one outdoor camera + six indoor monitor.
Specifications:
Display: 7inch TFT LCD screen
Resolution: 800*(RGB)*480
Image Sensor: 1000TVL CMOS
Camera Lens: 3.6mm
Camera Angles: Adjustable
Touch Button: Yes
Effective distance: 200M(4×0.75M2;)

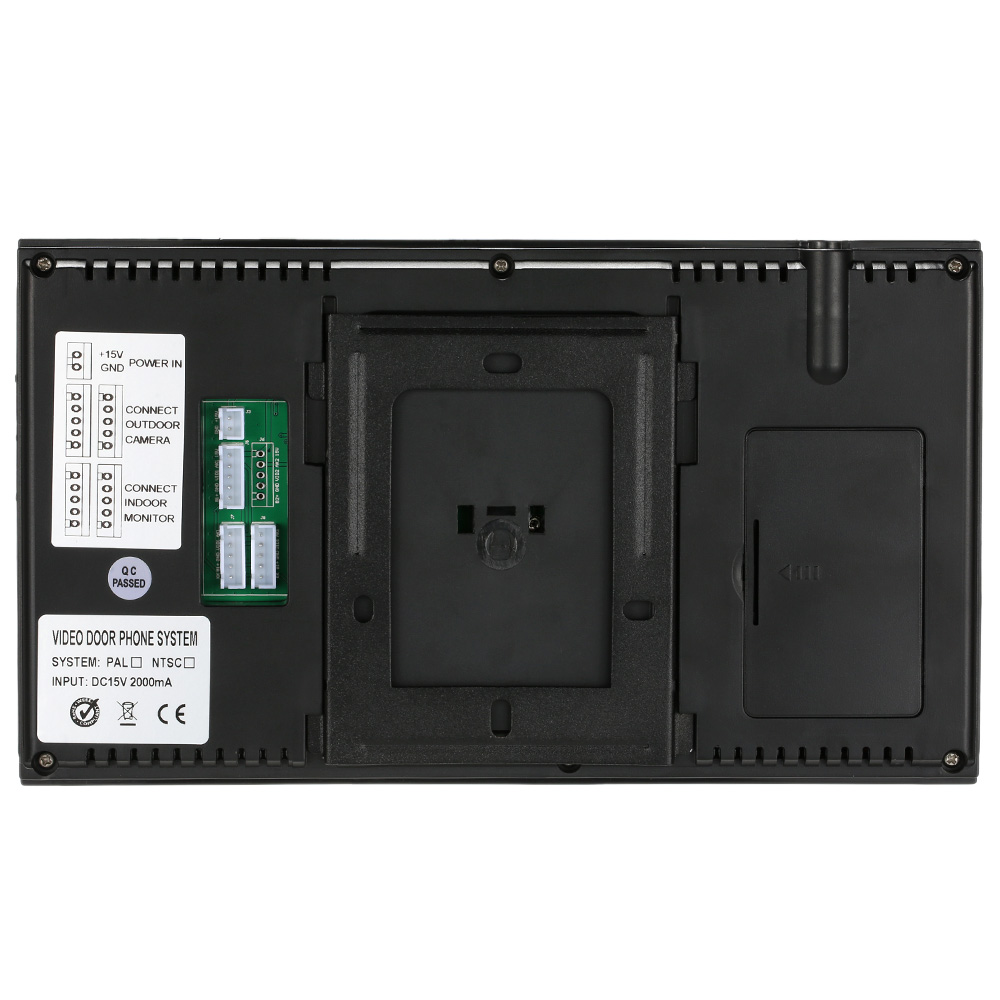

Indoor Monitor Size: Approx. 8.98*5.12*0.87in / 22.8*13*2.2cm

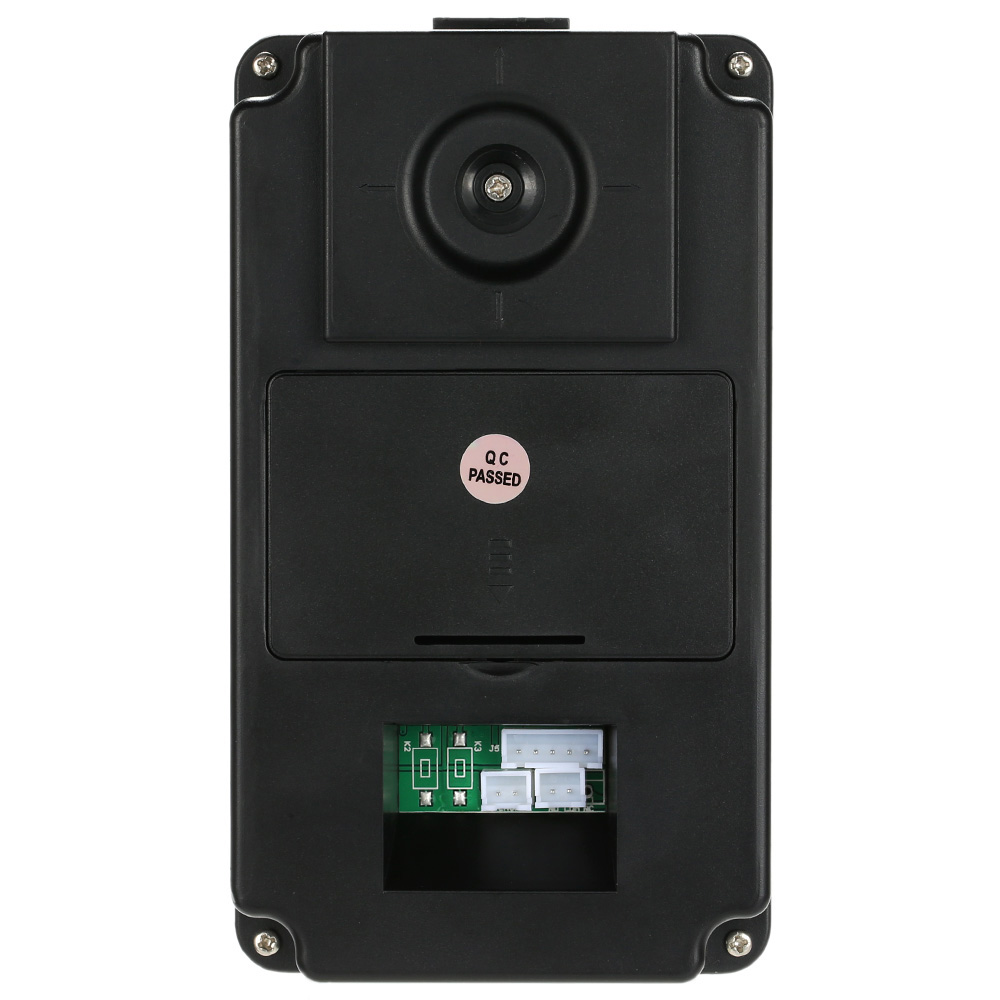

Outdoor Camera Size (with proof shell): Approx. 5.83*3.46*2.44in / 14.8*8.8*6.2cm
Package Information:
Package Size: Approx. 10.24*5.91*4.13in / 26*15*10.5cm
Package Weight: Approx. 2.65lb / 1200g
Packing List:
1 * Outdoor Camera with proof shell
1 * Indoor Monitor
1 * EU Plug Power Adapter
5 * ID Cards
1 * 5 pin connecting cable (16ft/5m)
1 * 2 pin cable (Connect to Push button)
1 * 2 pin cable (Connect to E-lock)
1 * Mounting plate
1 * Desktop Bracket
1 * Bag of screws
1 * User manual
