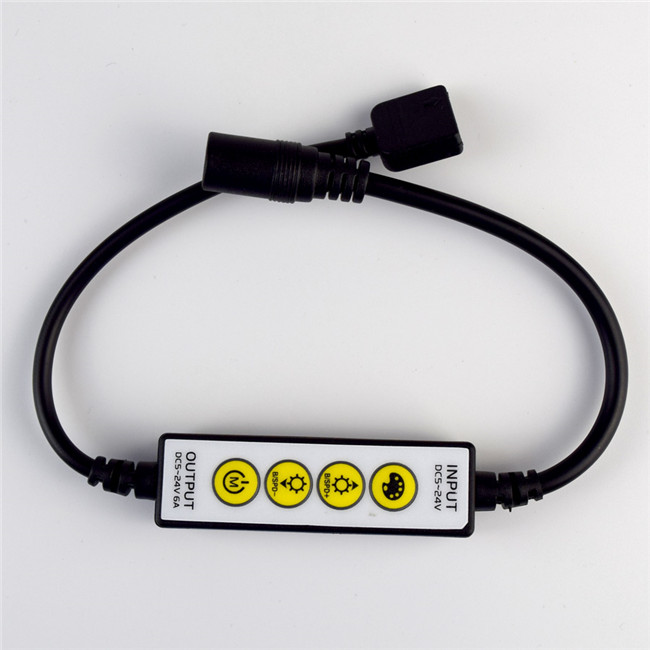

led RGBW CCT RGB strip DC5-24v 4 key led remote controller
Mini 4 keys LED Controllers have 5 types: Single color, color temperature, RGB, RGBW, RGB+CCT.
It can realize fade, jump, fade in and fade out ,flash, blasting flash etc.
Dynamic lighting effects according to customers" actual needs. And a variety of static colors can be chosen from.
The main features of the controller are:
1. Compact body and convenient wiring;
2. Simple and clear operation, comfortable button feel;
3. Diversified dynamic mode;
4. Soft dimming effect.
Technical Parameters:
Working temperature:-20-60℃
Input voltage:DC5-24V
Connection mode:Common anode
controller size:L55.7×W16.6×H10.7mm
Net weight:18g
Gross weight:25g
Static power consumption:<0.5W
Output current:Max: 6A Total
Note: If the controller"s output wire sequence which you get are different from above , please according to the actural controller"s
wire sequence to corresponding LED Lights, just amke sure the arrows of controller and light are inserted accordingly
