- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Lantern
- Model Number:
- GL-LED-DIP-F5-R
- Type:
- LED
- Package Type:
- Through Hole
- Max. Forward Voltage:
- 3.2
- Max. Reverse Voltage:
- 5
- Max. Forward Current:
- 20mA
- Max. Reverse Current:
- 1uA
- light color:
- red/white/warm white/green/bule /yellow/rgb
- Supply Ability:
- 6000000 Piece/Pieces per Day
- Packaging Details
- standard package
- Port
- Shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100000 >100000 Est. Time(days) 5 To be negotiated
2019 Excellent Quality 5pcs DC12V 20cm 5mm Pre Wired LED Lamp Light Bulb Emitting Diode with wires 5 Colors
Product Features:
5mm LED white LEDs pre wired Technical Parameter
Part No. | Emitted Color | WD(nm)/ CCT(K) | Lens Color | Vf(V) IF=@20mA | Iv(mcd) IF=@20mA | Viewing Angle | ||
Typ | Max | Min | Typ | |||||
GL-LED-5MM-R | Red | 625 |
Water clear | 2.0 | 2.4 | 3000 | 5000 | 30 |
GL-LED-5MM-O | Orange | 610 | 2.0 | 2.4 | 2000 | 3000 | 30 | |
GL-LED-5MM-Y | Yellow | 589 | 2.0 | 2.4 | 3000 | 5000 | 30 | |
GL-LED-5MM-Y | Yellow | 570 | 2.0 | 2.4 | 200 | 500 | 30 | |
GL-LED-5MM-G | Green | 525 | 3.2 | 3.6 | 8000 | 15000 | 30 | |
GL-LED-5MM-B | Blue | 470 | 3.2 | 3.6 | 3000 | 5000 | 30 | |
GL-LED-5MM-CW | Cool white | 10000 | 3.2 | 3.6 | 8000 | 12000 | 30 | |
GL-LED-5MM-W | White | 6500 | 3.2 | 3.6 | 8000 | 12000 | 30 | |
GL-LED-5MM-WW | Warm white | 3000 | Water clear | 3.2 | 3.6 | 7000 | 10000 | 30 |

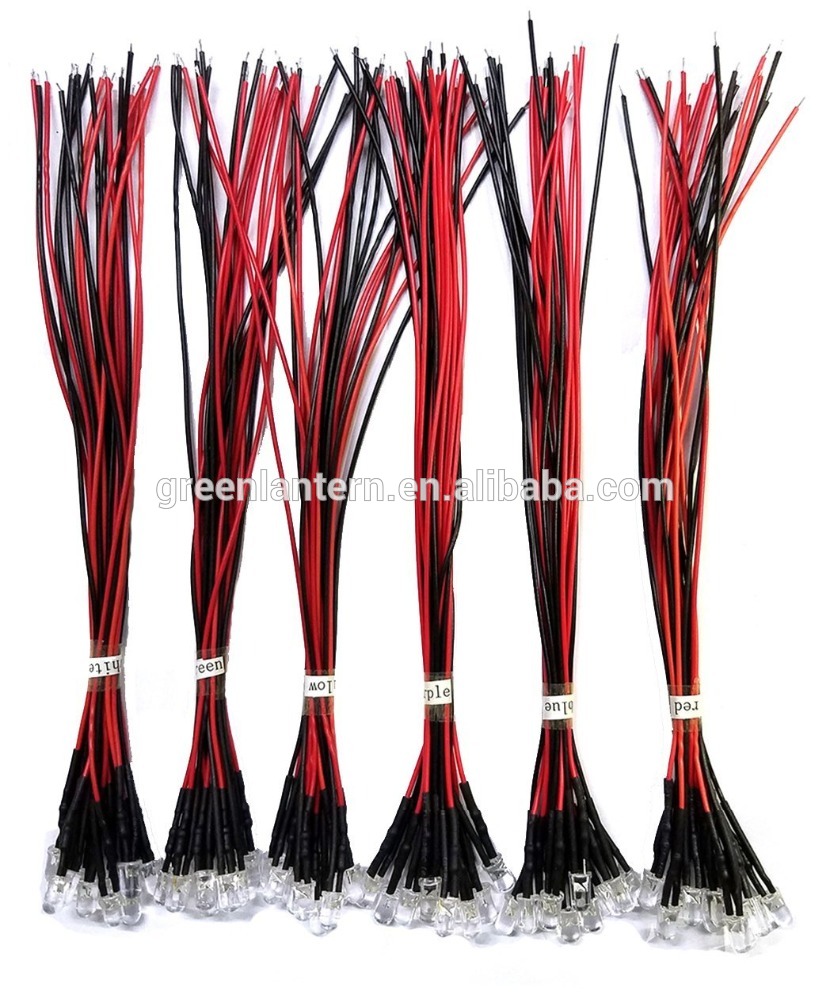

5MM 5mm LED white LEDs pre wired Picture :
5mm LED white LEDs pre wired Application:
- Indoor and outdoor commerical lighting
- General lighting
- Automotive lights
- LCD TU/monitor backlights
- LED display
- Traffic Light
Specifications of Pre-wired LED:
- Built -in resistor for high voltage operation;
- Color of wires:Red&black;
- Length of wires:10cm/20cm from both pin or design as customer required;
- light source:Super bright 5mm/3mm Round LED;
- Packing:100 PCS/Bundle,1000PCS make a small carton;
- The Diameter of the LED and the length of the wires can be customized
- These pre-wired 5mm waterclear LEDs are designed for direct connection to a 12 volt power supply without the need for a resistor to be wired in series. (resistor is fitted)
- The pre-soldered wires are 200mm long and are coloured red and black for easy polarity identification.
