Home > Products > Blue led 1/2 NPT Underwater Yacht Boat Drain Plug Light with connector for fishing

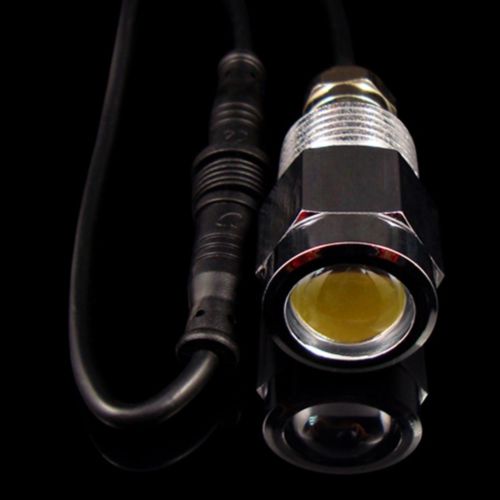

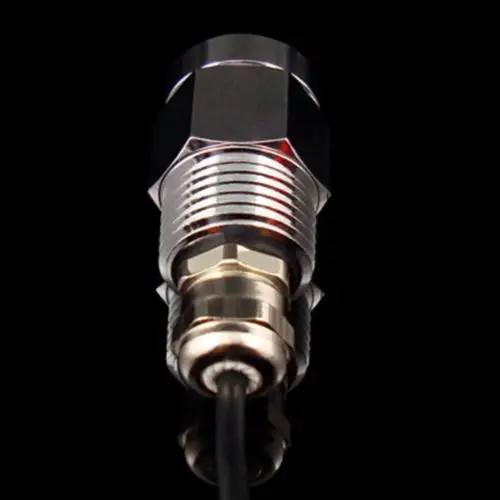

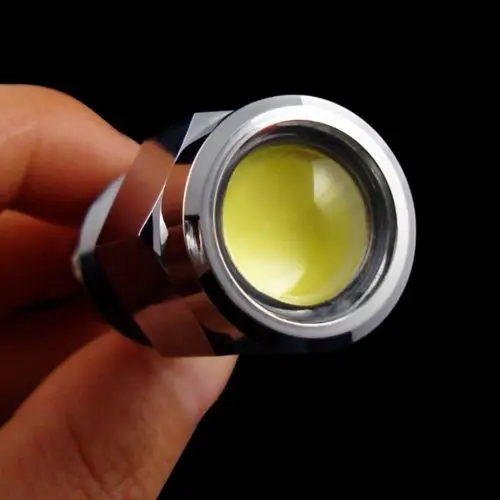

Blue led 1/2 NPT Underwater Yacht Boat Drain Plug Light with connector for fishing
Click on the image to view the original image
Product： views：5Blue led 1/2 NPT Underwater Yacht Boat Drain Plug Light with connector for fishing
Branch： Green Lantern
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-17 04:42
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
24
Lamp Power(W):
9
Lamp Luminous Flux(lm):
70
CRI (Ra>):
80
Working Temperature(℃):
-25 - 65
Place of Origin:
Guangdong, China
Brand Name:
Green Lantern
Model Number:
LED boat light
Emitting Color:
Blue
Product name:
LED yacht light
size:
7.5*11.3*4.5cm
carton size:
31*47.5*26.5cm
gross weight:
170g
Item Type:
Pool Lights
Color Temperature(CCT):
COOL WHITE
Lamp Body Material:
Bronze
IP Rating:
IP68
Light Source:
Halogen Bulbs
Beam Angle(°):
120
Certification:
ce, RoHS
Lamp Luminous Efficiency(lm/w):
8
Supply Ability
Supply Ability:
53000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

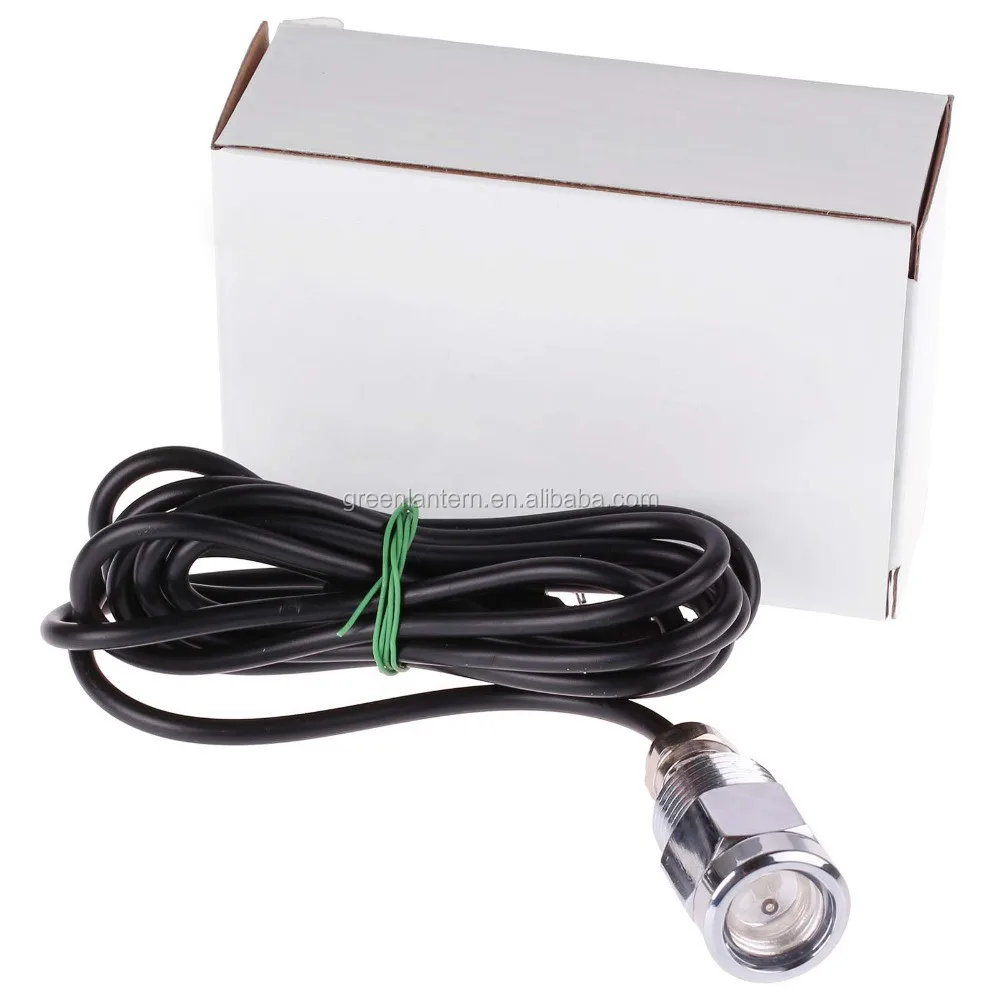

1. white box packing: 7.5*11.3*4.5cm
2. carton box: 60pcs/ctn; 31*47.5*26.5cm
3. gross weight: 11.3kg
Port
Shenzhen

Blue led 1/2" NPT Underwater Yacht Boat Drain Plug Light with connector for fishing





Features

Single LED 9W with 1 LED insides, total 9W super brightness.

Bronze housing materials, 100% anti-corrosion.


Standard 1/2" NPT thread type, connected with 2 meters cable.


Connected with waterproof connector in order to easy installation, no drilling hole are needed, just screw it into the holes on your boat.


IP68 waterproof.


Specification


TypeBoat Drain Plug Light
MaterialBronze housing
Quantity1pcs
Item ColorSilver
LED Quantity1
LED ColorBlue
Power9W
Voltage12-24V
Current570MA
Luminous Flux.720 Lm
Beam Angle120 degrees
WaterproofIP68
Cable LengthApprox. 2m

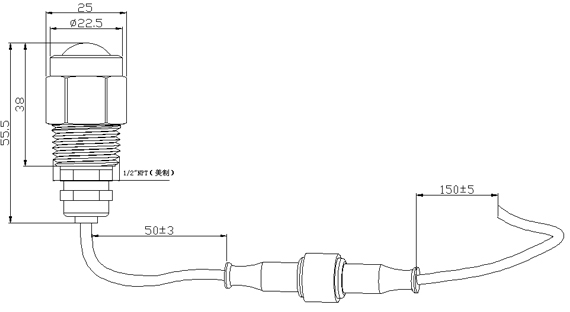

Size7.5*11.3*4.5cm (L*W*H)
Net Weight0.17kg






















Installation instruction

1. Loosen the drain lightx7f.


2. Run the cable leads thru the garboard drain opening and screw the drain plug light assembly into the existing garboard fitting .

The garboard fitting is 1/2 NPT.

3. Connecting the light wire to a 12-24V on/off switch. Plug in the waterproof connector


4. Attach the red lead the positive(+) with the included in line 3 AMP assembly fuse and the black lead to the negative (-).


5. Switch on the light to check if it works well.

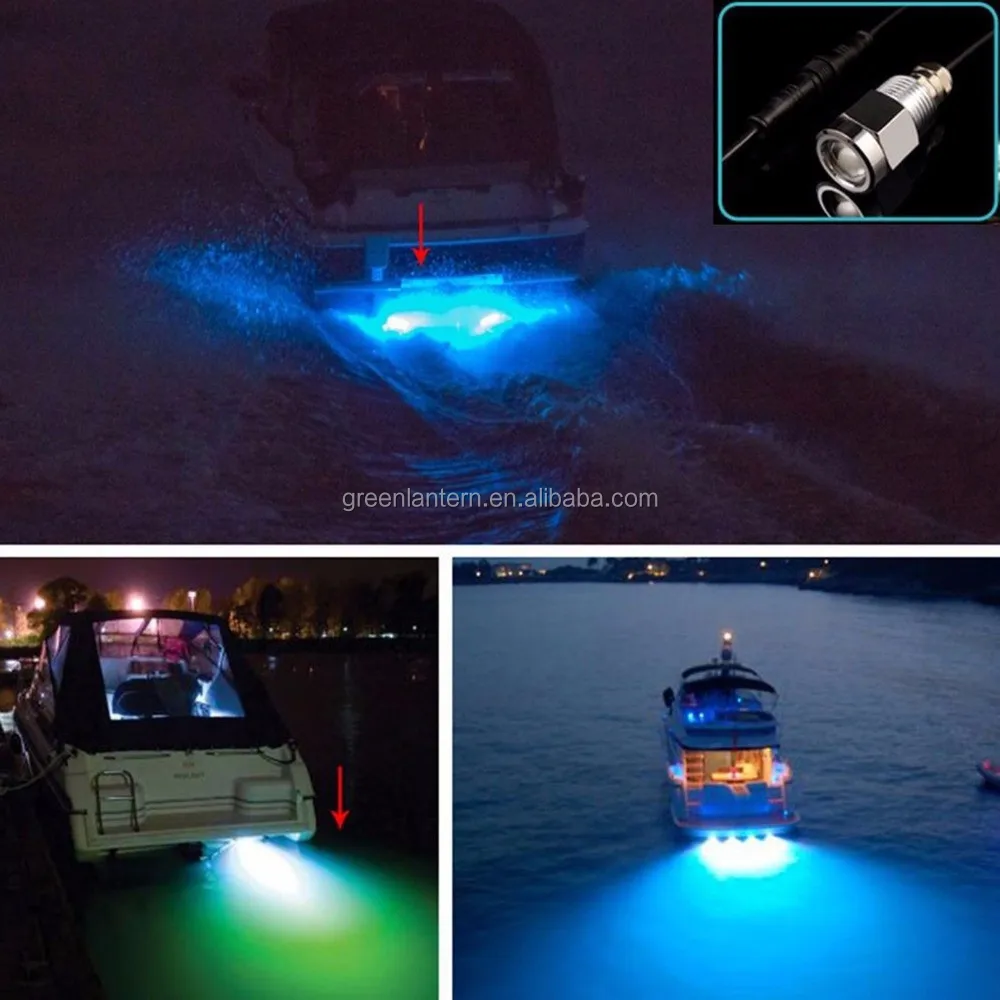

Pictures:








Certifications



Trade Terms:

1.Payment terms: 30% TT before production, full payment before delivery.

2.Delivery time:5-30days after payment.

3.Shipping port: Shenzhen or buyer’s  customized port.

4.Tracking number will be sent to you once we ship out the goods.

5.Disounts are negotiable according to large quantities.

6. 1piece/color box,then seveval in export carton .  led

Our Services

1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM&ODM, any your customized lightings we can help you to design and put into product.
4.Distributoership are offered for your unique design and some our current models.
5.Protection of your sales area, ideas of design and all your private information.
