Mini RGB LED Controller with Dynamic Modes - RF Remote
Click on the image to view the original image
Product: views:6Mini RGB LED Controller with Dynamic Modes - RF Remote
Branch: Greenlantern
Type: Remote Control
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-17 04:43
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Greenlantern
Model Number:
GL-RFMINI-03
Type:
Remote Control
Max. Load Power:
288W
Voltage:
DC12-24V
Warranty:
2 Years
Output Current:
2A/ch
Output power:
5V:<30W, 12V:<72W
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
gift box
Port
FOB Shenzhen

Certifications



Company Information

Green Lantern Optoelectrical Light Factory  Profile:

1) We are a large LED lighting manufacturer for 12 years

2) We founded in 2005 and already established 3 factories and 1 trading company

3) We specialize in producing LED lights, such as Smart led bulb,Milight serious,LED Rope Lights, Rope Lights, LED Panel light,LED Controller,LED tube,LED downlight..

4) We focus on Quality manufacture our lights in accordance with CE,GS, RoHS ,SAA ,TUV certification

5) We meet and exceed global quality standards

6) We now ship well over half of our output to countries and regions worldwide




Product Description
Product Description

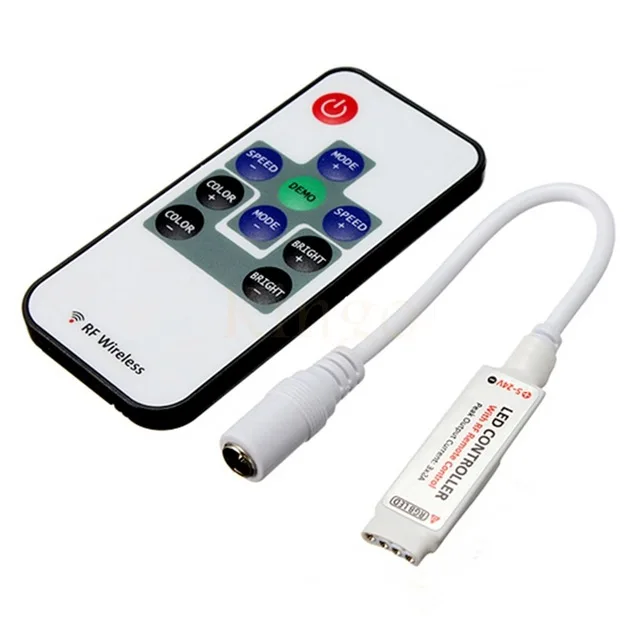

This RF Mini RGB controller adopted the advanced computer control chip. Controlled by 433Mhz wireless remote.Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can choose the mode of fade, strobe,Blasting flash,flicker,and other Static color model. What’s more, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.


Remote & Receiver
Remote & Receiver





Input Voltage
DC 5-24V
Peak Output Power
30W@5V, 72W@12V
PWM Level
256 Level
Peak Output Current
2A*3CH
polarity protection
DC & 4-pin Plug
Remote mode
 R F
Working Temperature
-20℃-60℃
Radio Frequency
433.92Mhz
Materials and processes
SMD and Double FR4 PCB
Remote Battery
CR2025 3V
Certificate
CE & ROHS
Remote Standby Current
<1μA
Size
L85.9×W39.6×H6.9mm
Remote distance
10 meters (blank area)

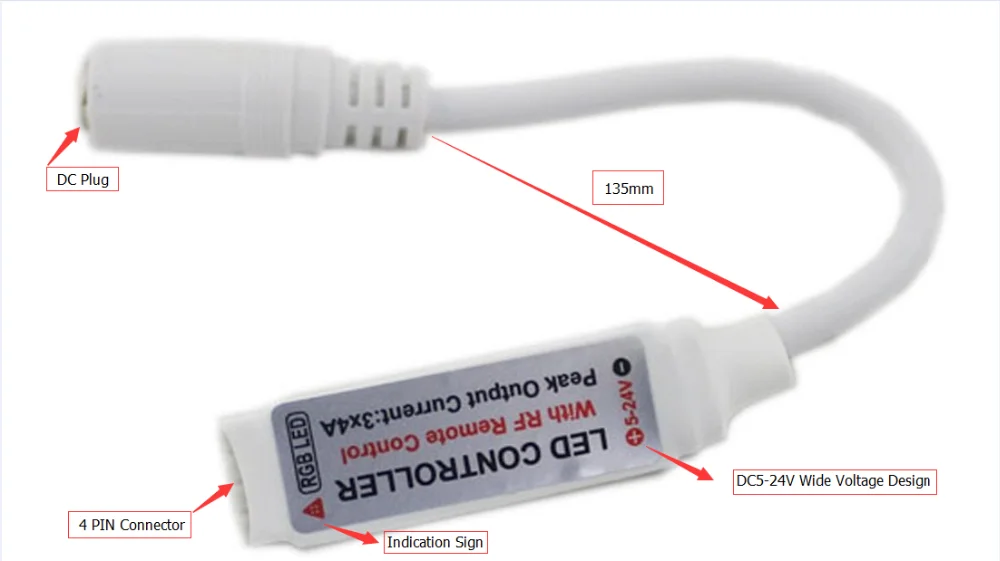

Power Plug
5.5mm DC
LED Plug
4-PIN










Functions
Functions
Dynamic Mode
19
Memory Function
Yes
Dynamic speed level
10

Static Color
9

Static Brightness Level
5


No
Pattern
No
Pattern
No
Pattern
                                                                                                              Dynamic
1
7 color
8
Purple fade
15
B blast flash
2
3 color fade
9
Blue fade
16
P blast flash
3
7 color fade
10
3 color Jump
17
Y blast flash
4
White fade
11
6 color jump
18
W blast flash
5
Green fade
12
3 color flash
19
3 blast flash
6
Yellow fade
13
R blast flash

7
Red fade
14
G blast flash



Static
1
Red
4
Milk-white
7
Blue-purple
2
Green
5
Dark yellow
8
Yellow-white
3
Blue
6
Sky blue
9
yellow
