Hot selling LED Sync Dimmer with RF button remote
working temperature: -20-60℃
Supply voltage: DC12-24V
Size:L127*W42*H33 (mm) Gross weight:240g
Output: 1 channel
all of the brightness and the speed is adjustable
Output current: 25A*1ch
Power:Power: 300W(12V), 300W(24V)
RF frequency: 433.92MHz Battery Model:AAA*2PCS RJ45 SYNC
Product Feature
l Designed for single color constant voltage LED lights, Working voltage DC12-24V.
l High watt output design, up to 1*25A/ 300W.
l Memory function, each time power-on reserve the mode which stop in the last power-down.

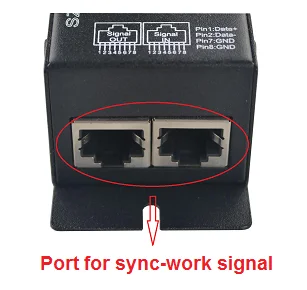

l Easy connection to achieve multiple dimmers sync-work by RJ45 terminal.
l Adopts RF 14keys remote control with fashion appearance, no need line-of-sight. Control range up to 20 meters.
l Long-press the brightness and speed key can get the fast adjustment, convenient for operation.
l 2-year warranty.
Technical Parameters
Controller
Working temperature | -20-60℃ | Supply voltage | DC12V-24V |
Static power consumption | <1W | Mode | 3 |
Grayscale | 256 levels | Speed stage | 100 grade |
External dimension | L127*W41*H32 (mm) | Packing size | L138*W131*H35 (mm) |
Net weight | 160g | Gross weight | 185g |
Output | 1 channel | Max. Output current | 25A |
Output power | 300W | RF distance | ≤20m |
PWM frequency | 433.92Mhz | Memory function | support |
Remote control
Working temperature | -20℃~60℃ | Supply voltage | DC3V(AAA*2) |
Standby current | <18uA | Working current | <25mA |
Standby power | 54uW | Working power | 75mW |
Net weight | 65g | RF frequency | 433.92Mhz |
External dimension | L150*W40*H20 mm | RF distance | ≤20m |
