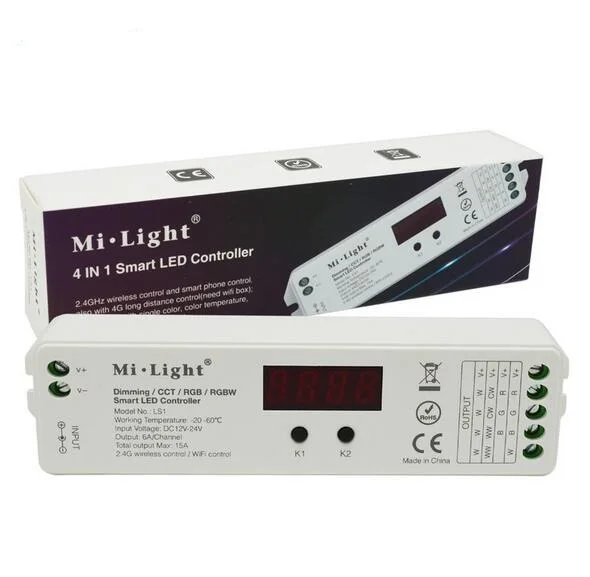

DC12V 24V 15A 2.4G wireless control Mi.Light LS1 4 in 1 Smart LED Controller

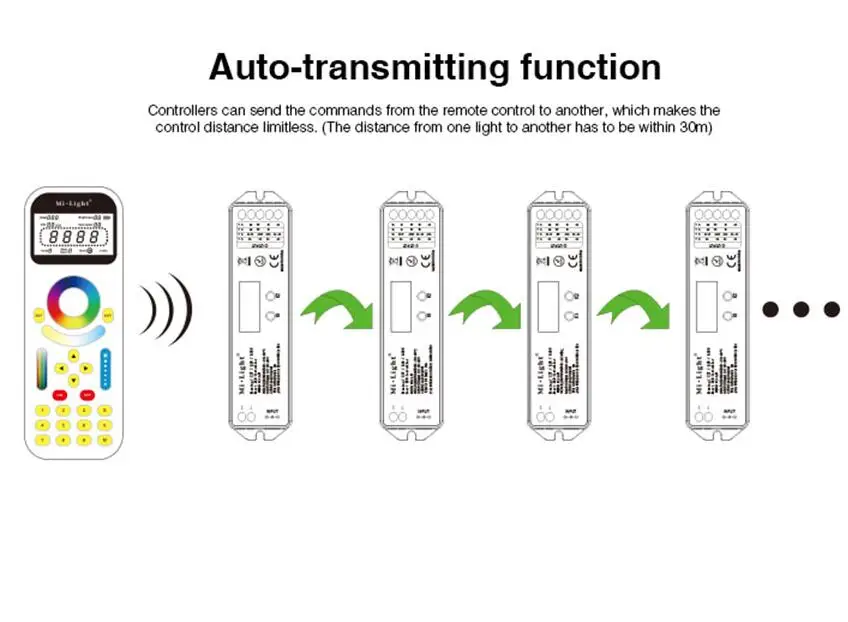

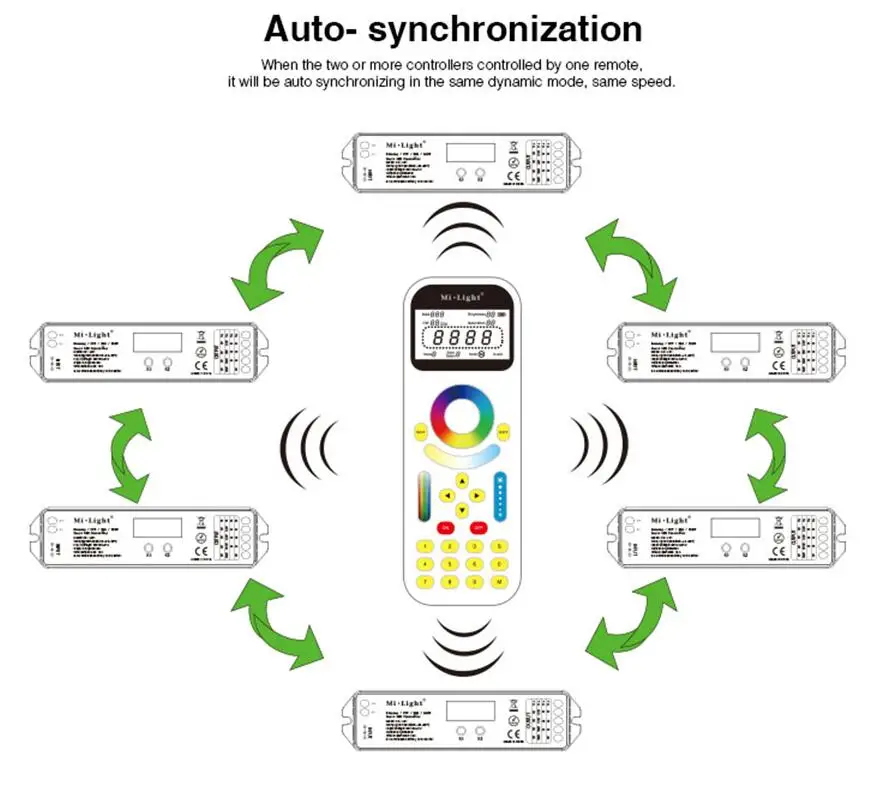

4in1( Single color&CCT&RGB&RGBW) smart strip controller is our newly developed high-end Led controller controlled by wireless remote controller, also with smart phone control and 4G long distance control( need WIFI box). The controller has auto-transmitting and auto-synchronizing function and with brightness, CCT, RGB and RGBW output mode. This controller adopt the widely used 2.4GHz wireless technology with the feature of low power consumption, long signal transmitting and strong anti-interference,ect. One comsumption remote control many controllers at the same time. Widely used on the controlling of hotel lighting and home lighting.
Item Name: LED Controller
Working Temperature: -20-60degree
Working Voltage: DC12-24V
Output Max: 6A/Channel
Total output Max: 15A
Control distance: 30m

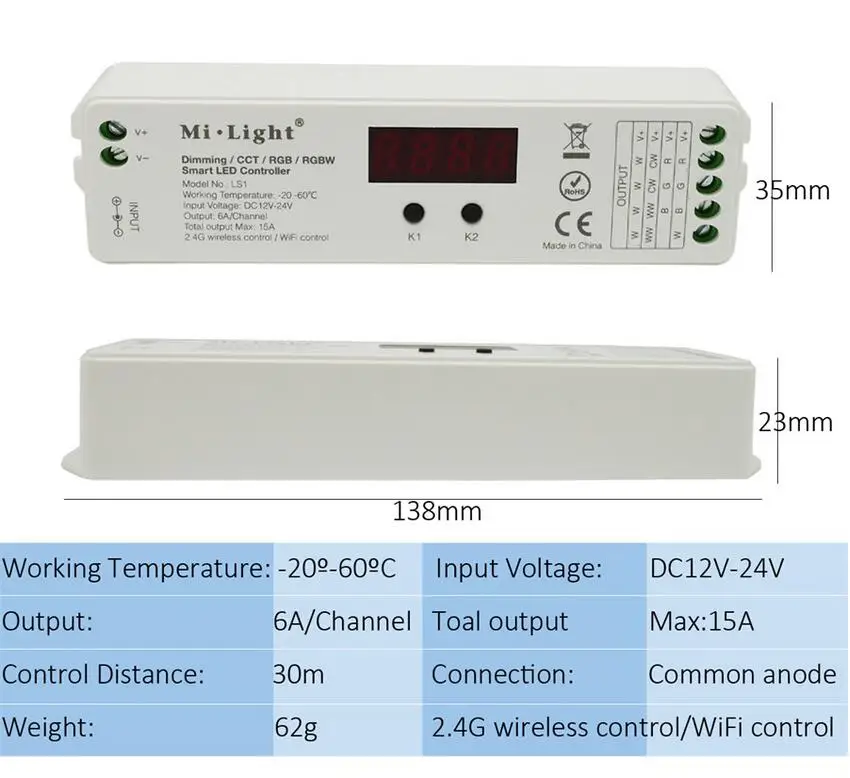

Size: 138*35*23mm
Link/Unlink:
Link: Turn off the power, then turn on again. Press "ON" 3 times within 3 seconds. The led light blinks 3 times slowly when it is done.
Unlink: Turn off the power, then turn on again. Press "ON" button 5 times within 3 seconds. The led light blinks 10 times swiftly when it is done.
Function:

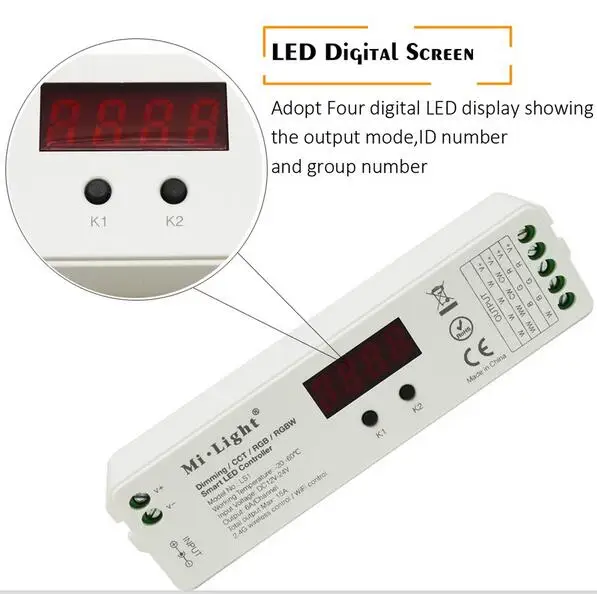

1. Display function instruction: This controller adopt 4bits digital tube to show the output mode. ID number and Group number

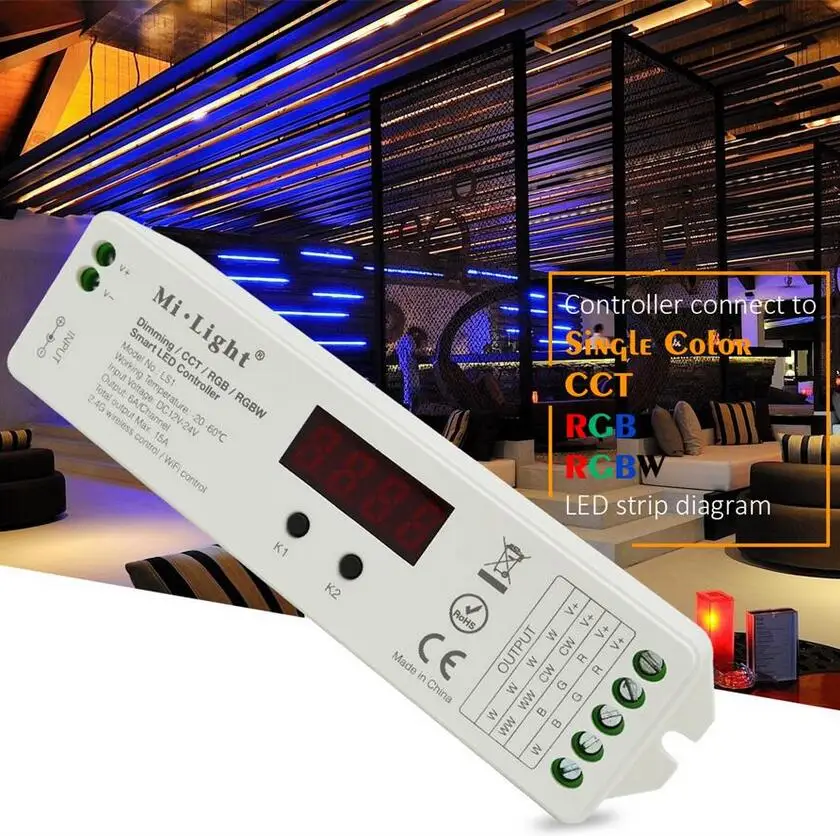

2. Display LED1-4(Output Mode)
Led1. Indicate 1 channel output, compatible to single color Led strip, brightness dimming

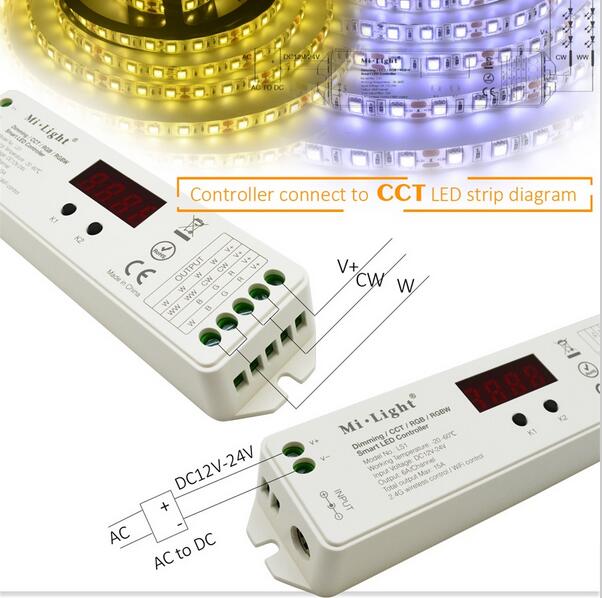

Led2. Indicate 2 channel output, compatible to CCT Led strip, brightness, dimming and CCT adjustable.

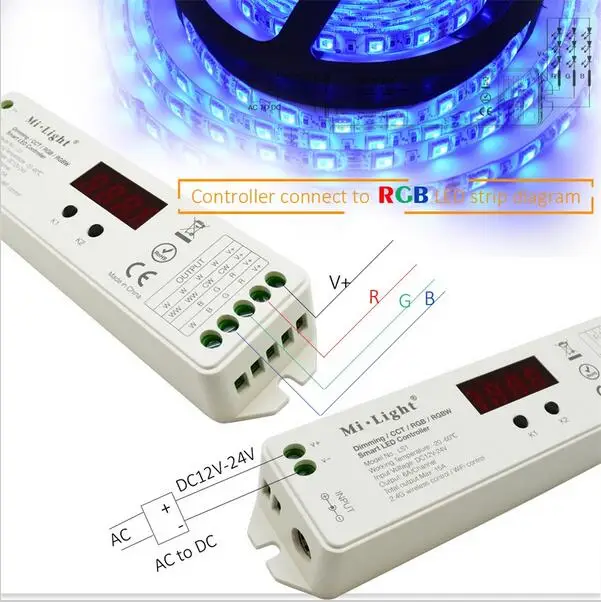

Led3. Indicate 3 channel output, compatible to RGB Led strip, color changing and brightness dimming.

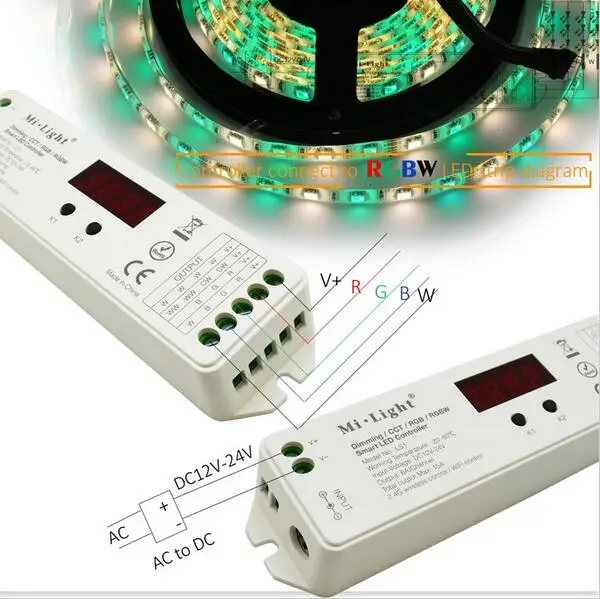

Led 4. Indicate 4 channel output, compatible to RGBW Led strip, color changing and brightness dimming.
Display 0000: Indicate the current controller ID number
Display CH00: Indicate the current Group number.
Product pictures for DC12V 24V 15A 2.4G wireless control Mi.Light LS1 4 in 1 Smart LED Controller
1.Reply your inquiry in 12 hrs
2.Any professional question would get a professional answer.
3.ODM/OEM is accept.
4.All products offer CE&ROHS&FCC Approved,2 years warranty.
5.Product damaged in non-human factors would be replaced freely.
1.How could I trust you?
We are Alibaba gold supplier,registered in administration,supervised by Alibaba rule and Chinese law.
2.How about your company ability?
We have 2 professional production line,4 sets Yamaha chip mounter,50-100 workers,
We can offer 50,000 pcs tubes,100,000pcs bulbs per month at least.
3.How about payment?
We accept payment as below:
T/T:Bank transfer,30% deposit,70% balance before shipping for order >20,000USD
West Union:Fast,low charge
L/C:Only for order >50,000USD
Alibaba Escrow:Protected by Alibaba
Paypal:Good way for sample order
1. Payment: T/T, Western Union, Paypal available.
2. Lead time: Normally 3~5 working days.
3. Samples can be delivery within 2~3 working days.
4. Shipping cost are quoted according to your requirement.
5. Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc.
6. MOQ:small order is available.
