Click on the image to view the original image
- Type:
- SMD LED
- Model Number:
- ceramic 3535 smd 1w
- Chip Material:
- InGaN
- Emitting Color:
- Cool White
- Luminous Intensity:
- 15-25lm
- Luminous Flux(lm):
- 15-25lm
- Optical Attenuation(%):
- 0.01
- Power:
- 1W
- Power Dissipation:
- 1
- Viewing Angle(°):
- 120
- Color Rendering Index(Ra):
- 80
- Color Temperature:
- green
- Operating Temperature(℃):
- -20 - 75
- Storage Temperature(℃):
- -40 - 120
- Place of Origin:
- Guangdong, China
- Brand Name:
- Greenlantern
- Certification:
- CE, RoHS
- Chip Brand:
- Bridgelux
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 15X15X2 cm
- Gross weight per batch:
- 0.3 kg
- Package Type:
- anti-static bag & Carton box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
- 2

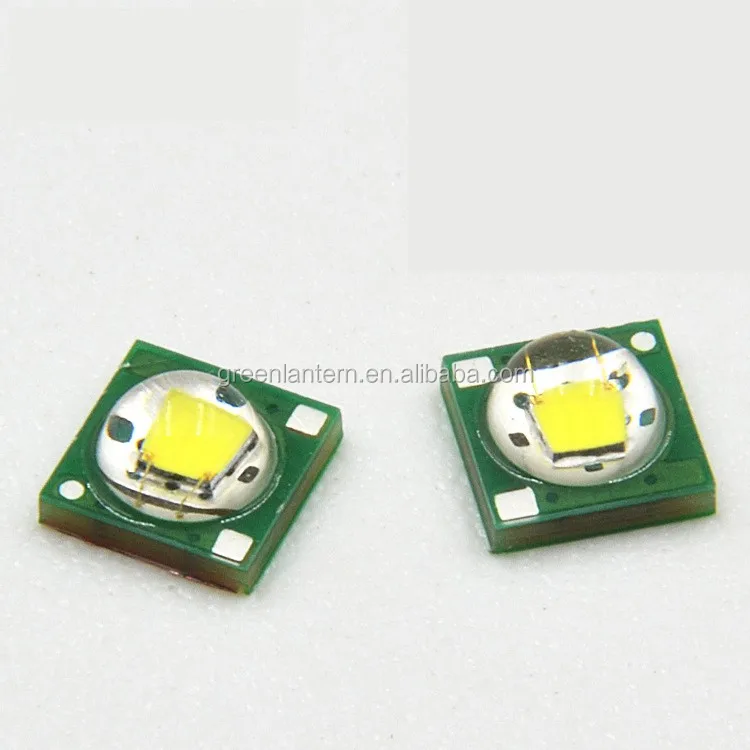

High power smd 3535 led chip 1w white color
Item:3535 SMD LED
Power:1w
Lighting color: white
Chip Size:45mil
6000k-6500K
Working Current:350mA
Voltage : 3.0-3.4v
lumen:130-140lm
Wire Material:99.99% pure golden wire
Current :350mA
Warranty:50000h
Product Features
• Well-known chip material
• 99.99% gold wire bonding
• High flux per LED
• Low-temp & lead free reflow soldering
• More energy efficient than incandescent and most halogen lamps
• Low Voltage DC operated
• Instant light(less than 100ns)
Typical Applications
• Portable (flashlight, bicycle)
• Uplighters/Downlighters
• Decorative/Entertainment (stage light)
• Bollards/Security/Garden
• Indoor/Outdoor Commercial and Residential Architectural
• Automotive Ext (Stop-Tail-Turn, CHMSL, Width Lamp)
Green Lantern Optoelectrical Light Factory Profile:
1) We are a large LED lighting manufacturer for 12 years
2) We founded in 2005 and already established 3 factories and 1 trading company
3) We specialize in producing LED lights, such as Smart led bulb,Milight serious,LED Rope Lights, Rope Lights, LED Panel light,LED Controller,LED tube,LED downlight..
4) We focus on Quality manufacture our lights in accordance with CE,GS, RoHS ,SAA ,TUV certification
5) We meet and exceed global quality standards
6) We now ship well over half of our output to countries and regions worldwide
1.Reply your inquiry in 12 hrs
2.Any professional question would get a professional answer.
3.ODM/OEM is accept.
4.All products offer CE&ROHS&FCC Approved,2 years warranty.
5.Product damaged in non-human factors would be replaced freely.
1. Payment: T/T, Western Union, Paypal available.
2. Lead time: Normally 3~5 working days.
3. Samples can be delivery within 2~3 working days.
4. Shipping cost are quoted according to your requirement.
5. Delivery ways:DHL,EMS,UPS,FedEx door to door service,by sea, air and etc.
6. MOQ:small order is available.
