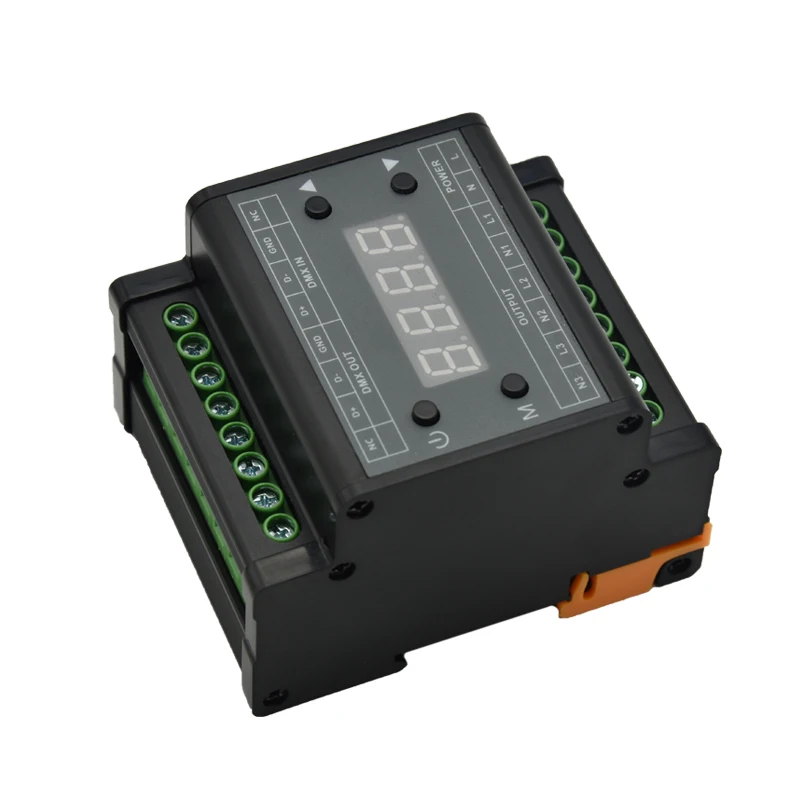

DMX302 DMX triac dimmer led brightness controller AC90-240V TRIAC 3-Output
Summarization
DMX triac dimmer adopts industrial grade advanced computer control chip, the shell adopt guide rail type, suitable for industrial environment; Increase 3 channels relay power supply output, adopts high-voltage MOS transistor as the control circuit to achieve trailing edge dimming. It is used for controlling a variety of lamps which connects with triac power supply, and also can be connected with high-voltage LED load light; it has many advantages such as convenient to connect, easy to use and others. According to customer"s actual demand can realize the dimming function.
Technical parameters
Working temperature: -20-60℃
Supply voltage: AC90~240V(50~60Hz)
Output: 3 channels

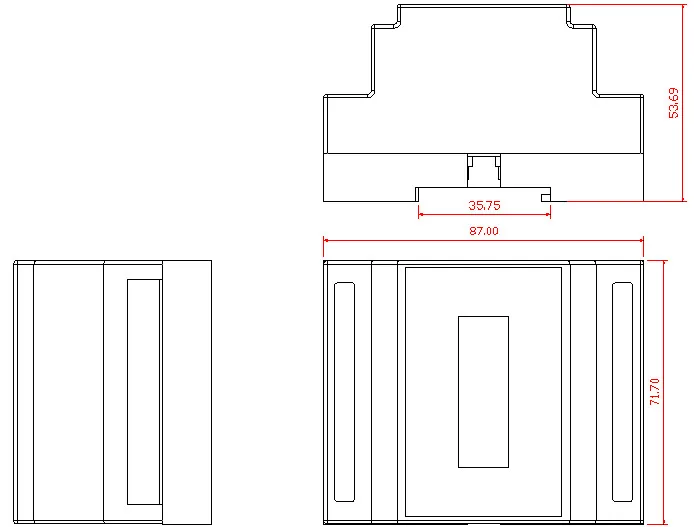

External dimension: L87×W72×H54 mm
Packaging size: L100×W80×H75 mm
Net weight: 155g
Gross weight: 210g
Static power consumption: <3W
Output current: <1A (each channel)
Output power: 110V: <3×110W, 220V: <3×220W
Diming method: trailing edge dimming

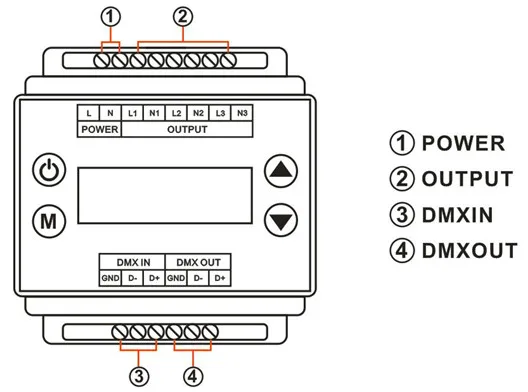

External Dimension Interface Specification
POWER: The AC power input interface, input voltage range is AC 90-240v.
OUTPUT: 3 road load output interface, the output voltage range: AC 90-240v, every road maximum current 1 A.
DMXIN: DMX signal input interface.
DMXOUT: DMX signal output interface.
