DMX303 3channels high-voltage 0-10V led dimmer,AC90-240V Power supply 0-10V output signal, DMX dimmer controller for LED strips
Summarization
DMX 0-10V dimmer adopt industrial grade advanced computer control chip, the shell adopt guide rail type, suitable for industrial environment; Increase 3 channel relay power supply output, as 3 channel 0-10V power supply input, the dimming effect is better. Used to control the lamps and lanterns which connect with 0-10V power supply, have convenient wiring, easy to use such advantages; According to customer"s actual demand can realize the dimming function.

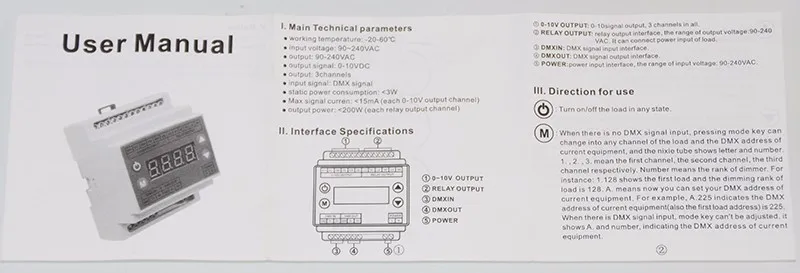

Technical parameters
Working temperature: -20-60
Power supply voltage: AC90~240V(50~60Hz)
Output: 3 channel
Output signal: 0-10V

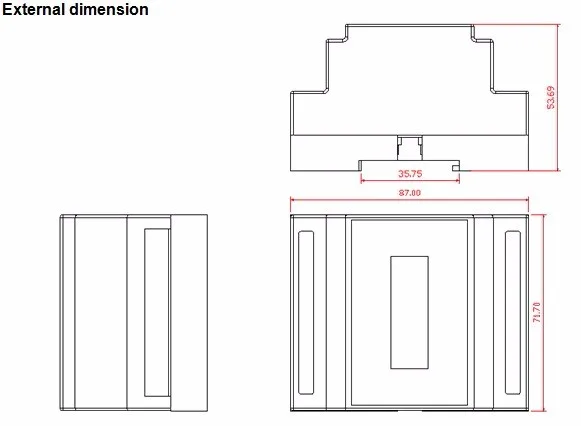

External dimension: L87×W72×H54 mm
Packing size: L100×W80×H75 mm
Net weight: 155g
Gross weight: 210g
Static power consumption: <3W
0-10V output current: <15mA(each channel)
Relay maximum output power: <200W(each channel)

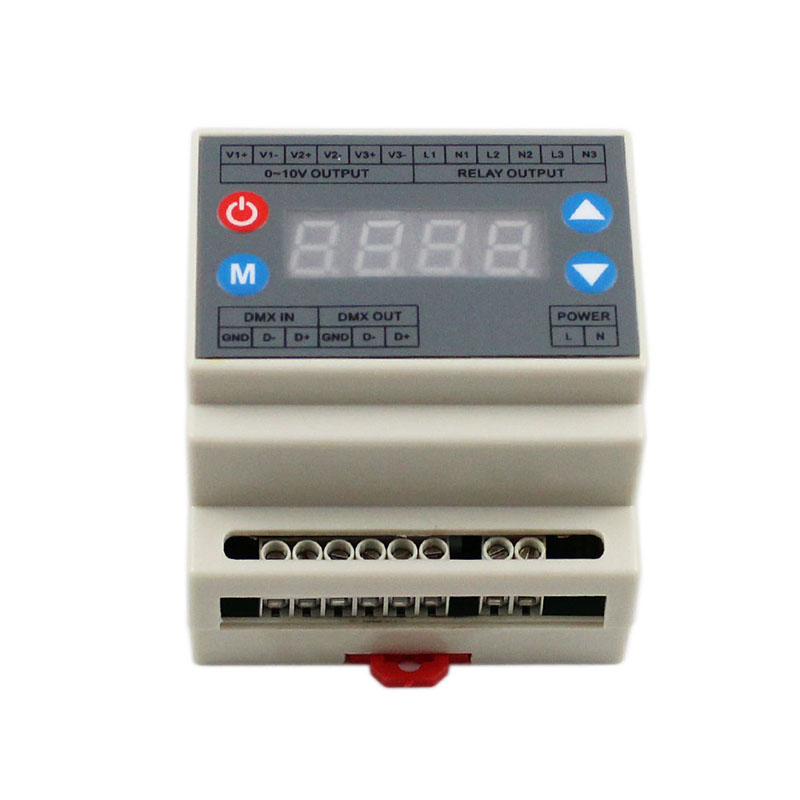

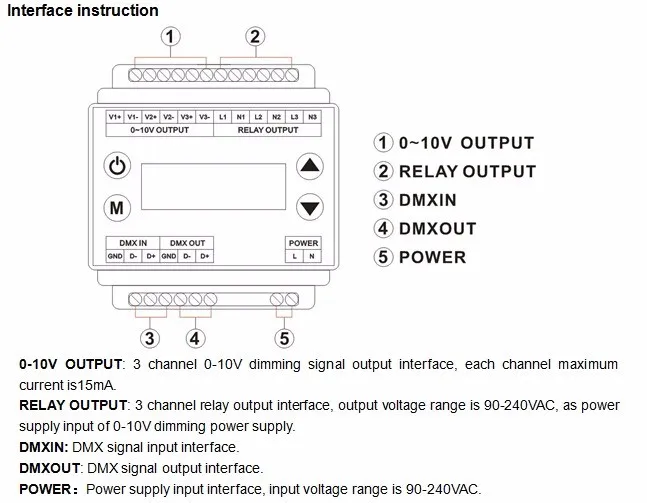

0-10V OUTPUT: 3 channel 0-10V dimming signal output interface, each channel maximum current is15mA.
RELAY OUTPUT: 3 channel relay output interface, output voltage range is 90-240VAC, as power supply input of 0-10V dimming power supply.
DMXIN: DMX signal input interface.
DMXOUT: DMX signal output interface.
POWER:Power supply input interface, input voltage range is 90-240VAC.
