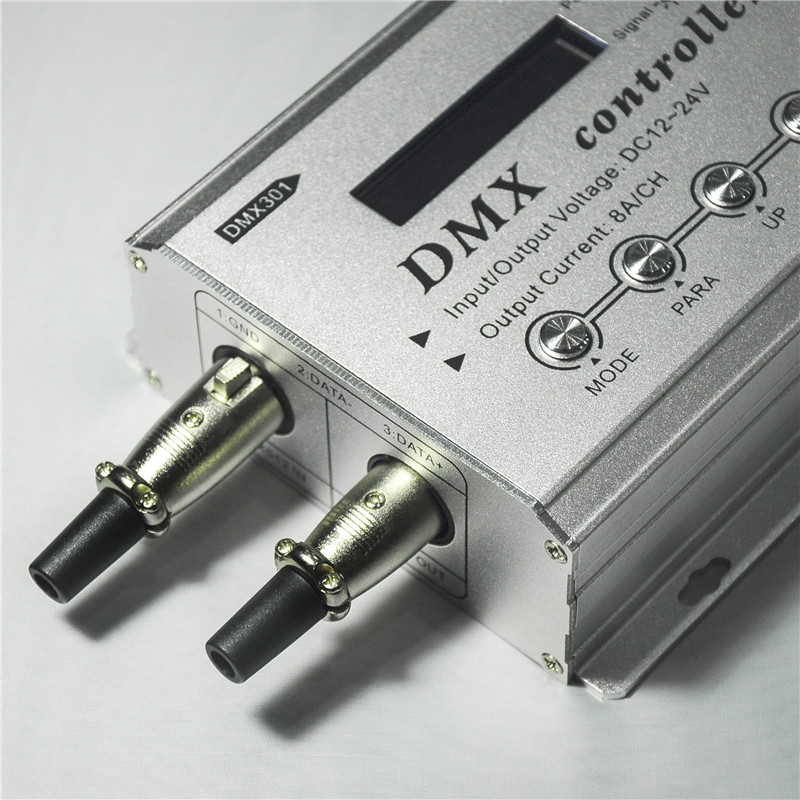

DC12-24V DMX controller with LCD display control RGB color change of 4 line 3 channels LED lamps,1 channel brightness adjustable
Summarization
Low-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface, used for control the RGB color change of 4 line 3 channels(common anode) LED lamps and brightness change of one channel, up to 34kinds of change programs to choose, at the same time can accept DMX-512 international standard digital control. Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc. method to work. According to the customer"s actual demand, can achieve jumpy changing, gradual changing, stroboscopic such change effect.
Technical Parameters
Working temperature: -20-60
Power supply voltage: DC 12~24V
Output voltage: DC 12~24V
Output connect way: common anode 4 channels
External dimension: L203ΧW134ΧH50 mm
Packing size: L255ΧW155ΧH60 mm
Net weight: 0.59kg
Gross weight: 0.75kg
Static power consumption: <3.96W
Maximum output current: 8A/each channel
Working frequence: 300Hz
