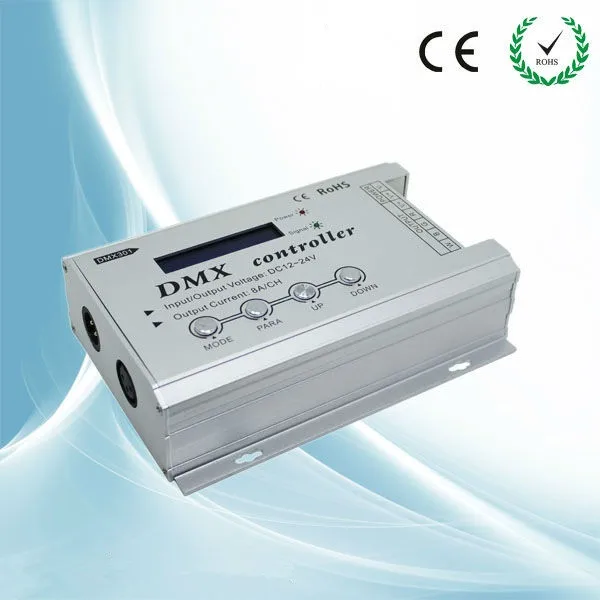

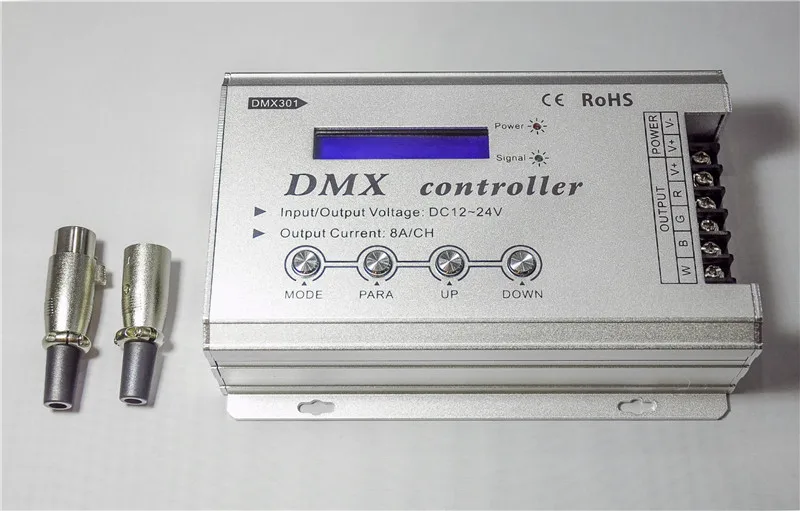

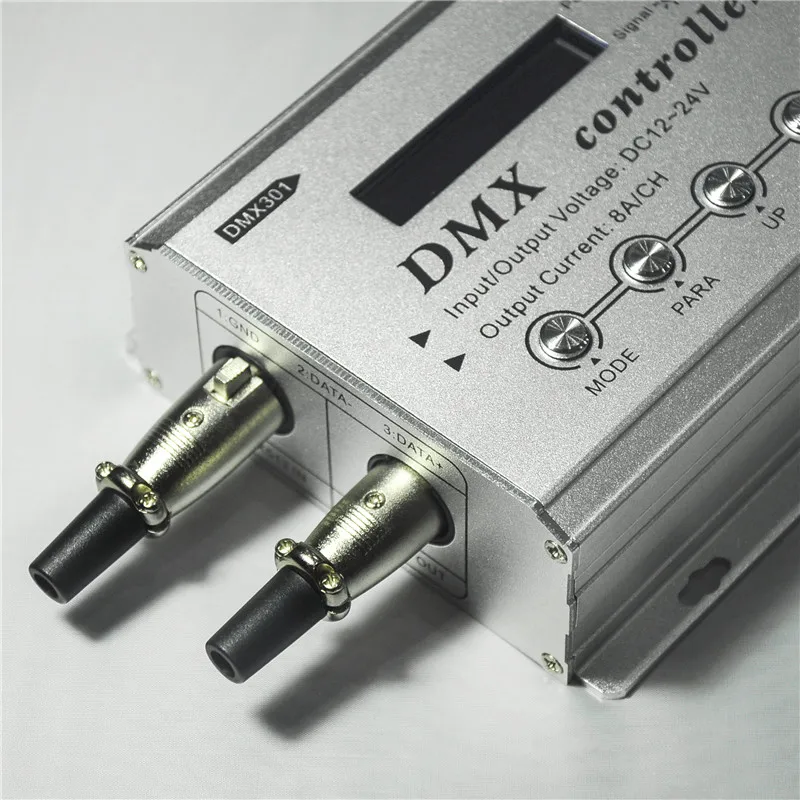

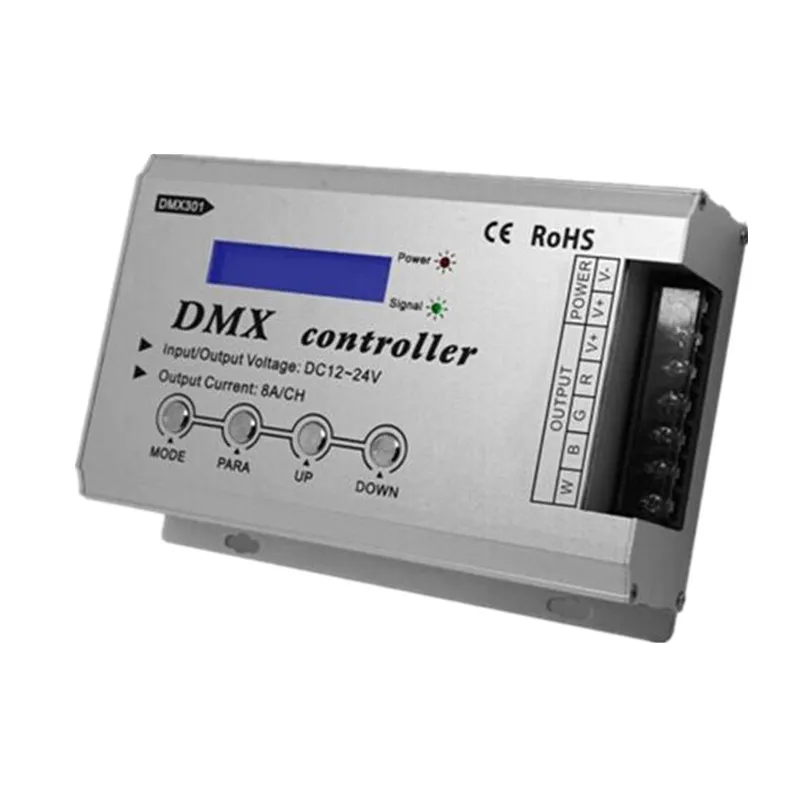

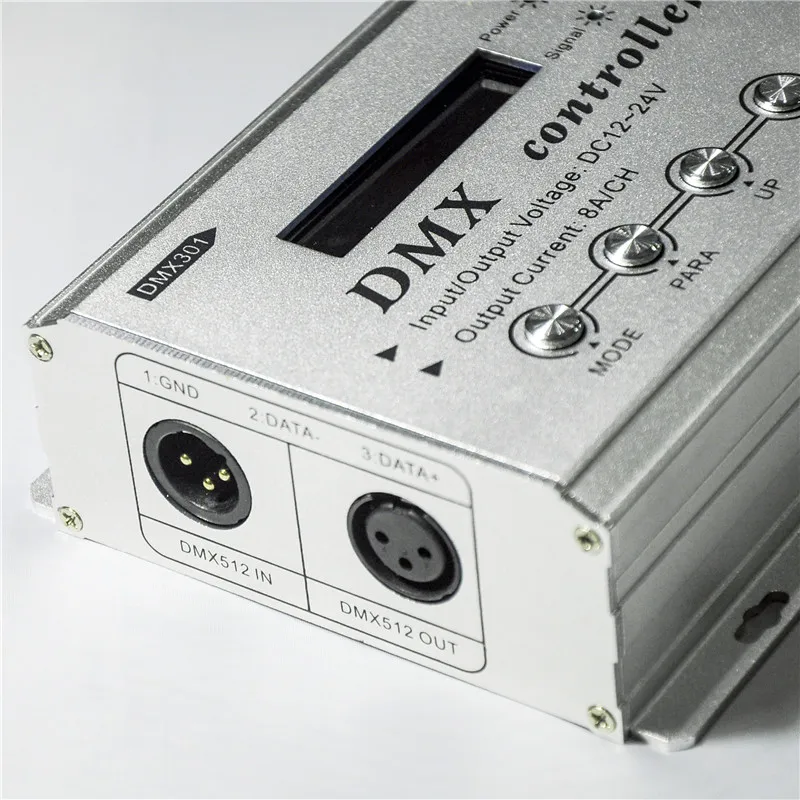

DMX301 low voltage DMX led controller (with LCD display);DC12~24V input;Output current:8A*3channels,power: 12V:<144W, 24V:<288W

Click on the image to view the original image

Product：	views：7DMX301 low voltage DMX led controller (with LCD display);DC12~24V input;Output current:8A*3channels,power: 12V:<144W, 24V:<288W
Branch：	greenlantern
Type：	DMX301
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-17 04:45

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: greenlantern

Model Number:: DMX301 low voltage DMX led controller

Type:: DMX301

Voltage:: DC12~24V

Use:: Universal

Maximum output current:: 8A/each channel

Static power consumption:: <3.96W

Output connect way:: common anode 4 channels

keyword:: DMX301 low voltage DMX led controller

keyword1:: low voltage DMX led controller

keyword2:: DMX led controller

keyword3:: led controller

keyword4:: controller

keyword5:: DMX301 led controller

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: carton box

Port: shenzhen

DMX301 low voltage DMX led controller (with LCD display);DC12~24V input;Output current:8A*3channels,power: 12V:<144W, 24V:<288W

Summarization

Low-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface, used for control the RGB color change of 4 line 3 channels(common anode) LED lamps and brightness change of one channel, up to 34kinds of change programs to choose, at the same time can accept DMX-512 international standard digital control. Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc. method to work. According to the customer"s actual demand, can achieve jumpy changing, gradual changing, stroboscopic such change effect.

Technical Parameters

Working temperature: -20-60

Power supply voltage: DC 12~24V

Output voltage: DC 12~24V

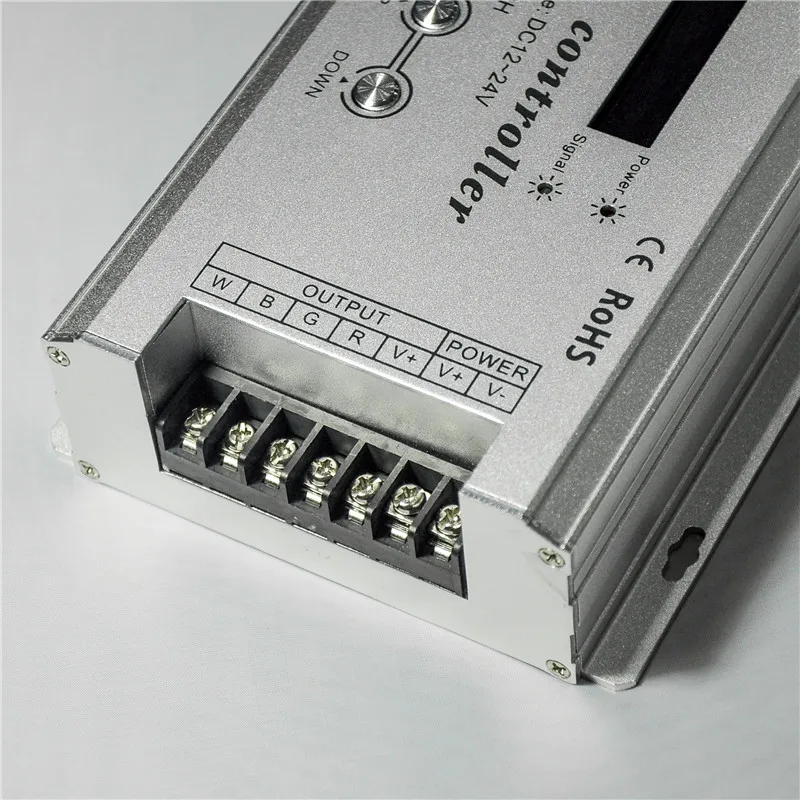

Output connect way: common anode 4 channels

External dimension: L203ΧW134ΧH50 mm

Packing size: L255ΧW155ΧH60 mm

Net weight: 0.59kg

Gross weight: 0.75kg

Static power consumption: <3.96W

Maximum output current: 8A/each channel

Working frequence: 300Hz
