computer connect with USB control led lamps DMX512 channels input/output USB-DMX512 controller

System introduce

USB-DMX512 controller connect with the USB interface of computer, through the friendly operation interface of computer, in order to achieve the aim of controlling lamps, It has a lot of advantages such as easy operation and simplicity to use .

The hardware composed of 3 parts: PC,USB-DMX and kinds of DMX equipment.

Identity:

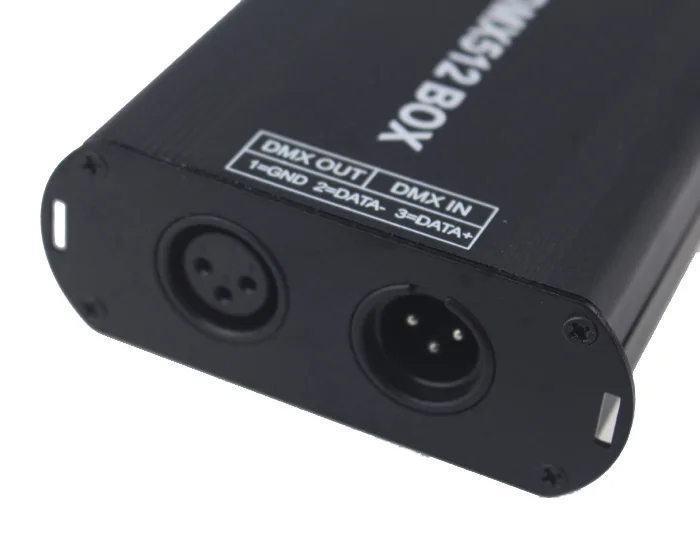

 Normal DMX512 channels output, adopt DC/DC power insulation and photoelectricity insulation.

 Normal DMX512 channels input, adopt DC/DC power insulation and photoelectricity insulation.

 Support windows XP /Vista /Win 7 operation system, system identify automatically, Plug-and-play without installing drivers.

 USB interface connect with computer, computer interface supply power directly,the maximum working current is 135mA.

 Build random storage, data transfer smoothly.

 PC lamp control software adopt powerful PC FreeStyler lamp control software, it can upgrade Constantly.

Products and parts:

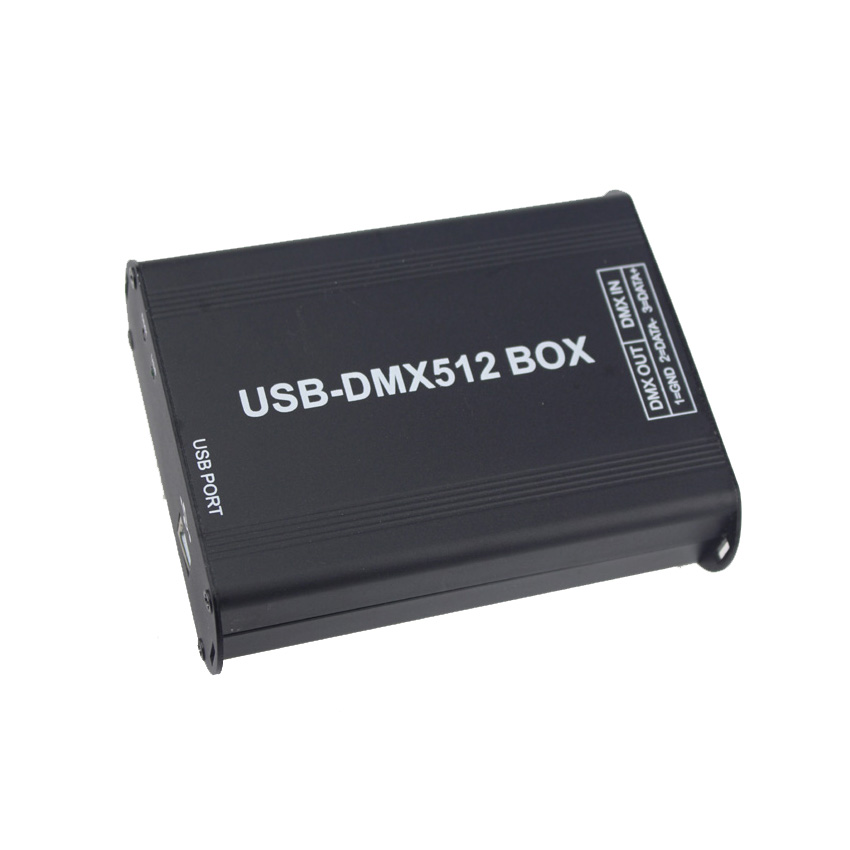

1.one piece of DMX adapter

2.one piece of interface wire

3.A suit of FreeStyler light control software(CD)

4.Working temperature:0-60℃

5.Supply voltage:DC5V

6.External dimension:L128ΧW100ΧH40mm

7.Packing size:L180ΧW150ΧH61mm

8.Net weight:350g

9.Gross weight:450g

The lowest configure of computer:

1.CPU above PII300.

2.Hard disk above 1G.

3.Memory 32M above.

4.Display 1024*768, 24-bit true color.

5.Windows98 /Me/2000/XP operation system.

6.CD-ROM.

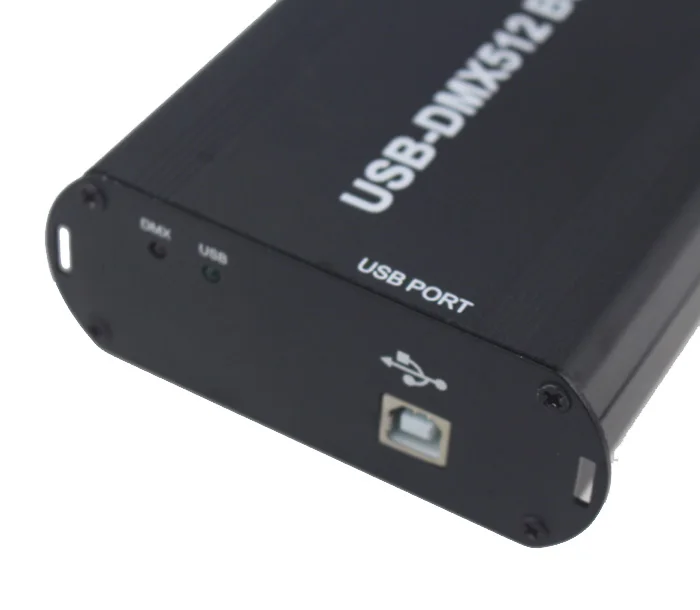

Interface Instruction

“FUN” is used to upgrade the software of controller.  Details of operation is as follows: hold the FUN button and insert the USB cable at the same time. The PC will recognize and pop up a U disk. Copy the files which used to upgrade into this U disk, then pull up the USB cable and reconnect to the power. When the PC correctly recognize controller, USB signal light is lit, the upgrade is complete.
