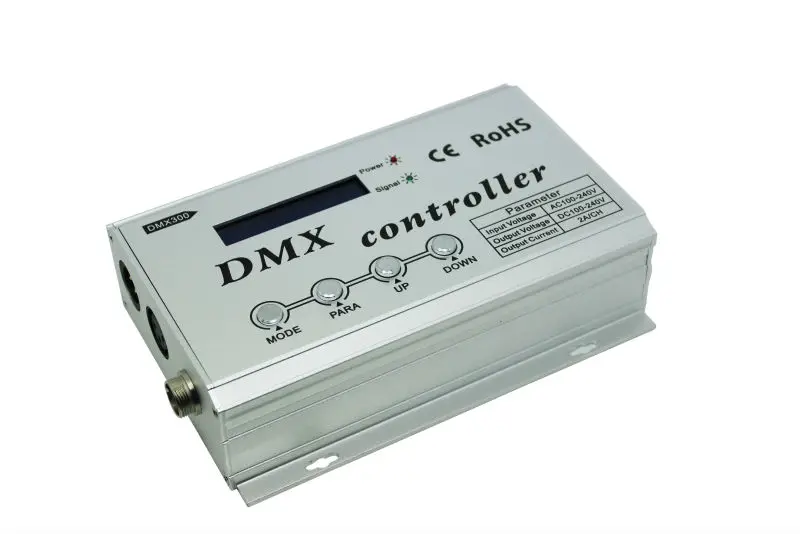

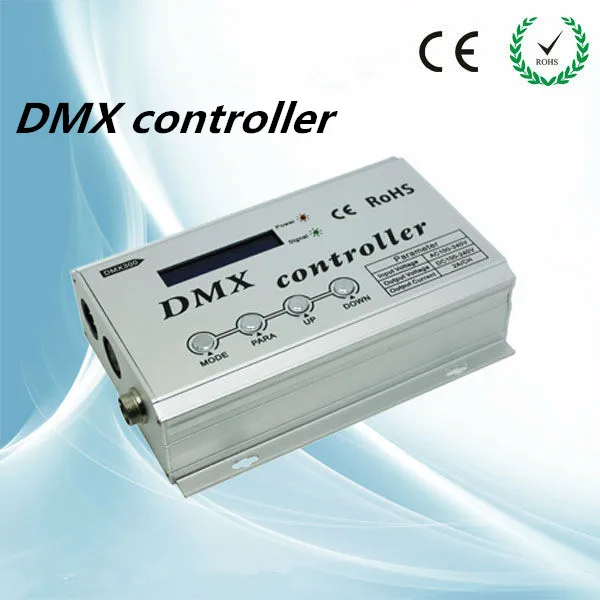

led 220V High-voltage DMX 300 controller with LCD display for led strip
Summarization

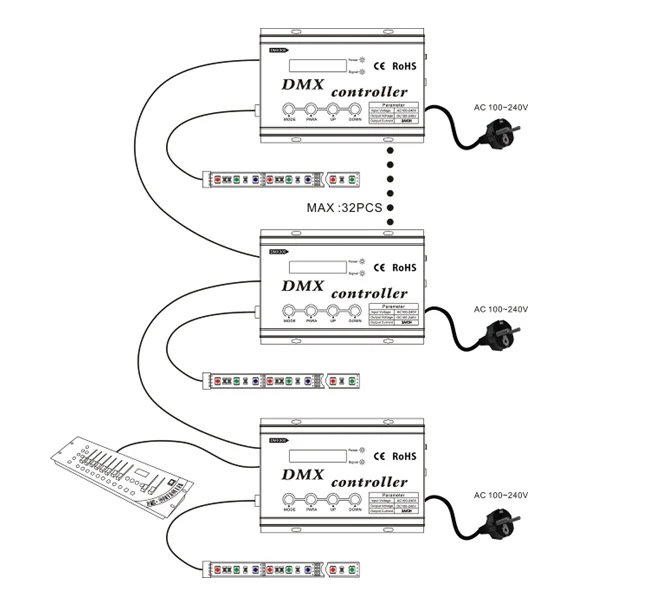

High-voltage DMX controller with LCD display is a kind of controller with LCD digital display interface, used for control the RGB color change of 4 line 3 channels(common anode) LED lamps, up to 34kinds of change programs to choose, at the same time can accept DMX-512 international standard digital control. Controller can be stand-alone operation, automatically online, accept standard DMX512 console control signal etc. method to work. According to the customer"s actual demand, can achieve jumpy changing, gradual changing, stroboscopic such change effect.
Technical Parameters
Working temperature: -20-60°C
Power supply voltage: AC 100~240V 50/60HZ
Output voltage: DC 100~240V
Output connect way: common anode 4 line 3 channels

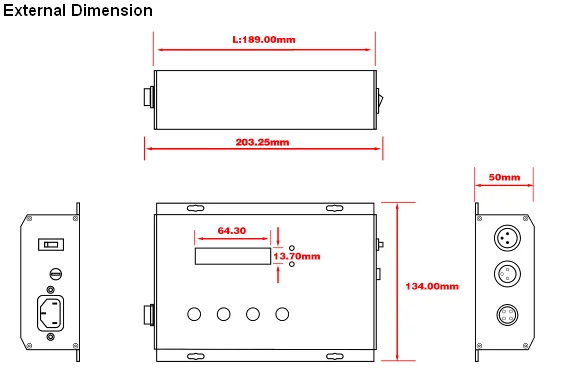

External dimension: L203ΧW134ΧH50 mm
Packing size: L310ΧW170ΧH60 mm
Net weight: 0.77kg
Gross weight: 1.22kg
Static power consumption: <3.96W
Maximum output current: 3*2A
Dimming frequence: 800Hz
Maximum output power: 660W(input voltage 110V), 1320W(input voltage 220V)
