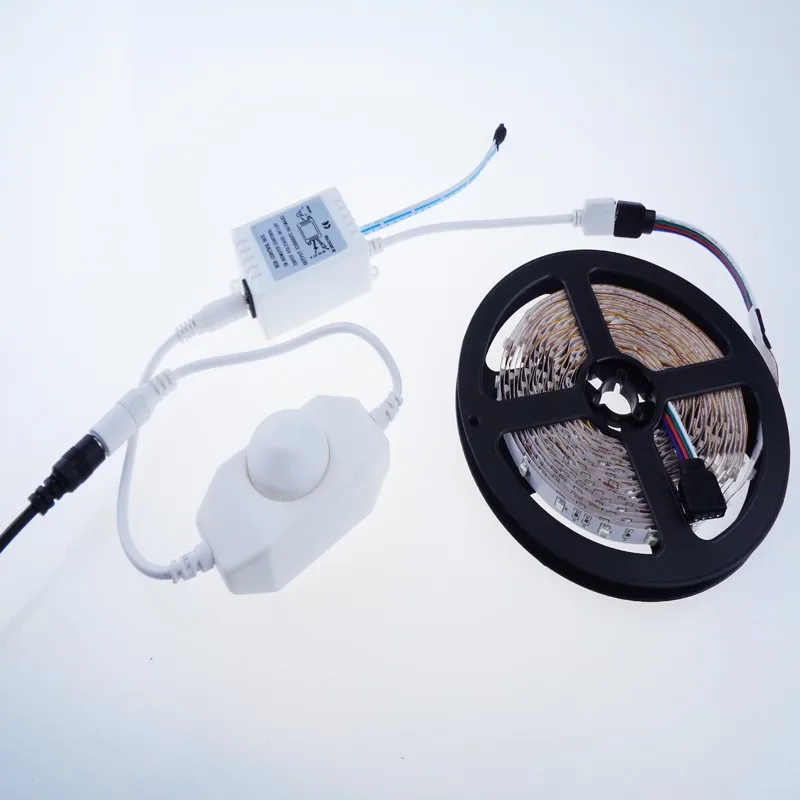

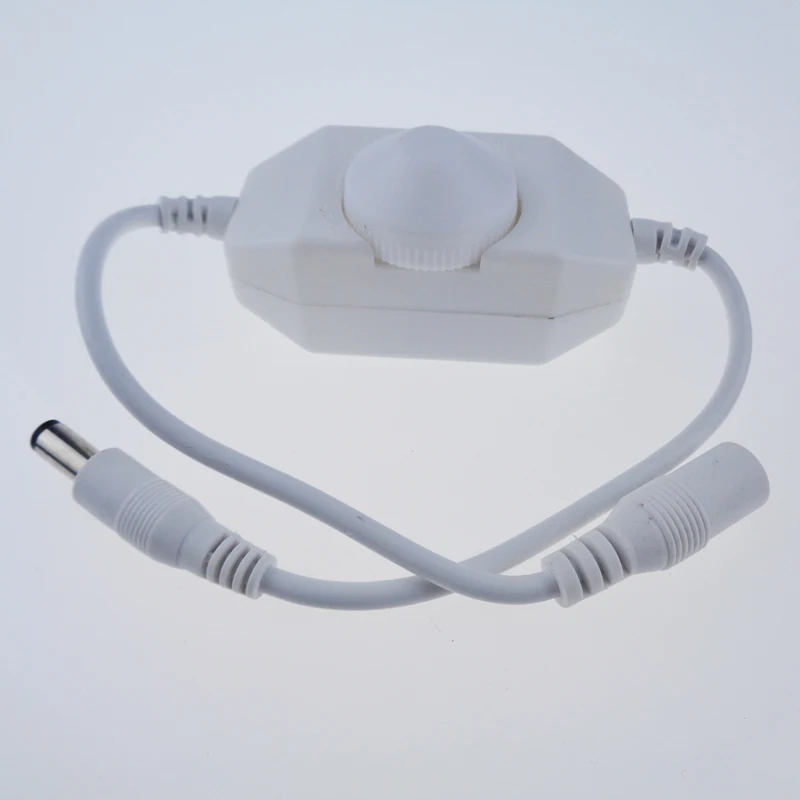

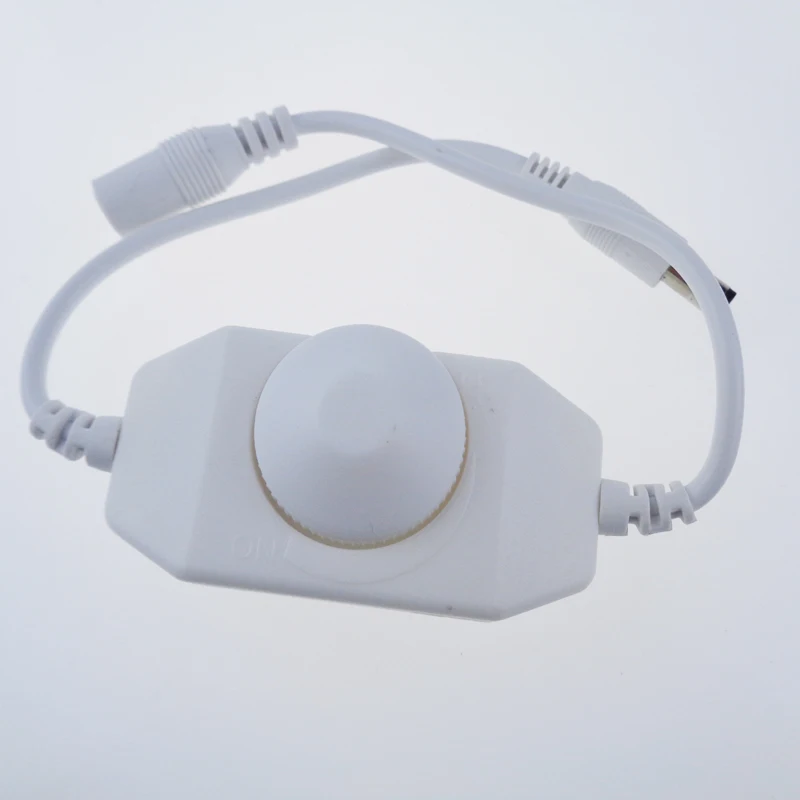

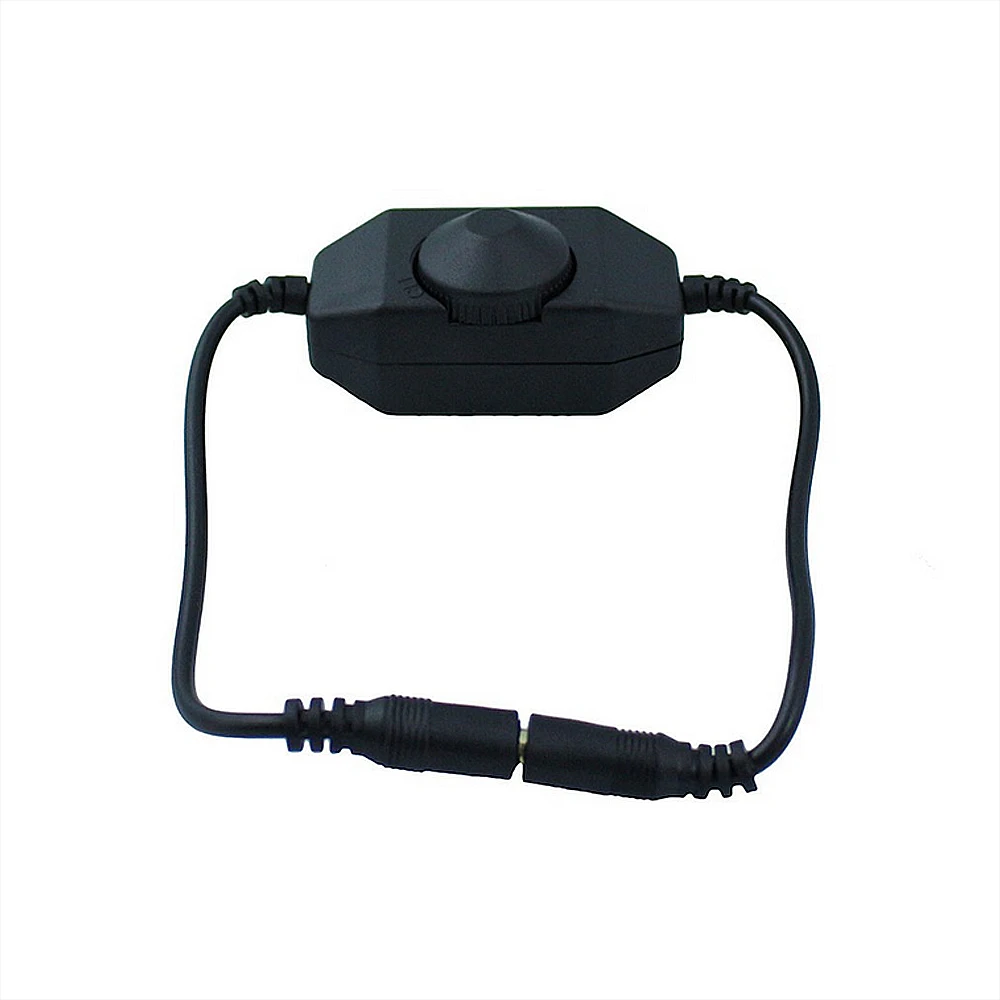

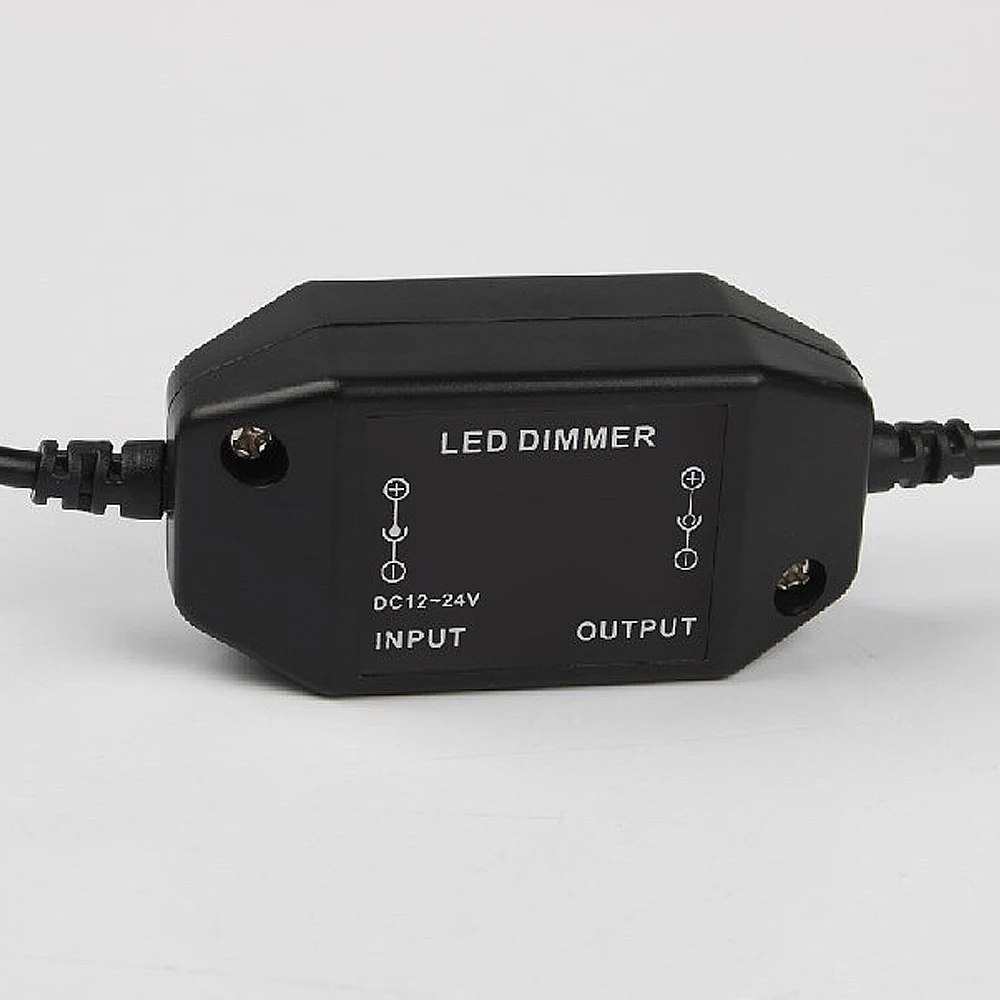

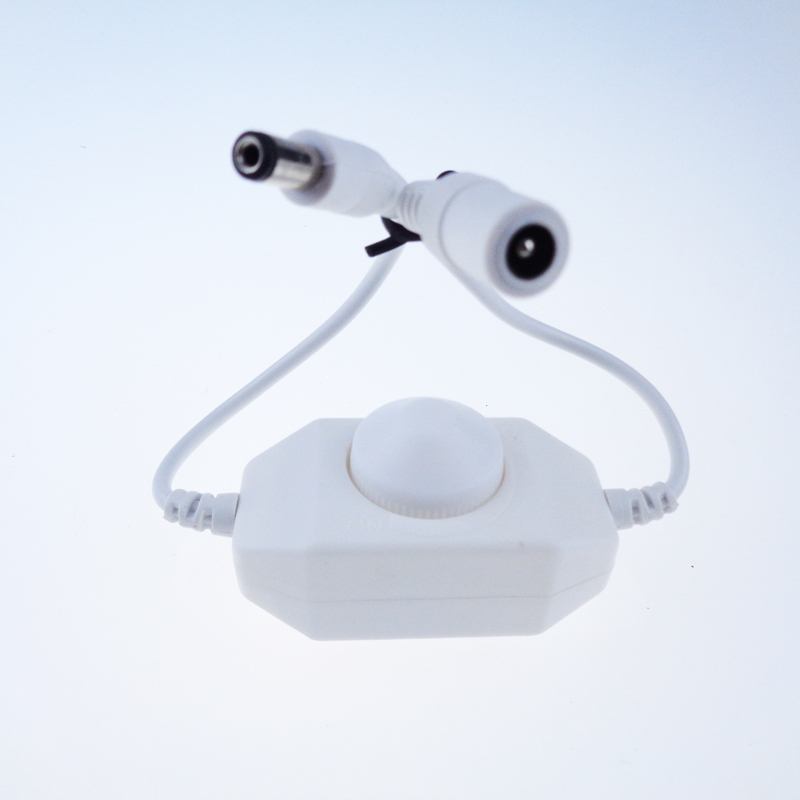

factory price led Single Channel Inline 12V 2A PWM mini led dimmer controller for single colour LED Light Strip Lamp
Technical
Parameters
Wking temperature: -20-60°C
Supply voltage: DC5V, 12V-24V optional(specify the required voltage on der fm)
Output: 1 channel
External dimension: L61ΧW33ΧH32 mm
Packing size: L105ΧW65ΧH40 mm
Net weight: 30g
Gross weight: 55g
Static power consumption: <1W
Output current: <6A
Power output: 5V<10W, 12V<72W, 24V<144W

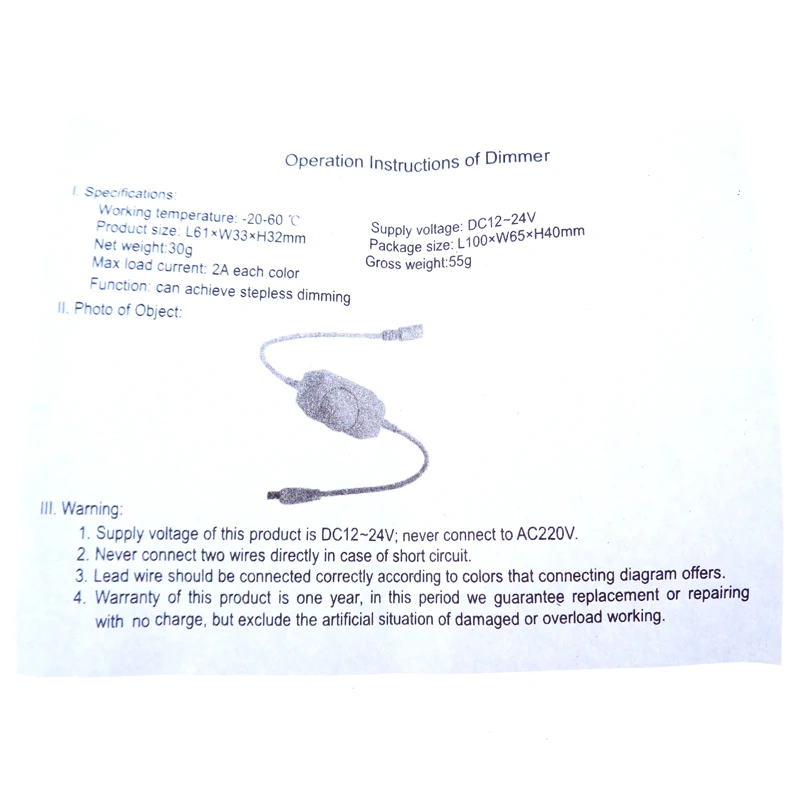

Direction f use:
1. Connect the load wire at first, following by the power wire;
2. Adopt rotary button, its function as follows:
Rotate button to the right, brightness will be brighter, when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker, when you rotate it to the far left, the light will be turned off.
