- Place of Origin:
- Guangdong, China
- Brand Name:
- greenlantern
- Model Number:
- GL
- Type:
- Manual Switch
- Max. Load Power:
- DMX signal output
- Voltage:
- AC100-240V
- Keyword:
- Artnet
- Name:
- eight universe Artnet controller
- Weight (G.W):
- 2200g
- Package Size:
- L550*W265*H100mm
- Dimension:
- L482.6*W200*H44mm
- working temperature:
- -20℃~65℃
- DMX channels:
- 8*512 channels
- Output signal:
- DMX512
- Input signal:
- Artnet
- Supply Ability:
- 100000 Piece/Pieces per Month
- Packaging Details
- carton box
- Port
- shenzhen

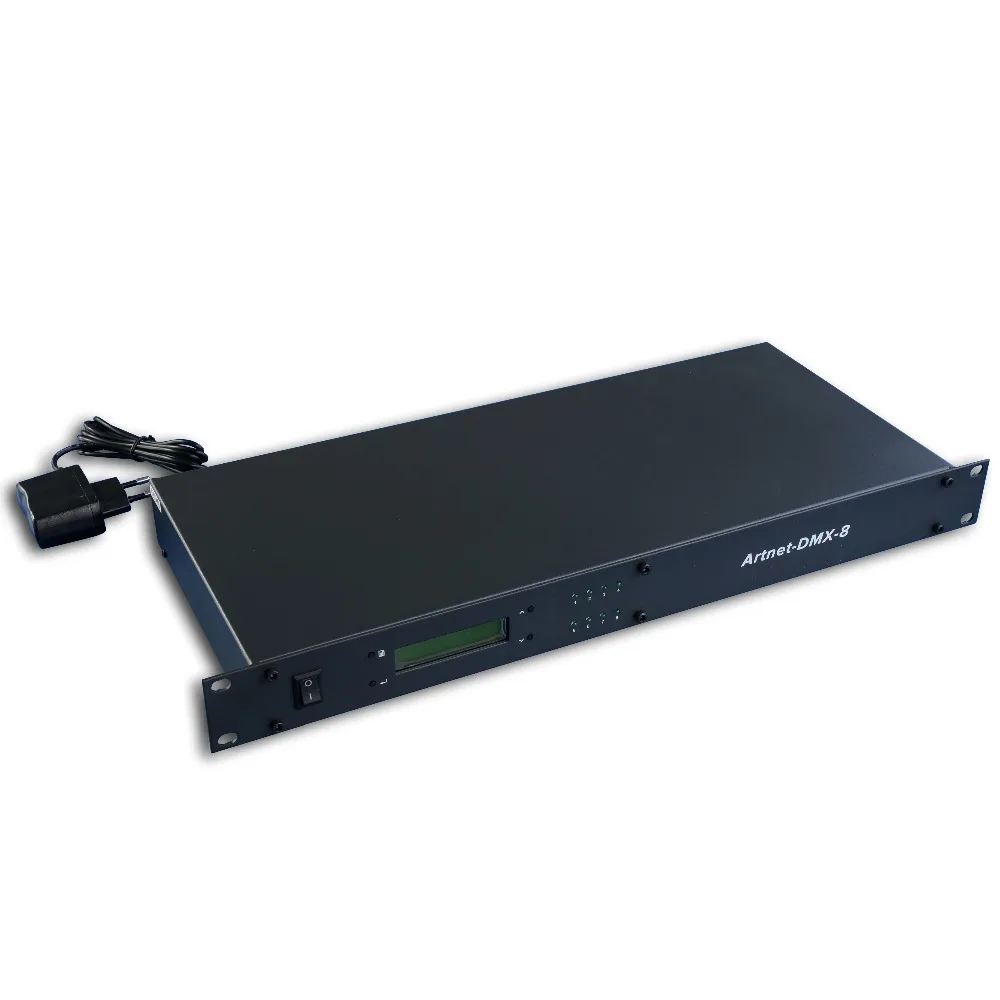

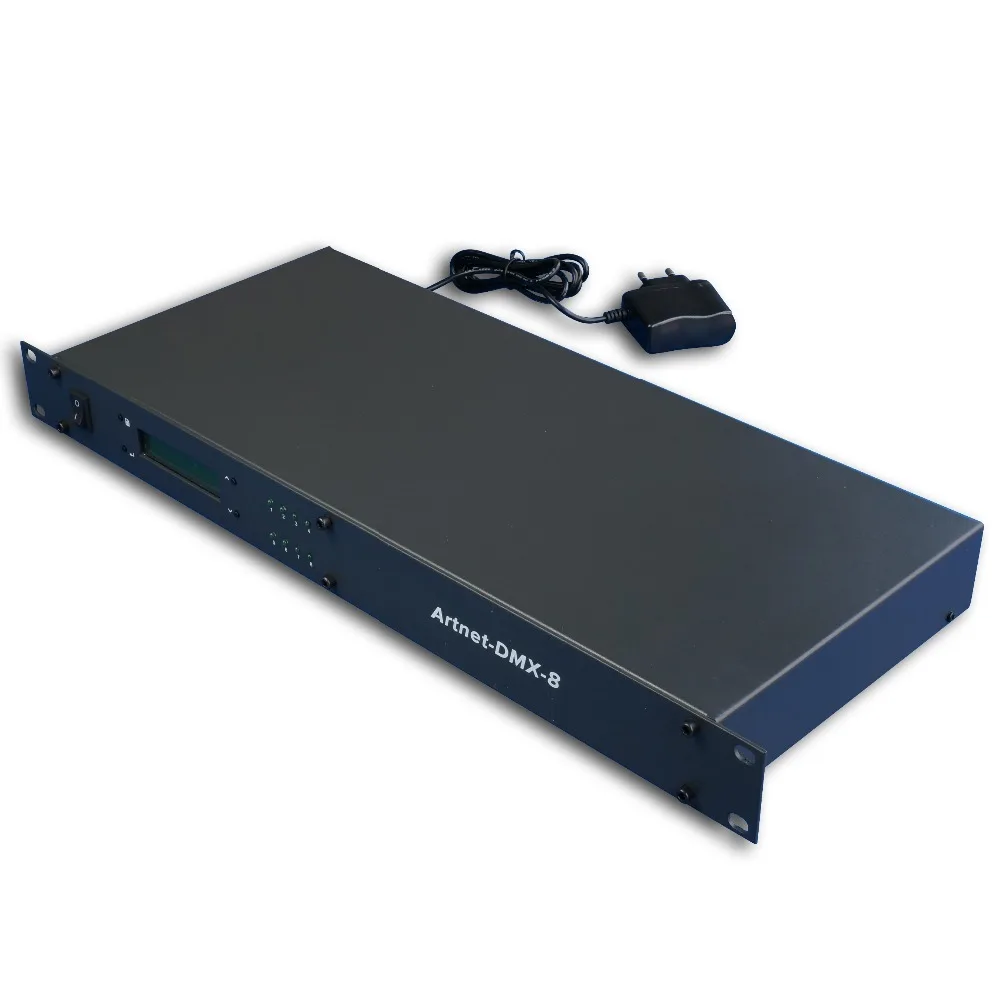

Artnet-DMX-8;ArtNet into DMX converter;convert the Artnet network data package into DMX512 data;512channel *8 ports controller
Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into DMX512 date, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it supports RJ45 network interface and standard DMX512 output interface.

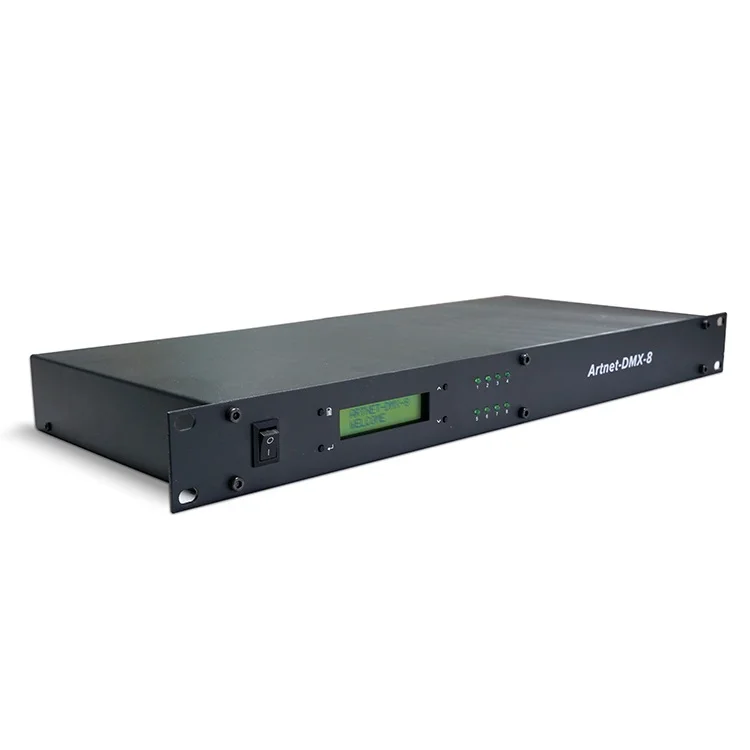

Artnet-DMX-8 use standard 1U(19" ) chassis architecture, convenient installation in professional cabinet, easily operation setting with LCD display.

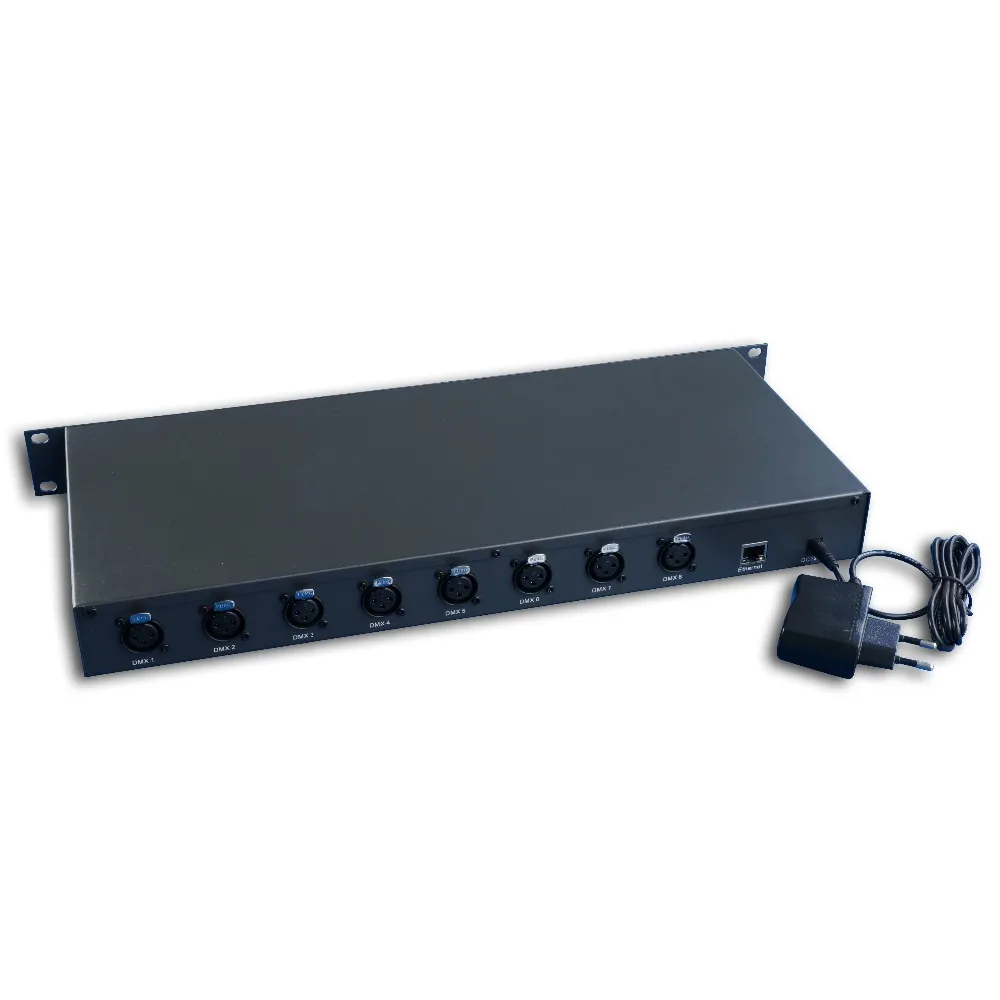

Artnet-DMX-8 provides 8 standard DMX512 data output port, total output 8×512 data.

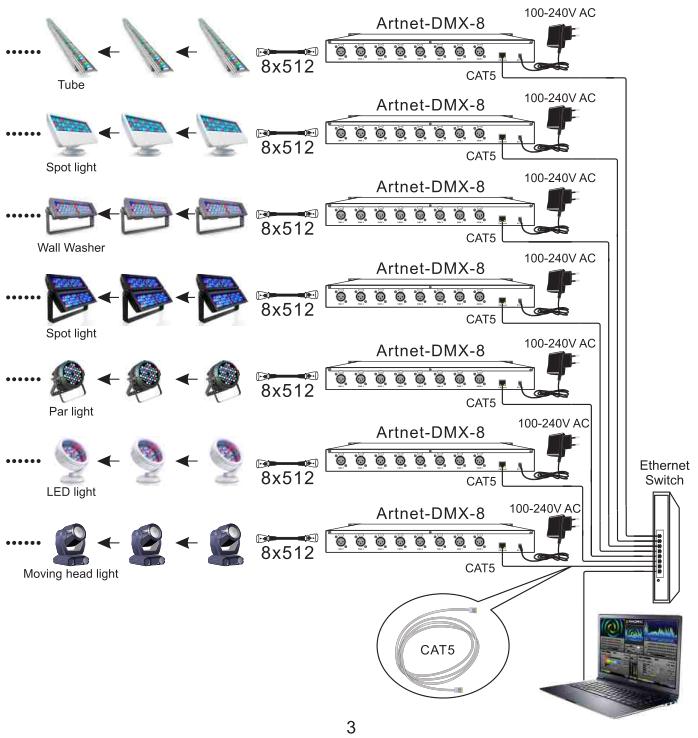

It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on.
Performance Features
|
| ||||||||||||||||||
