wholesale DC12V-24V 8A Automatic Infrared Body Motion Sensor PIR Switch Light Auto On Off
Function:
The human body is an infrared detection sensor switch controller, the use of infrared detection control the load of the switch.Users according to actual needs, the human body sensors installed in the appropriate environment
PIR(Passive infrared) sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted
by human body.
Operating voltage is DC 12-24V, and output voltage is equal to input voltage. High sensitivity, easy for installing.
Widely used on the Motion-activated lighting, LED strips Security System, automatic sensory device and more.
Technical parameters
- Working temperature: -20-60 degree
- Supply voltage: DC12/24V
- Output voltage: DC12/24V
- Sensing distance: 5 ~ 8 M.
- Ham should angle: 60 degrees.
- Output current: <8

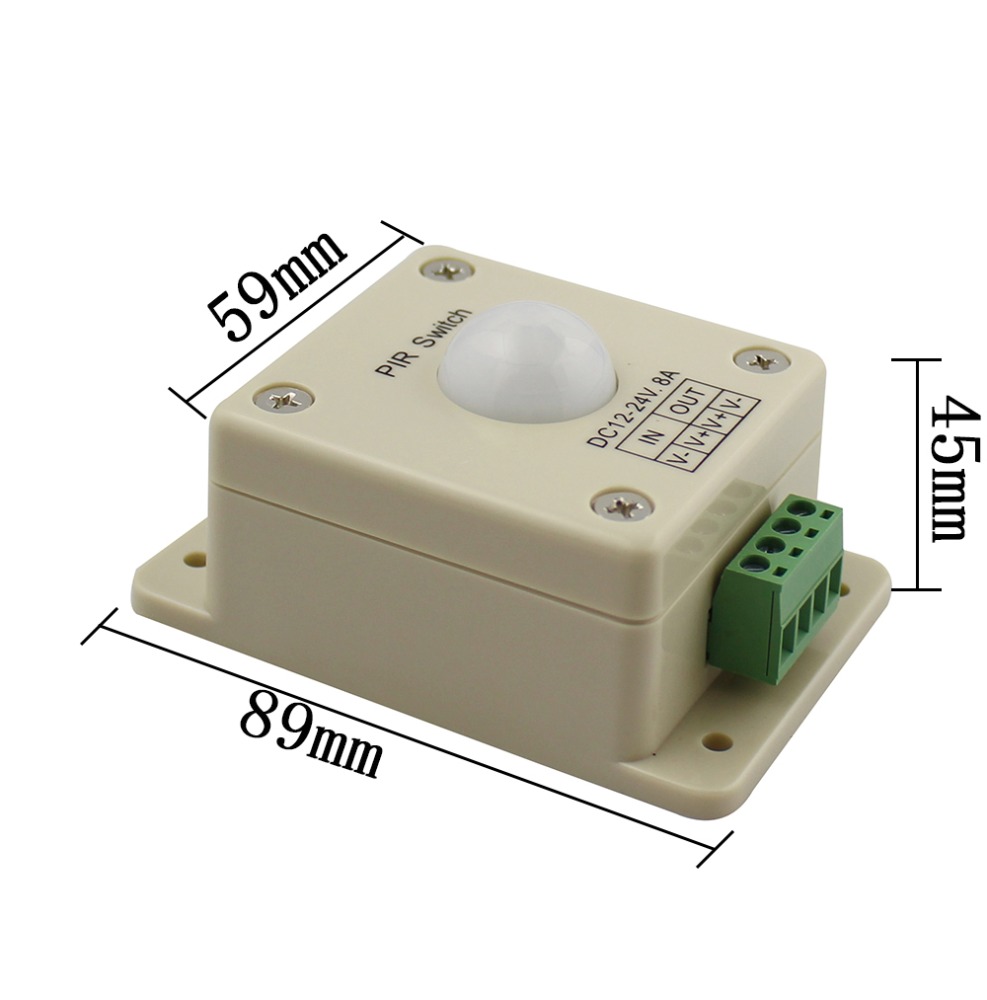

- External dimension: L89Χ W59Χ H45 m
- Net weight: 70g
