- Place of Origin:
- Guangdong, China
- Brand Name:
- greenlantern
- Type:
- Remote Control
- Max. Load Power:
- 360W
- Voltage:
- DC5-24V
- Model Number:
- led DC5-24V 30A Led RGB Amplifier Controller
- Use:
- Universal
- Power Source:
- DC
- Applicable Lights:
- No
- Connection Mode:
- common anode
- Certification:
- CE,RoHS
- Material:
- Plastic
- Features:
- RGB LED amplifier
- is_customized:
- Yes
- Output:
- 4 circuit
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- carton box
- Port
- shenzhen
- Lead Time:
Quantity(Pieces) 1 - 200 >200 Est. Time(days) 3 To be negotiated
led DC5-24V 30A Led RGB Amplifier Controller
High speed large current power amplifier, suit for PWM control led controller, it can amplify the power of LED controller, each time add one amplifier, the connecting number of led will be more than twice to three times, and can cascade, in theory, numerous amplifiers can be connected. It is convenience for different voltage, high power and small power LED lamps and lanterns unified control. Whether our company"s products or any other company"s products, as long as it is PWM control, voltage appropriate, all can use this series power amplifier. Using high speed light lotus root design, can achieve very low delay time, to ensure that when many sets of cascade, it can keep pace with host.

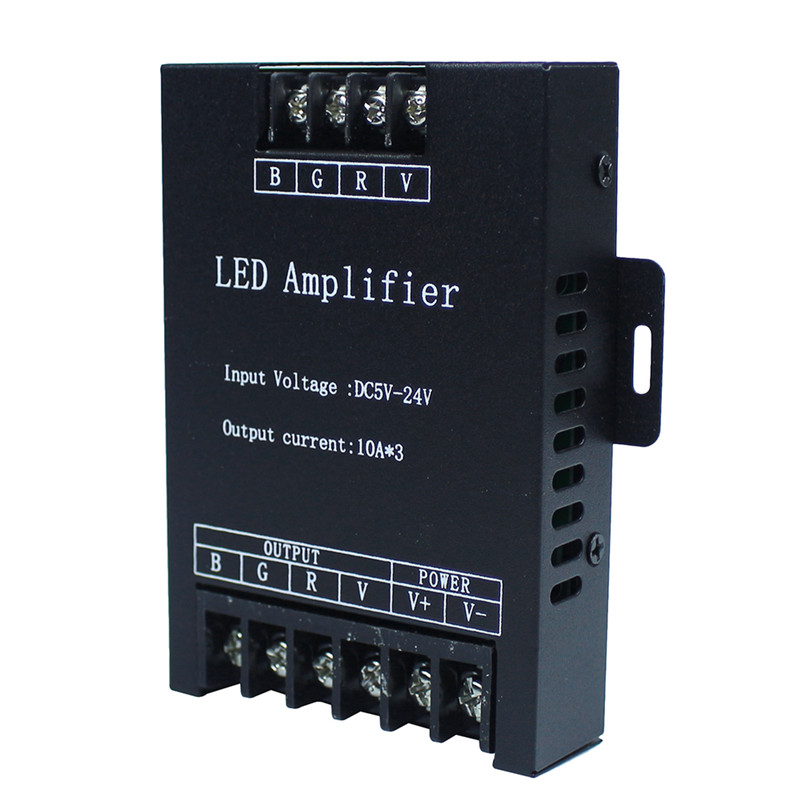

Interface instruction:
RGB signal control port: Power and load output port:
1: Common anode public pole 5: B channel load output cathode
2: R channel input signal cathode 6: G channel load output cathode
3: G channel input signal cathode 7: R channel load output cathode
4: B channel input signal cathode 8: Load output common anode public pole
9: Power supply input voltage anode
10: Power supply input voltage cathode
Specification:
- working temperature: -20 to 60 degree
- supply voltage: DC5V-24V
- output: 4 circuit
- connection mode: common anode
- product dimension:L110*W95*H20mm
- MAX. output power: max 150W(5V),max 360W(12V), max 720W(24V)
- Dimming range: 0.1%-100%
Package included:
1 pcs RGB Led Amplifier
