- Place of Origin:
- Guangdong, China
- Brand Name:
- Green Lantern
- Model Number:
- GL-LED-DIP-F5-R
- Type:
- LED
- Package Type:
- Through Hole
- Max. Forward Voltage:
- 3.2
- Max. Reverse Voltage:
- 5
- Max. Forward Current:
- 20mA
- Max. Reverse Current:
- 1uA
- light color:
- red/white/warm white/green/bule /yellow/rgb
- Supply Ability:
- 6000000 Piece/Pieces per Day
- Packaging Details
- standard package
- Port
- Shenzhen

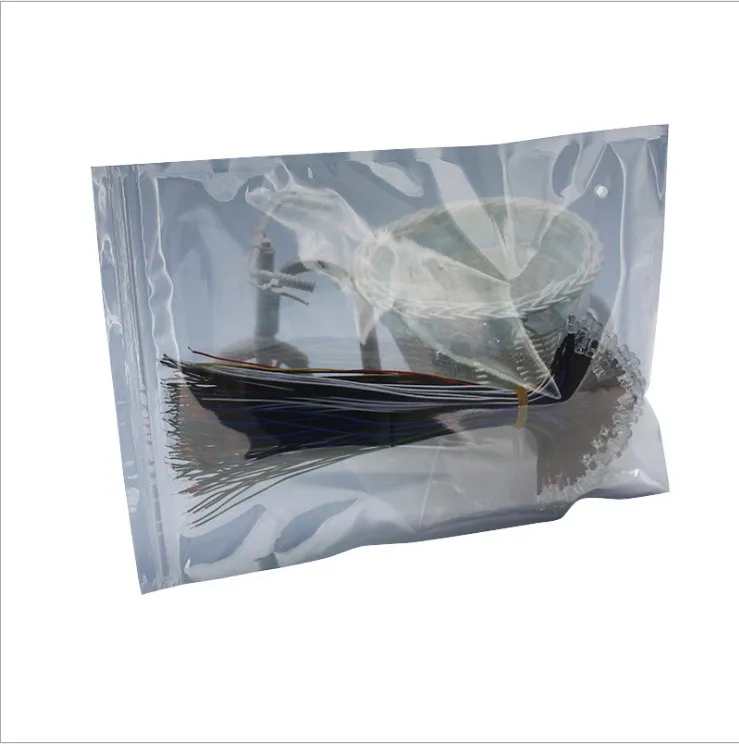

- Picture Example:
![package-img]()
5mm 12V LED Pre Wired Prewired 20cm Bulb Lamp For DIY Car Boat Toys Flashing Party lighting project Red
5mm Prewired LED with Chrome Bezel Holder 12V
5mm Prewired LED with Plastic Bezel Holder 12V

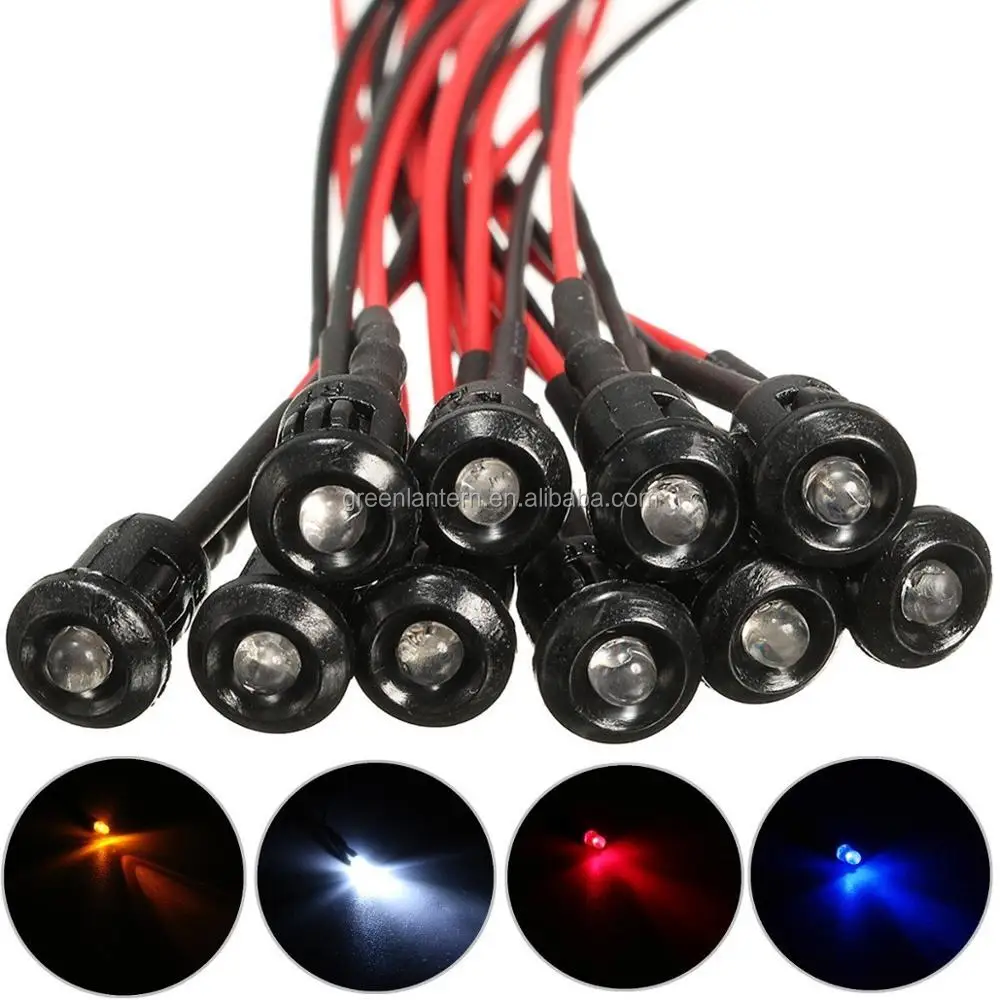

3mm Prewired LED with Plastic Bezel Holder 12V
Product Features:
5mm LED white LEDs pre wired Technical Parameter
Part No. | Emitted Color | WD(nm)/ CCT(K) | Lens Color | Vf(V) IF=@20mA | Iv(mcd) IF=@20mA | Viewing Angle | ||
Typ | Max | Min | Typ | |||||
GL-LED-5MM-R | Red | 625 |
Water clear | 2.0 | 2.4 | 3000 | 5000 | 30 |
GL-LED-5MM-O | Orange | 610 | 2.0 | 2.4 | 2000 | 3000 | 30 | |
GL-LED-5MM-Y | Yellow | 589 | 2.0 | 2.4 | 3000 | 5000 | 30 | |
GL-LED-5MM-Y | Yellow | 570 | 2.0 | 2.4 | 200 | 500 | 30 | |
GL-LED-5MM-G | Green | 525 | 3.2 | 3.6 | 8000 | 15000 | 30 | |
GL-LED-5MM-B | Blue | 470 | 3.2 | 3.6 | 3000 | 5000 | 30 | |
GL-LED-5MM-CW | Cool white | 10000 | 3.2 | 3.6 | 8000 | 12000 | 30 | |
GL-LED-5MM-W | White | 6500 | 3.2 | 3.6 | 8000 | 12000 | 30 | |
GL-LED-5MM-WW | Warm white | 3000 | Water clear | 3.2 | 3.6 | 7000 | 10000 | 30 |

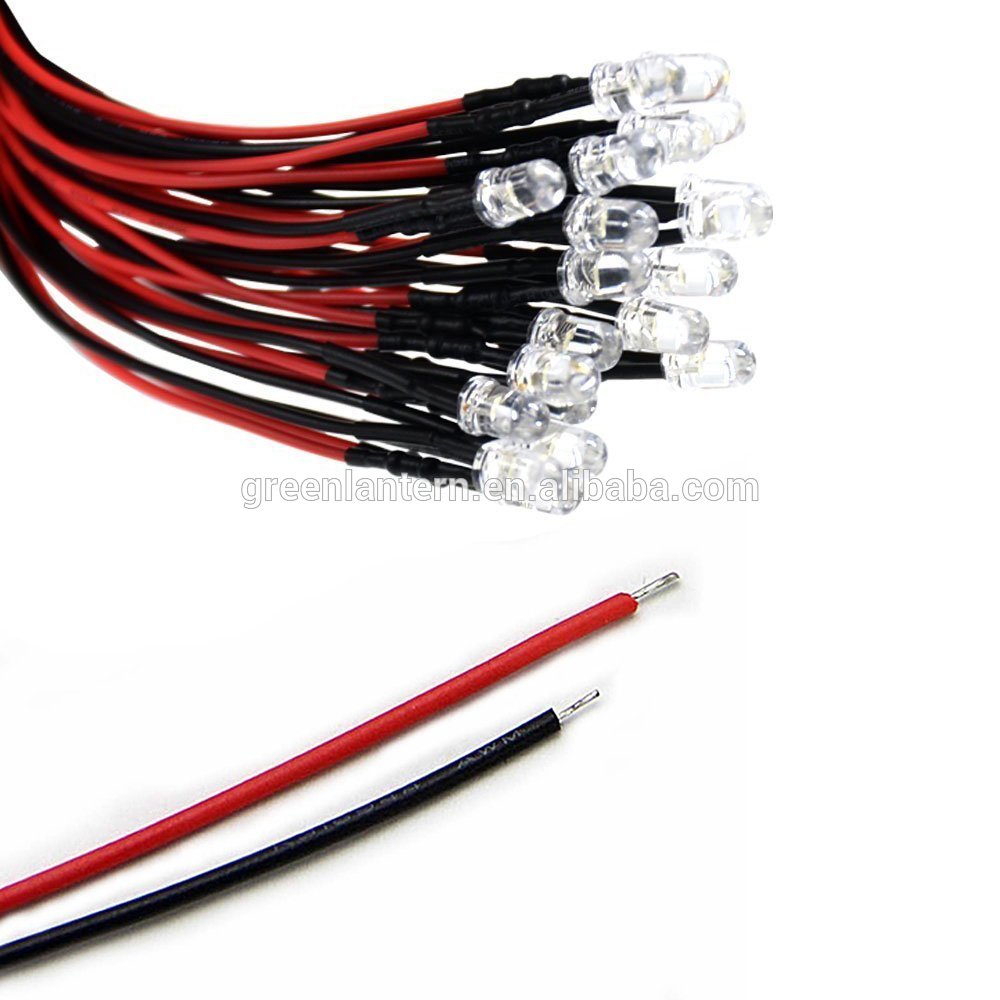

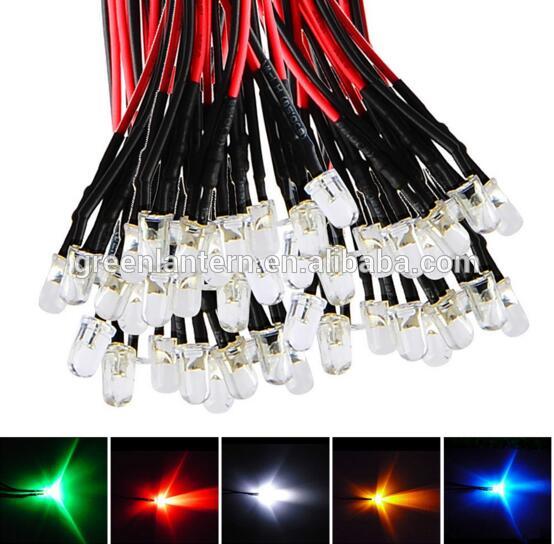

5MM 5mm LED white LEDs pre wired Picture :
5mm LED white LEDs pre wired Application:
- Indoor and outdoor commerical lighting
- General lighting
- Automotive lights
- LCD TU/monitor backlights
- LED display
- Traffic Light
Specifications of Pre-wired LED:
- Built -in resistor for high voltage operation;
- Color of wires:Red&black;
- Length of wires:10cm/20cm from both pin or design as customer required;
- light source:Super bright 5mm/3mm Round LED;
- Packing:100 PCS/Bundle,1000PCS make a small carton;
- The Diameter of the LED and the length of the wires can be customized
- These pre-wired 5mm waterclear LEDs are designed for direct connection to a 12 volt power supply without the need for a resistor to be wired in series. (resistor is fitted)
- The pre-soldered wires are 200mm long and are coloured red and black for easy polarity identification.
