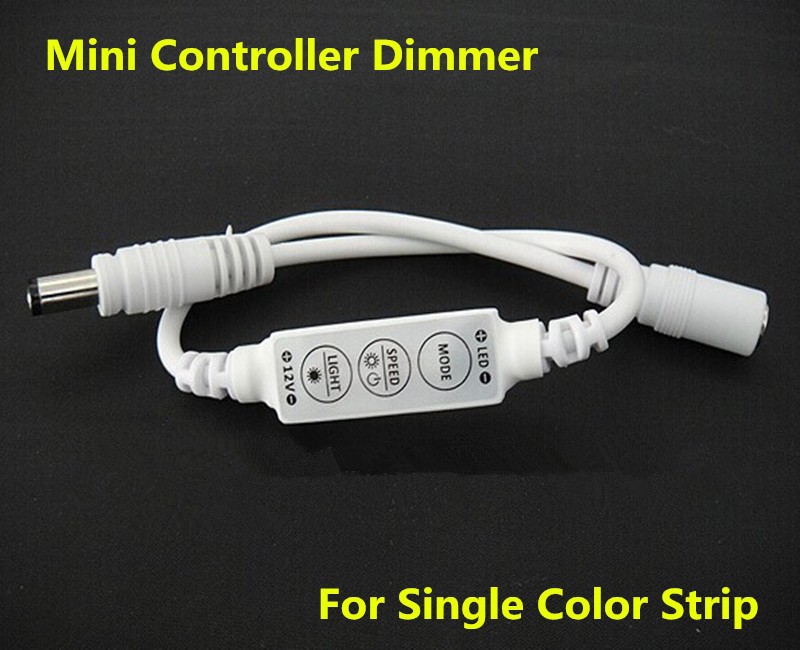

New Arrival Mini 3 Key Single Color 5050 3528 LED Strip Light Brightness Dimmer Controller Adapter 6A DC12V 24V
Keys Function(mini 3 keys)
1. Mode Key:
control dynamic modes.
2. Light Key:
control static colors ,
3. Speed key:
Function adjustment key, it can adjust the speed level of the dynamic modes
and the brightness level of the static colors
4. Speed key:
press it over 1 second, it will be OFF/ON
Specifications:

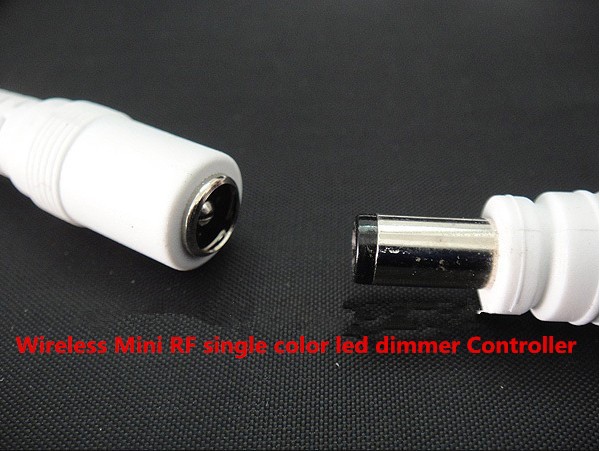

mini 3 keys led dimmer 12v controller with DC connector
Working Voltage | DC12-24V |
Dynamic modes | 6 modes |
Static Colors | 8 colors |
Application | 15m 3528-60leds led strip or 5m 5050-60leds |
Max current | 6A |
Product size | 42*15*5MM |
Connect method | common anode |
Channel | 1 channel |
Max load | 12V< 72W (6a), 24V<72w (3a) |
